Body - Interior & Exterior: Add-A-Trunk: Removal

  1. Release latches under trunk panel and lift panel up.
  2. Remove bolts attaching trunk to inner body panel.

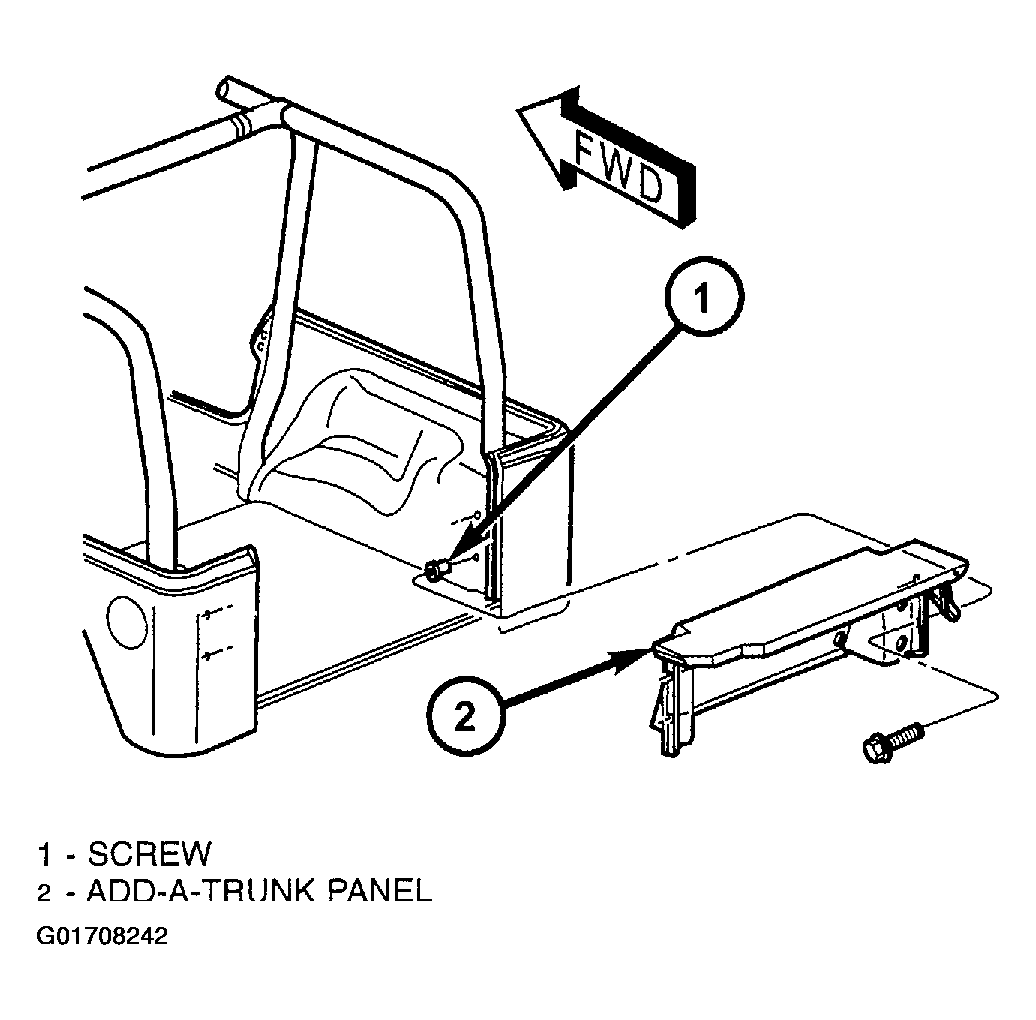

    Fig 1: Removing Add-A-Trunk
    G01708242Courtesy of DAIMLERCHRYSLER CORP.
  3. Separate trunk from vehicle.
