Fuel Pump Module Connector End View
Fuel Pump Module Connector End View

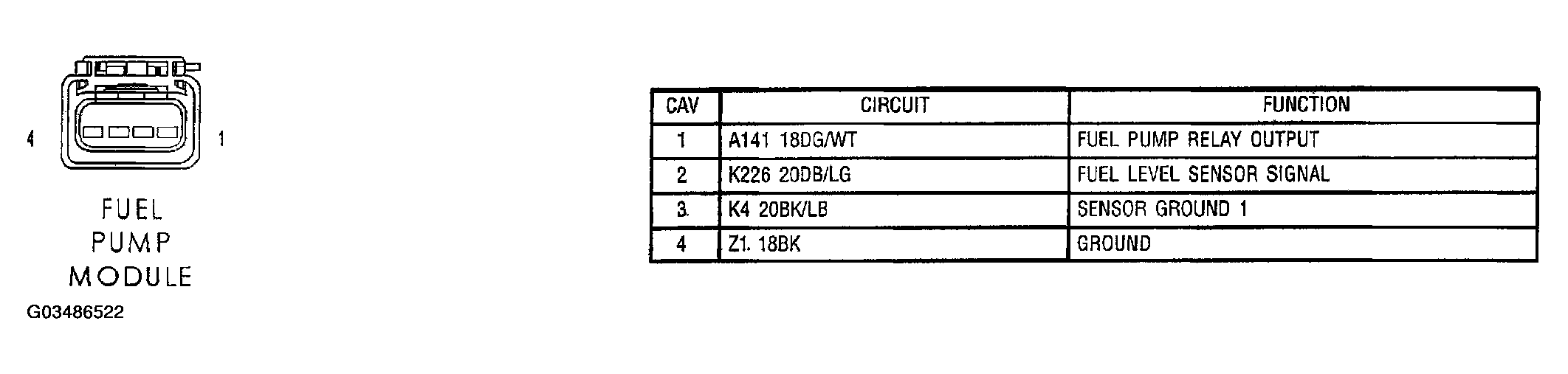

Fig 1: Fuel Pump Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
