DTC P1687: No Cluster Bus Message: Testing

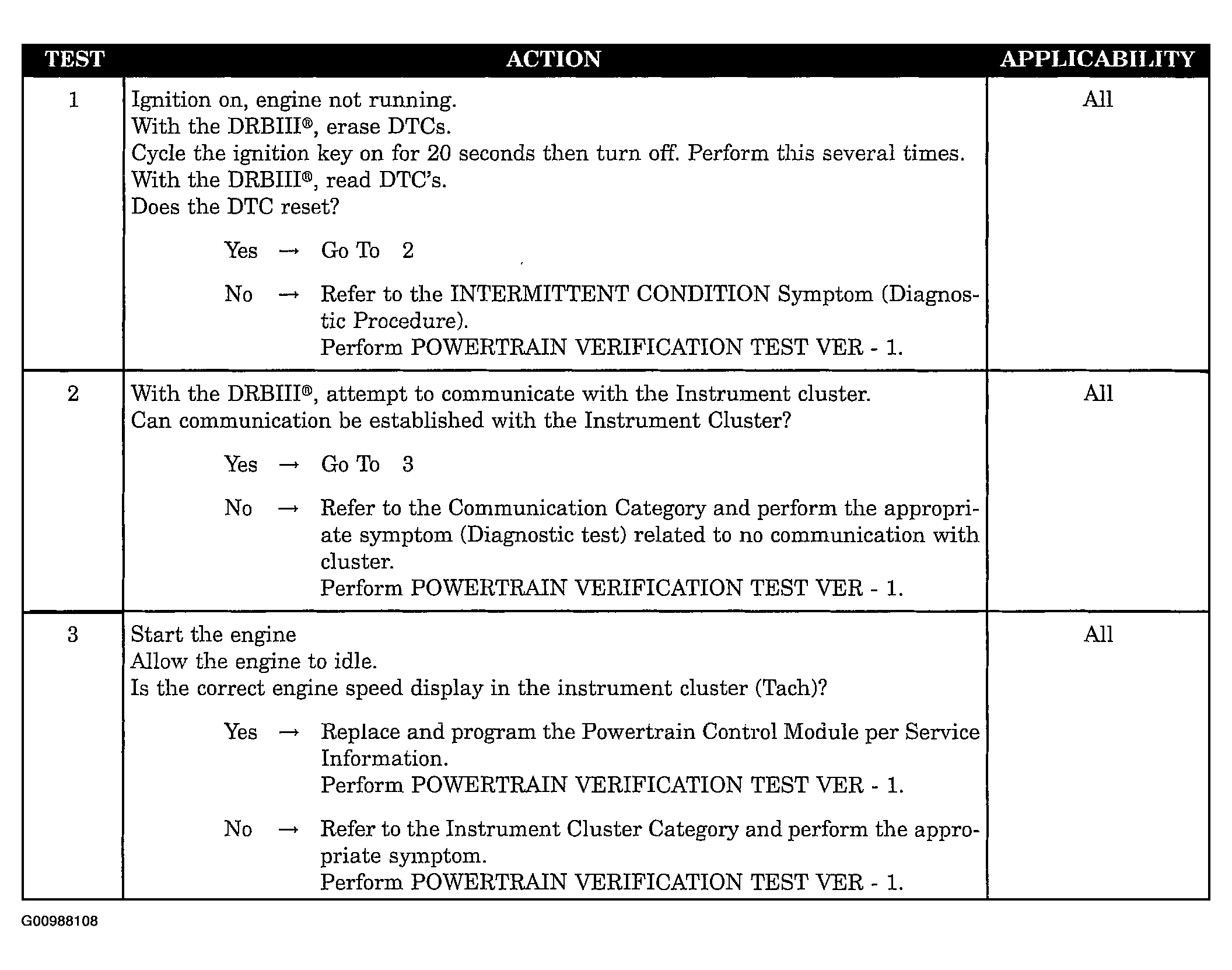

Fig 1: Testing: DTC P1687: No Cluster BUS Message

G00988108

Courtesy of DAIMLERCHRYSLER CORP.
