DTC P1491: Cooling Fan Relay Control Circuit: Testing

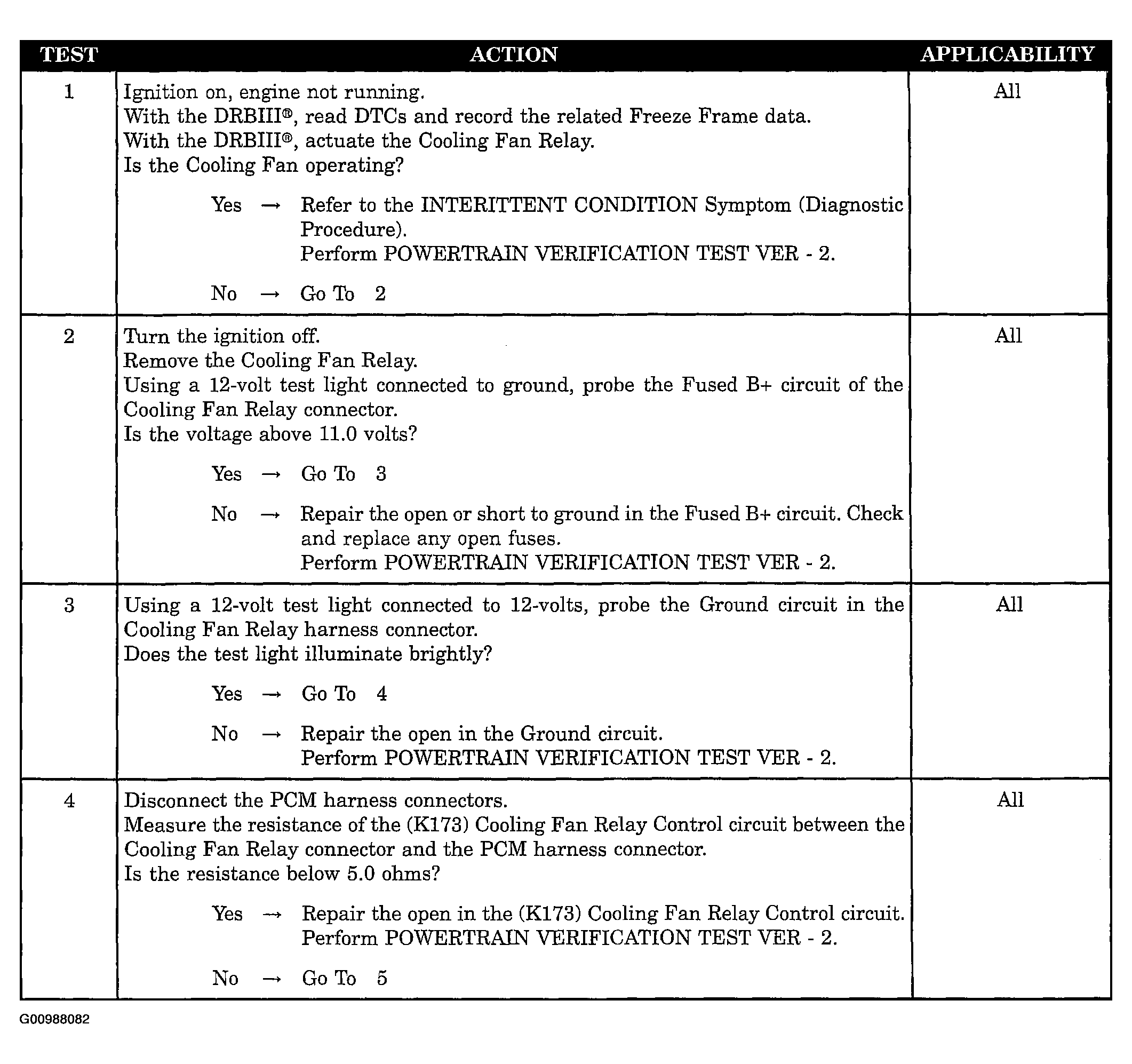

Fig 1: Testing: DTC P1491: Cooling Fan Relay Control Circuit (1 Of 2)
G00988082Courtesy of DAIMLERCHRYSLER CORP.

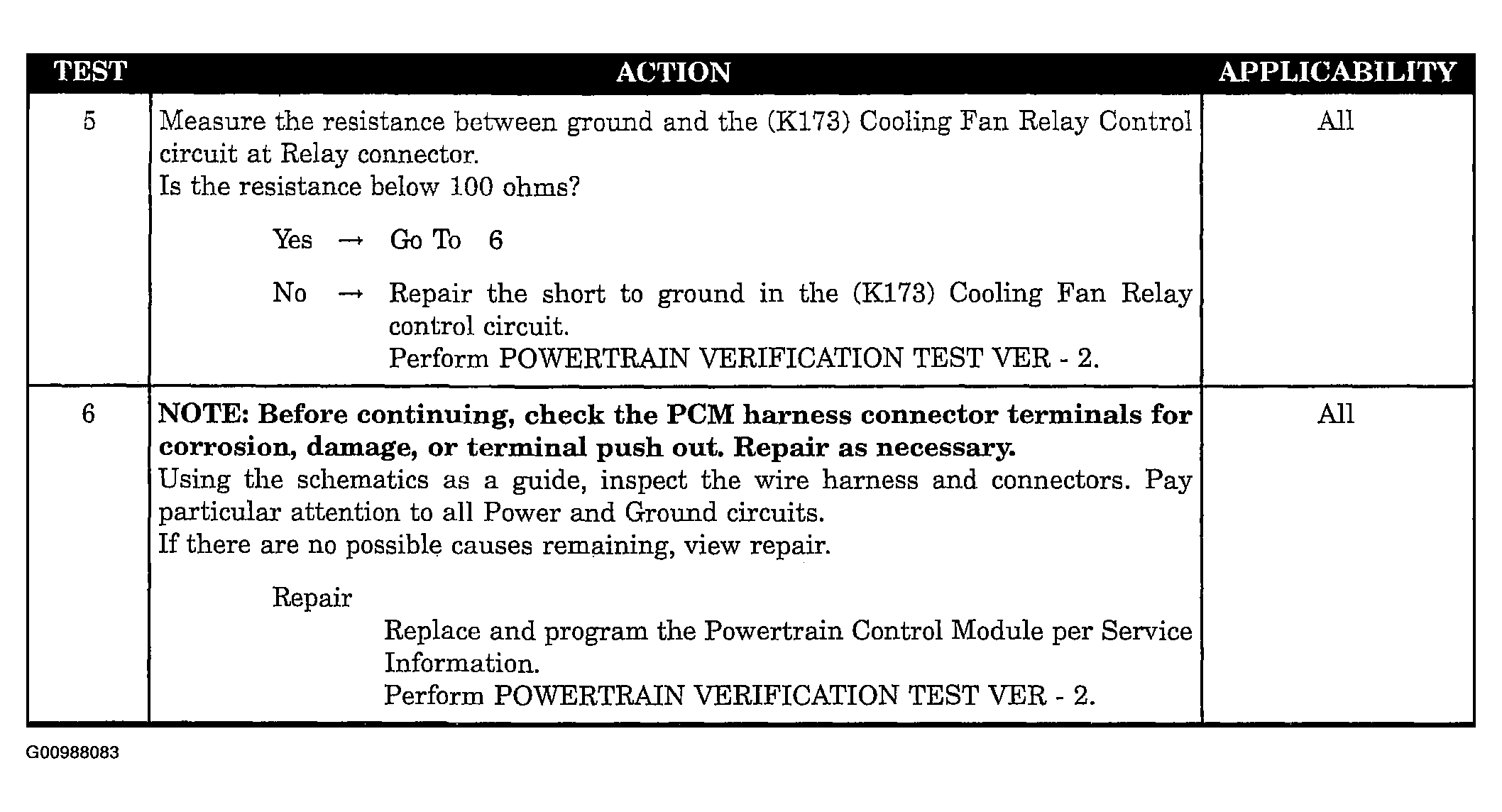

Fig 2: Testing: DTC P1491: Cooling Fan Relay Control Circuit (2 Of 2)
G00988083Courtesy of DAIMLERCHRYSLER CORP.
