DTC P1490: Low Speed Fan Relay Control Circuit: Testing

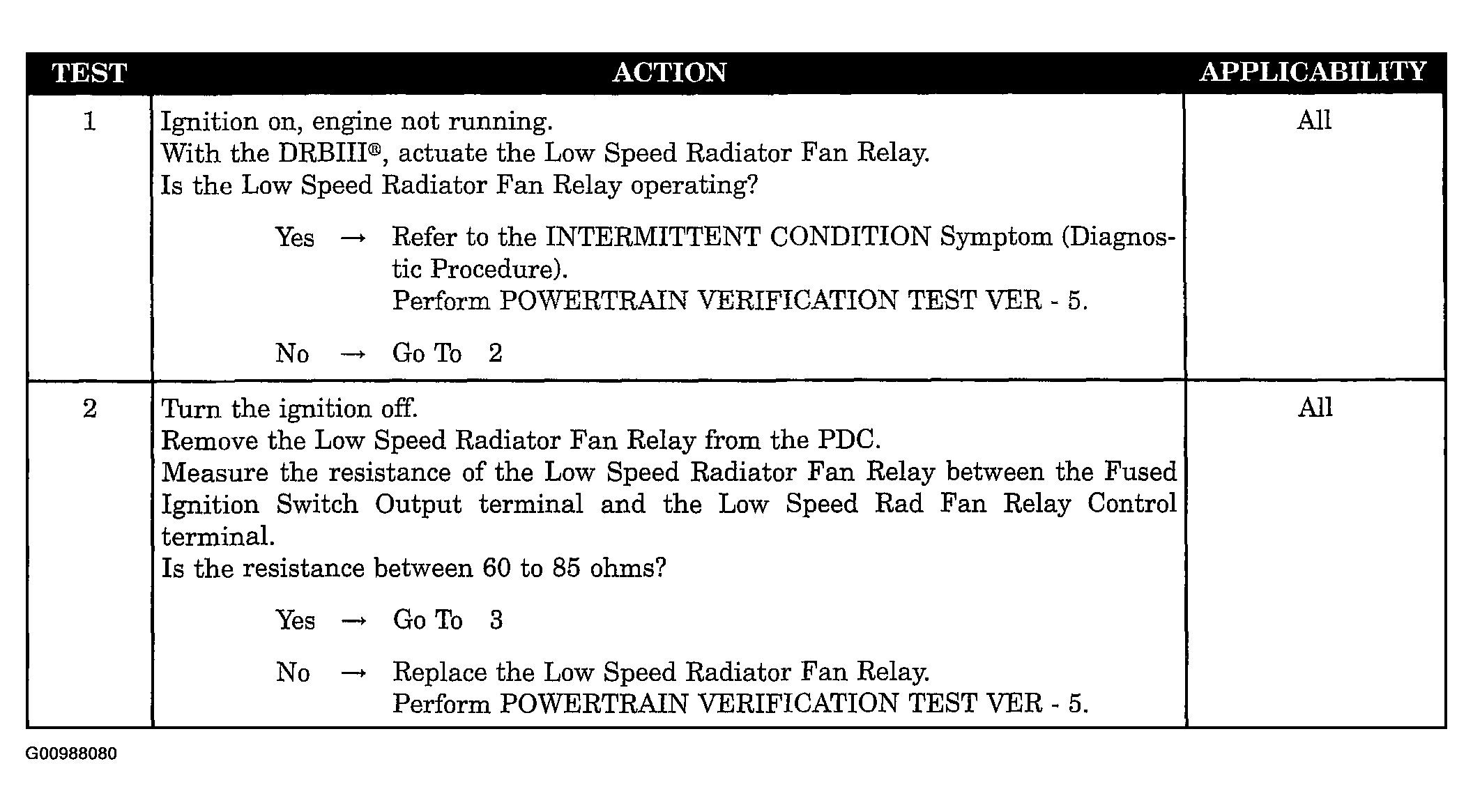

Fig 1: Testing: DTC P1490: Low Speed Fan Relay Control Circuit (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

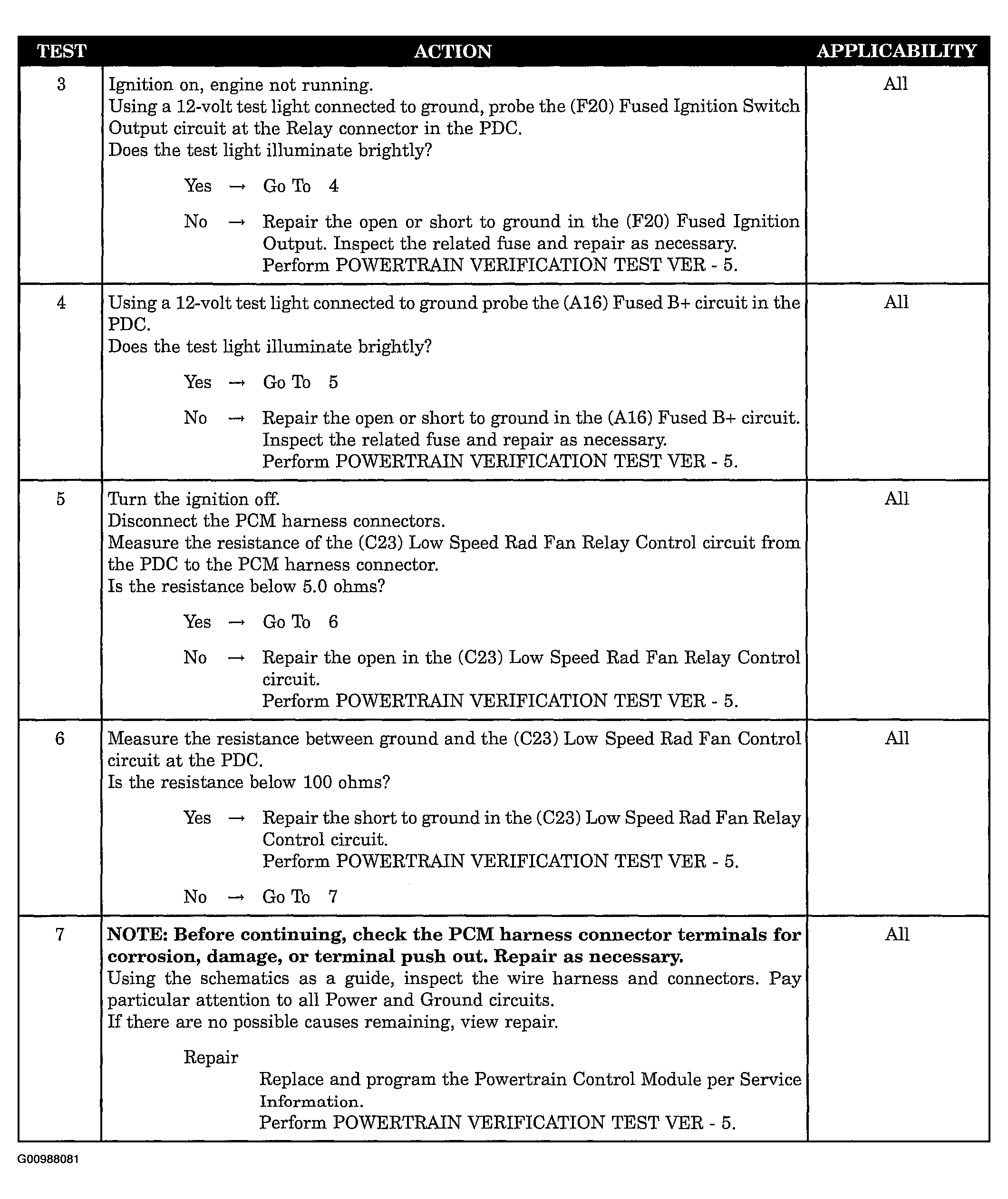

Fig 2: Testing: DTC P1490: Low Speed Fan Relay Control Circuit (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
