DTC P0505: Idle Air Control Motor Circuits: Testing

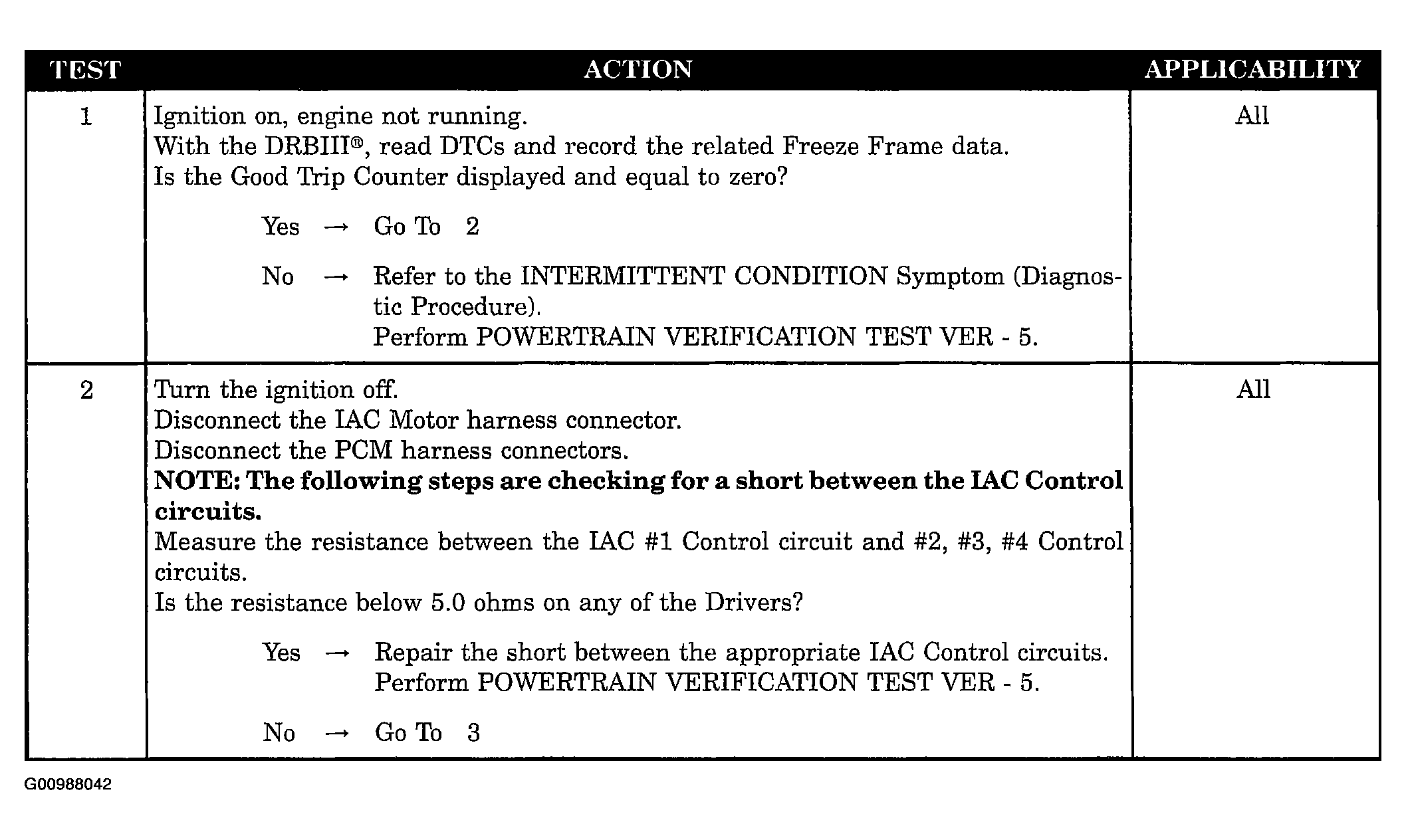

Fig 1: DTC P0505: Idle Air Control Motor Circuits (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

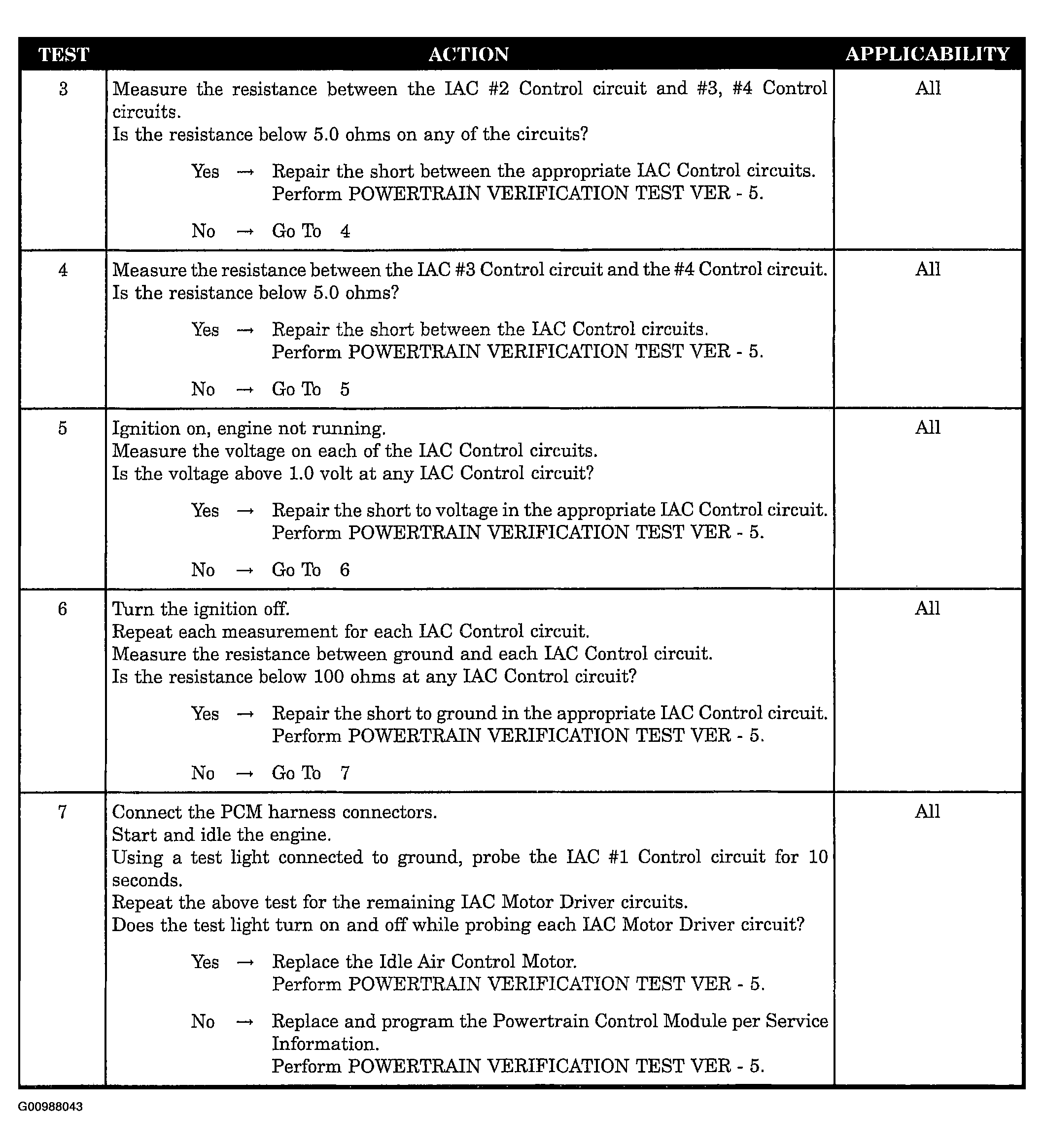

Fig 2: DTC P0505: Idle Air Control Motor Circuits (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
