DTC P0441: EVAP Purge Flow Monitor: Testing

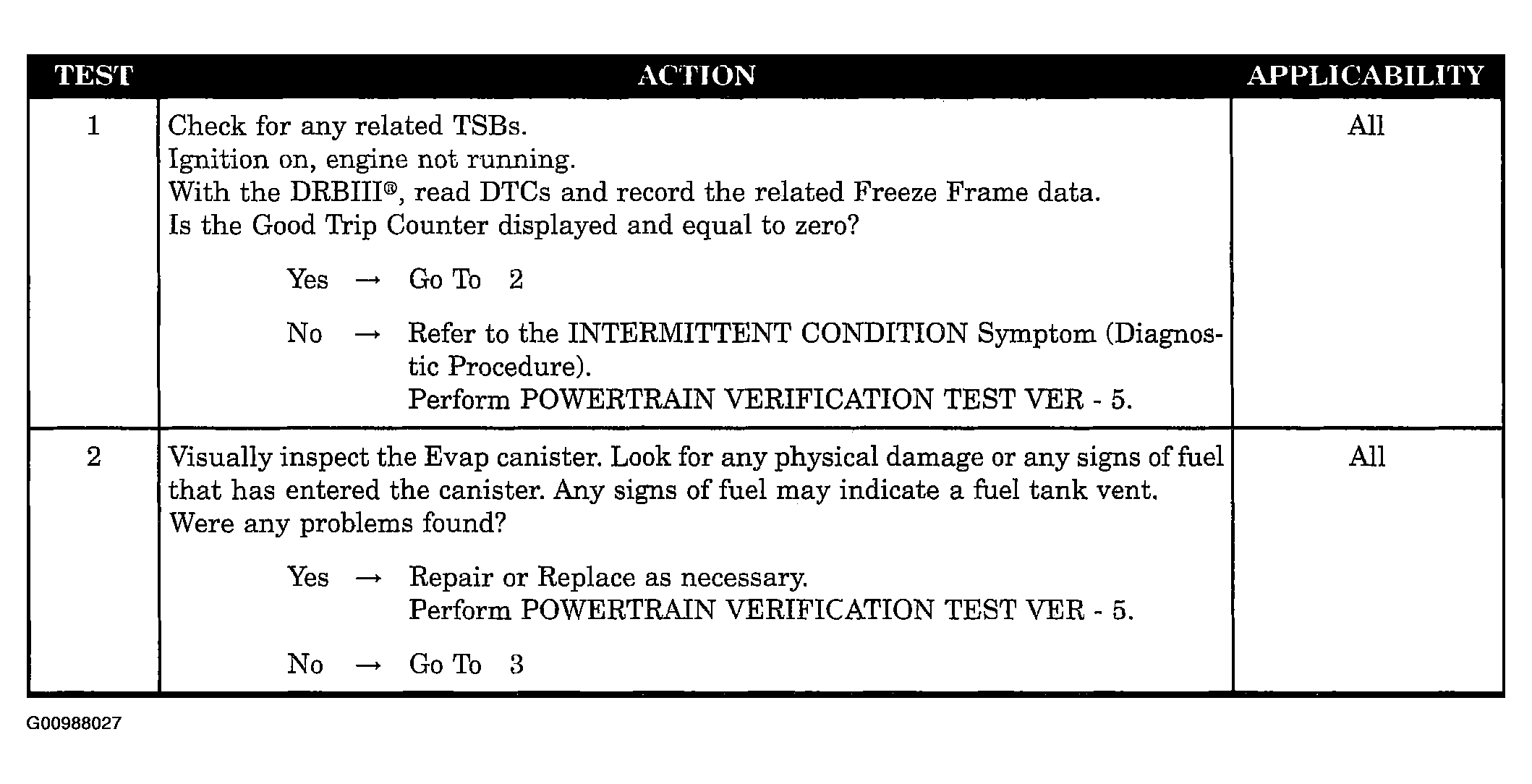

Fig 1: Testing: DTC P0441: EVAP Purge Flow Monitor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

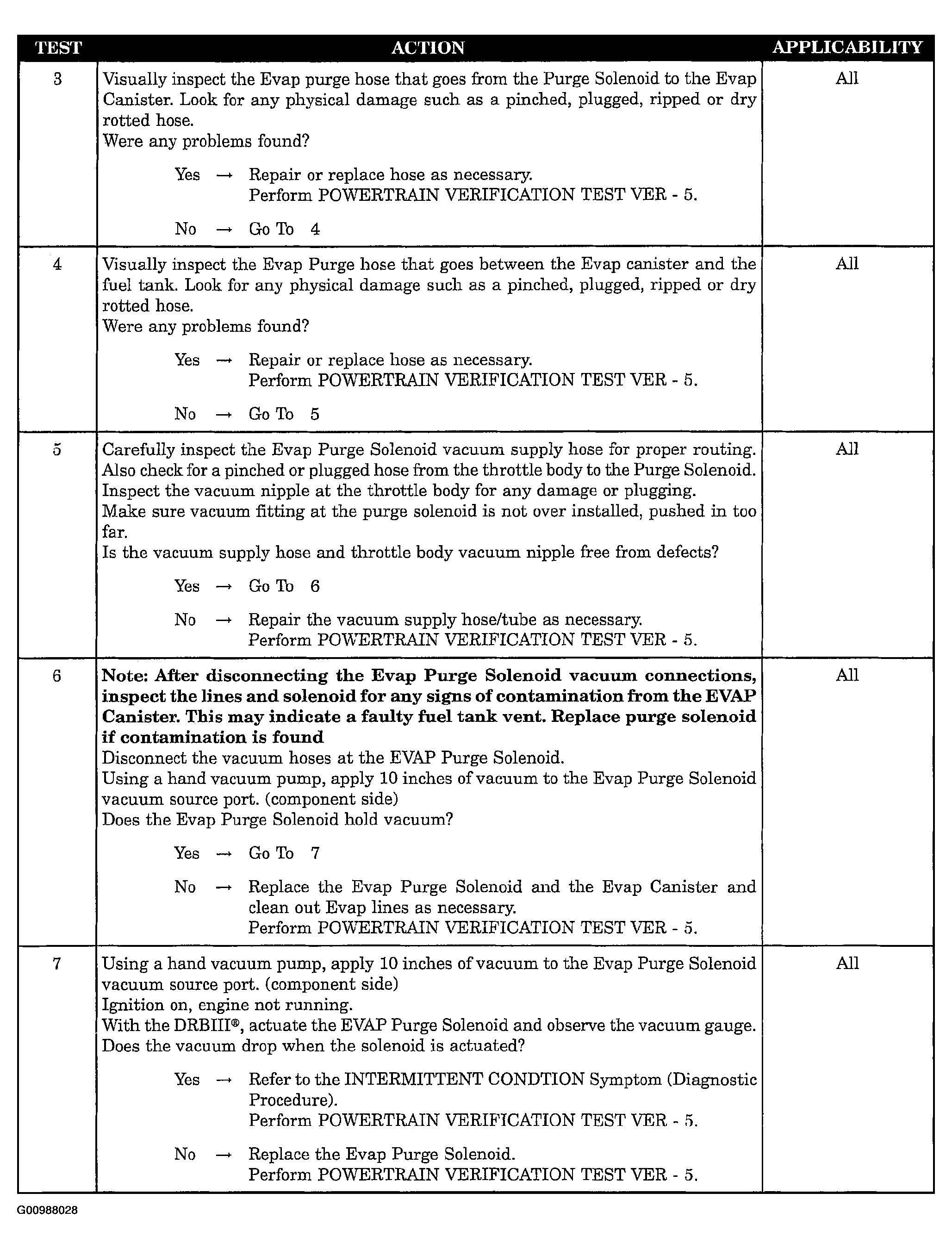

Fig 2: Testing: DTC P0441: EVAP Purge Flow Monitor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
