Oxygen Sensor Downstream Heater Relay

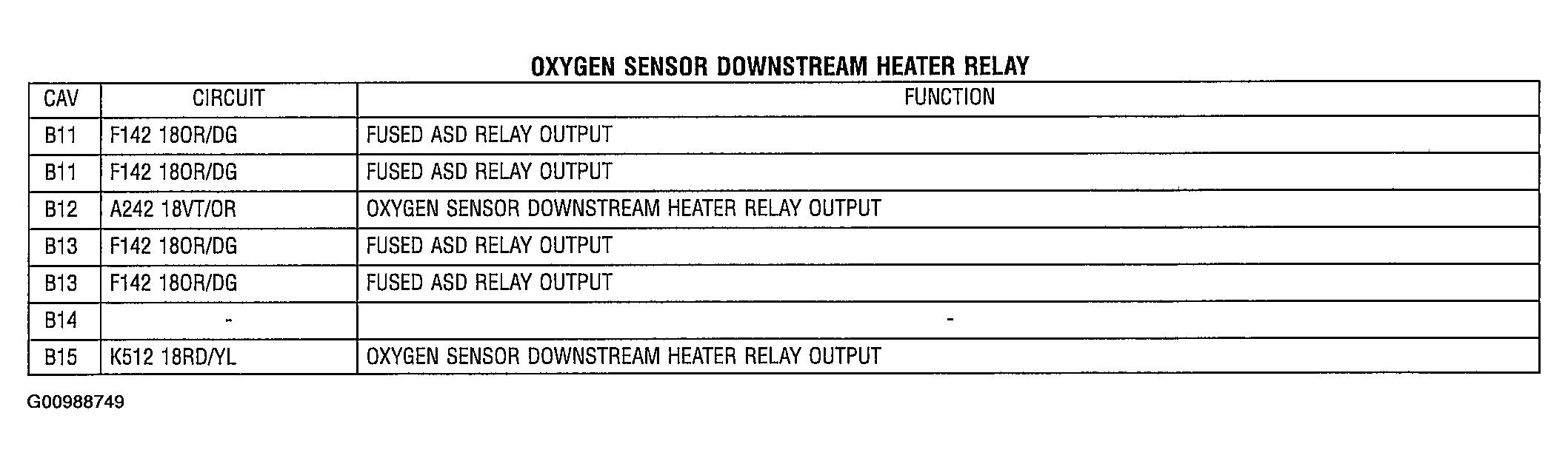

Fig 1: Identifying Oxygen Sensor Downstream Heater Relay

G00988749

Courtesy of DAIMLERCHRYSLER CORP.
