Sensors And Solenoids

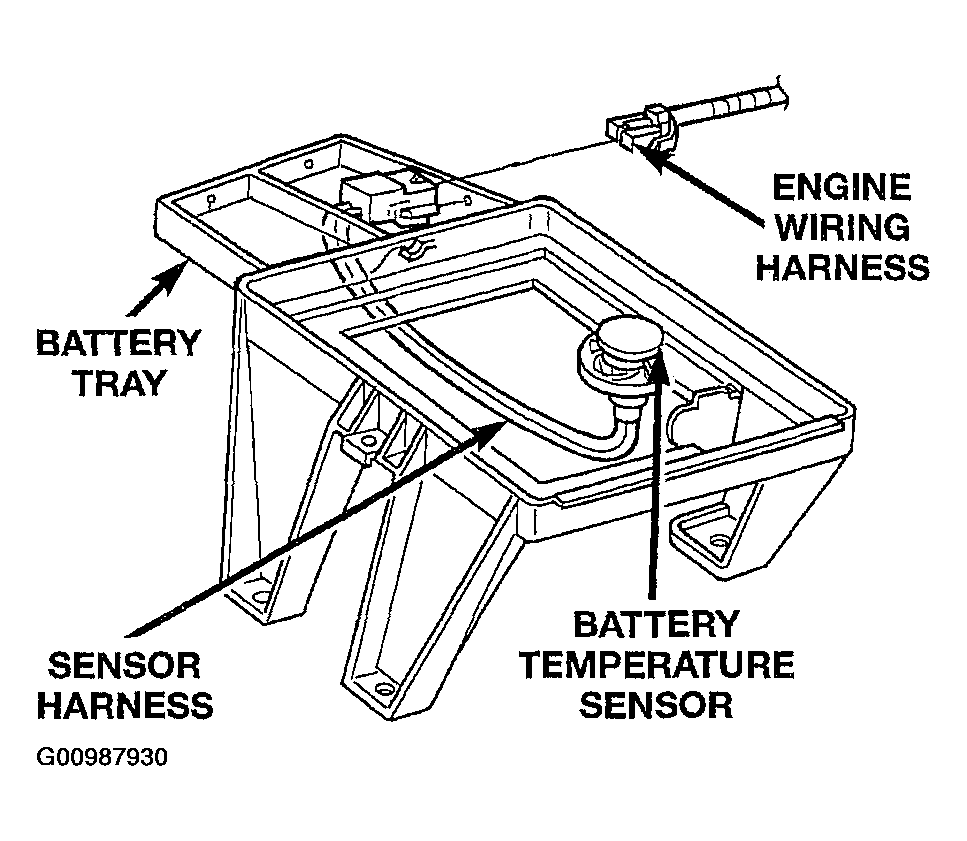

Fig 1: Locating Battery Tray, Sensor Harness, Battery Temperature Sensor & Engine Wiring Harness

Courtesy of DAIMLERCHRYSLER CORP.

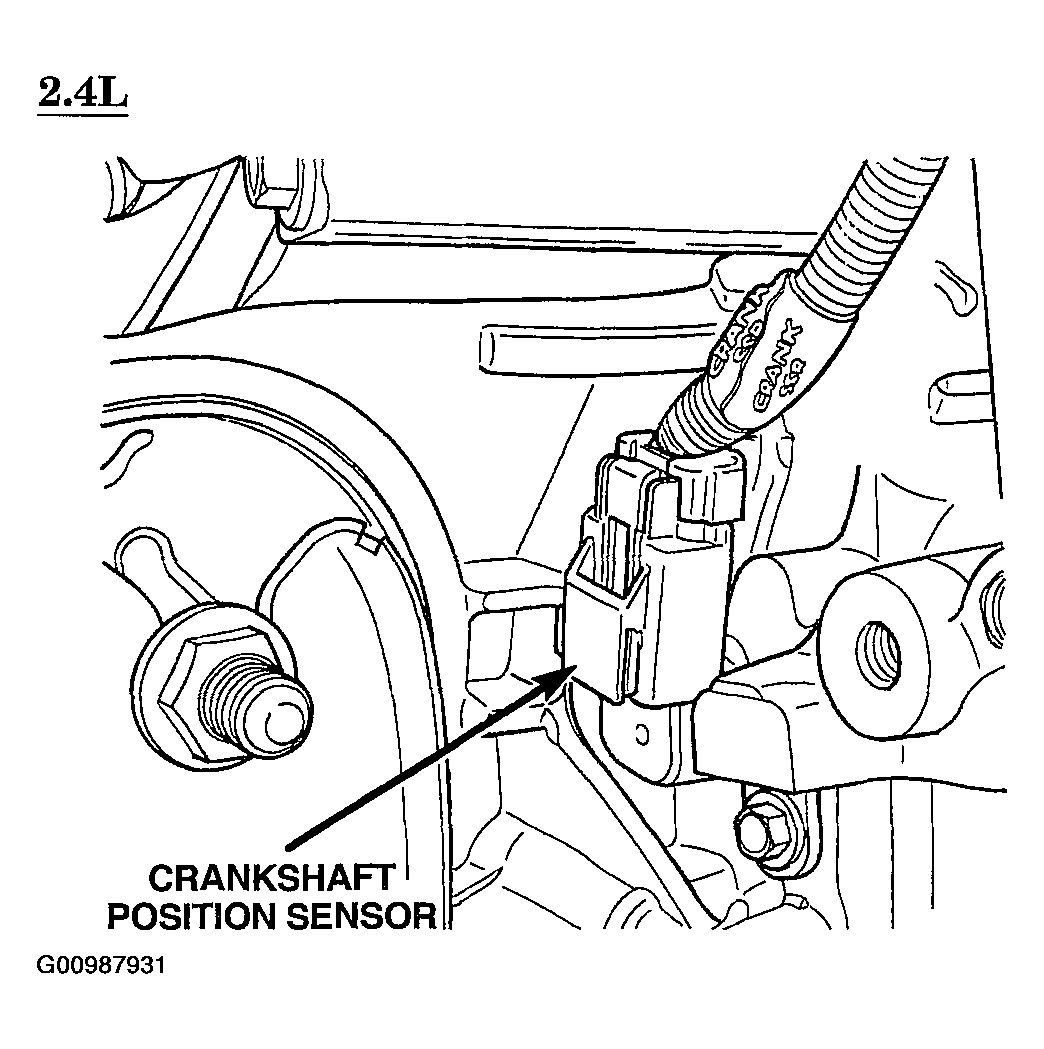

Fig 2: Locating Crankshaft Position Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

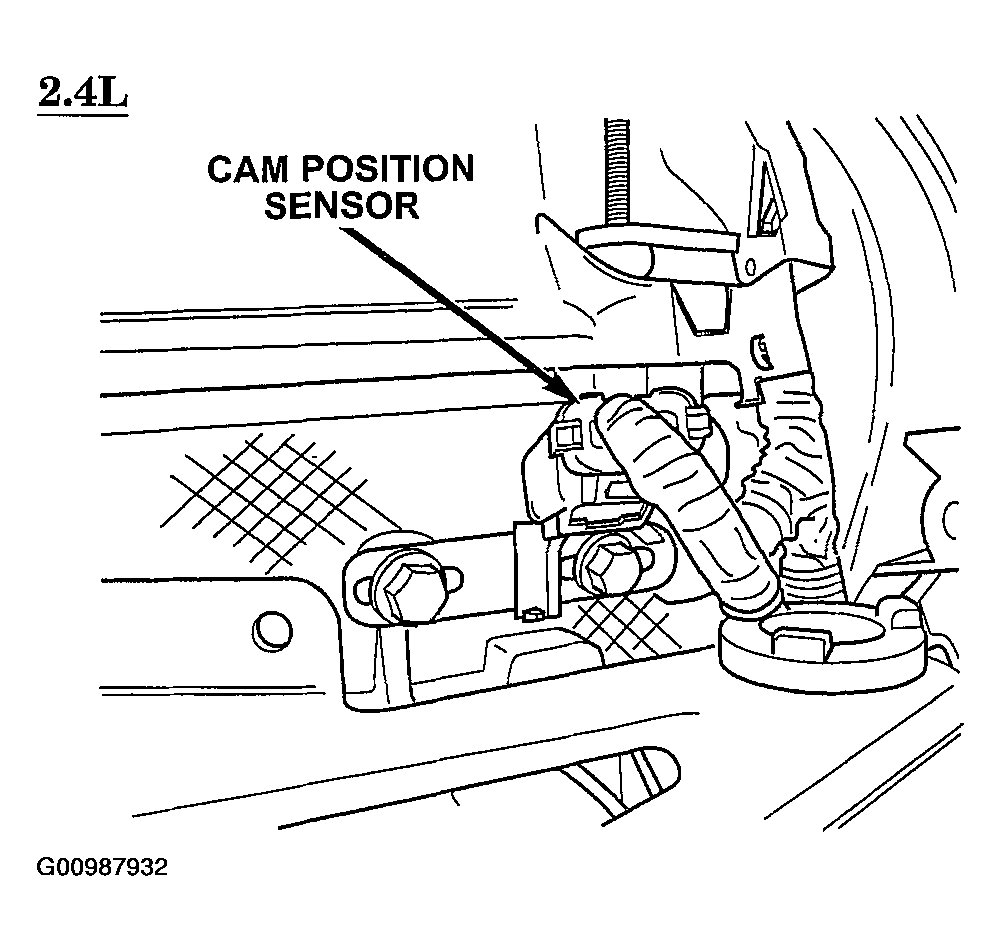

Fig 3: Locating Cam Position Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

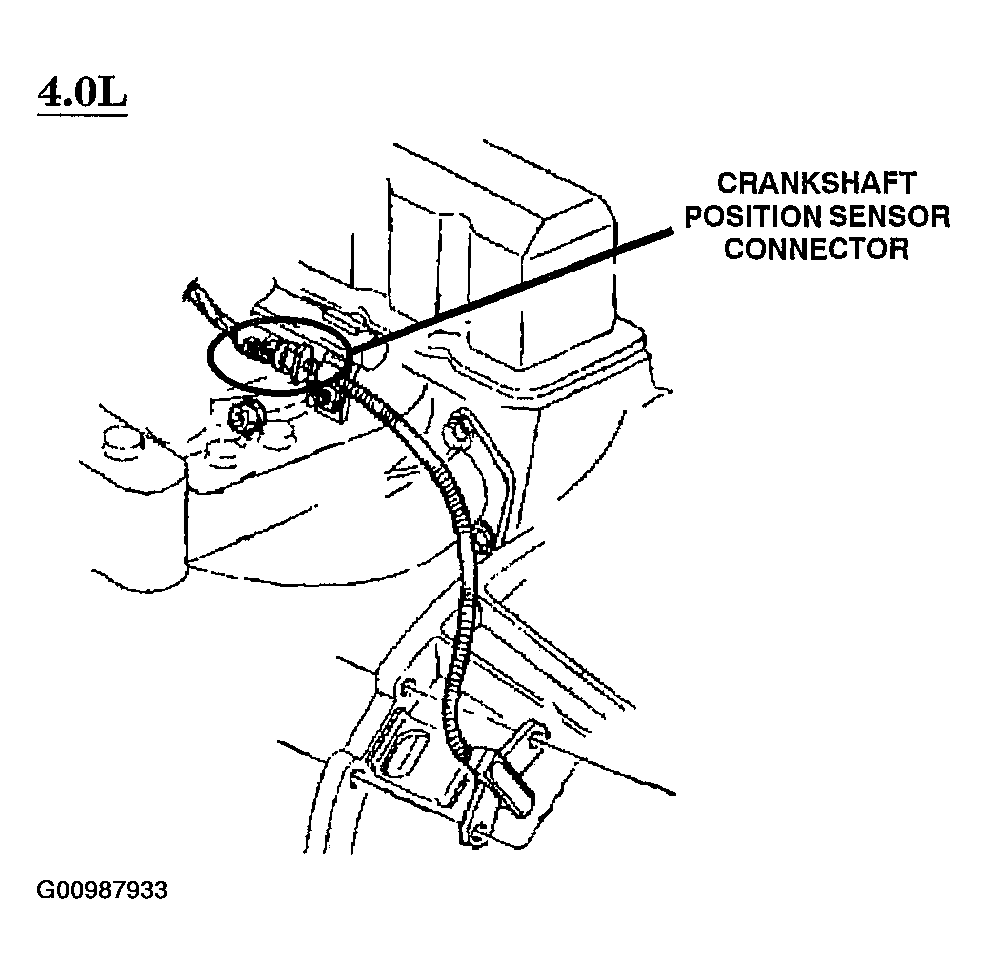

Fig 4: Locating Crankshaft Position Sensor Connector - 4.0L

Courtesy of DAIMLERCHRYSLER CORP.

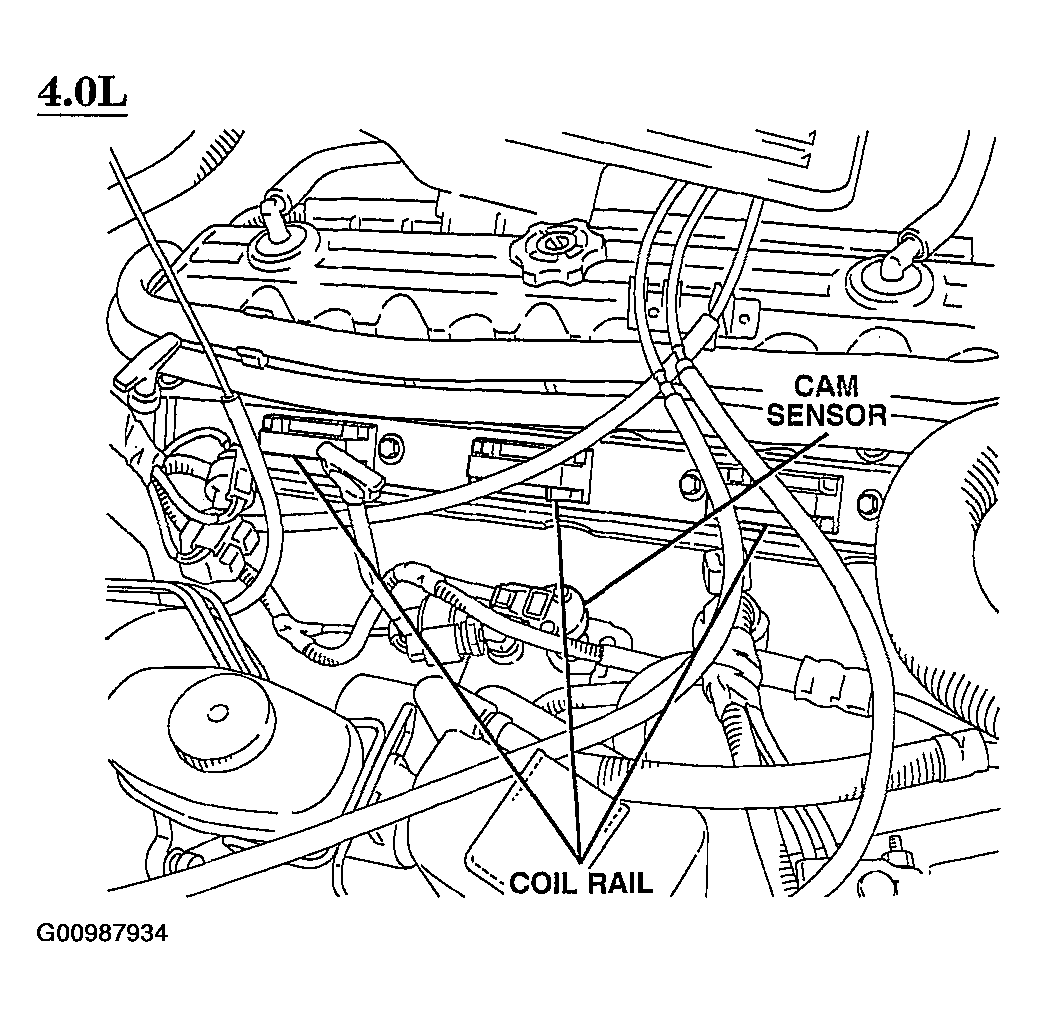

Fig 5: Locating Coil Rail & Cam Sensor 4.0L

Courtesy of DAIMLERCHRYSLER CORP.

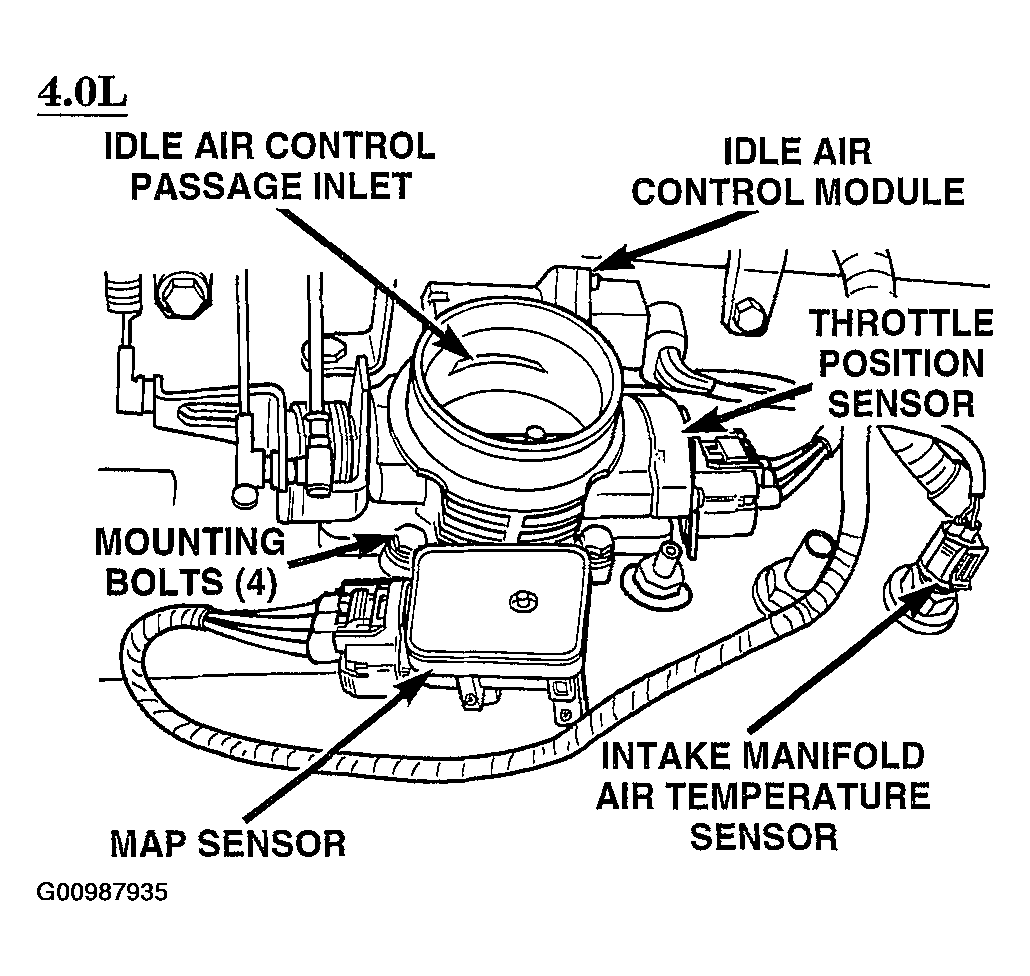

Fig 6: Locating Idle Air Control Passage Inlet, Idle Air Control Module, MAP Sensor, Intake Manifold Air Temperature Sensor & Throttle Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

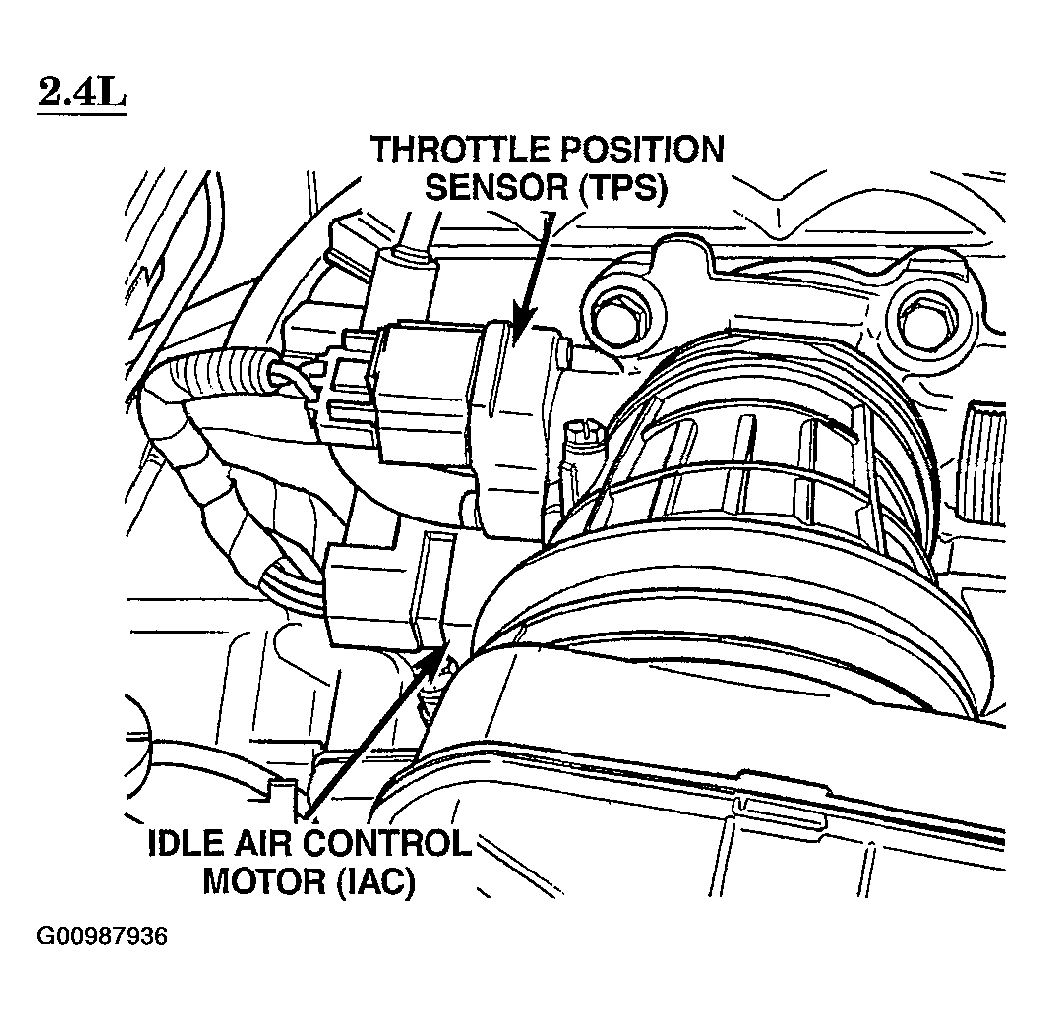

Fig 7: Locating Throttle Position Sensor (TPS) & Idle Air Control Motor (IAC) - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

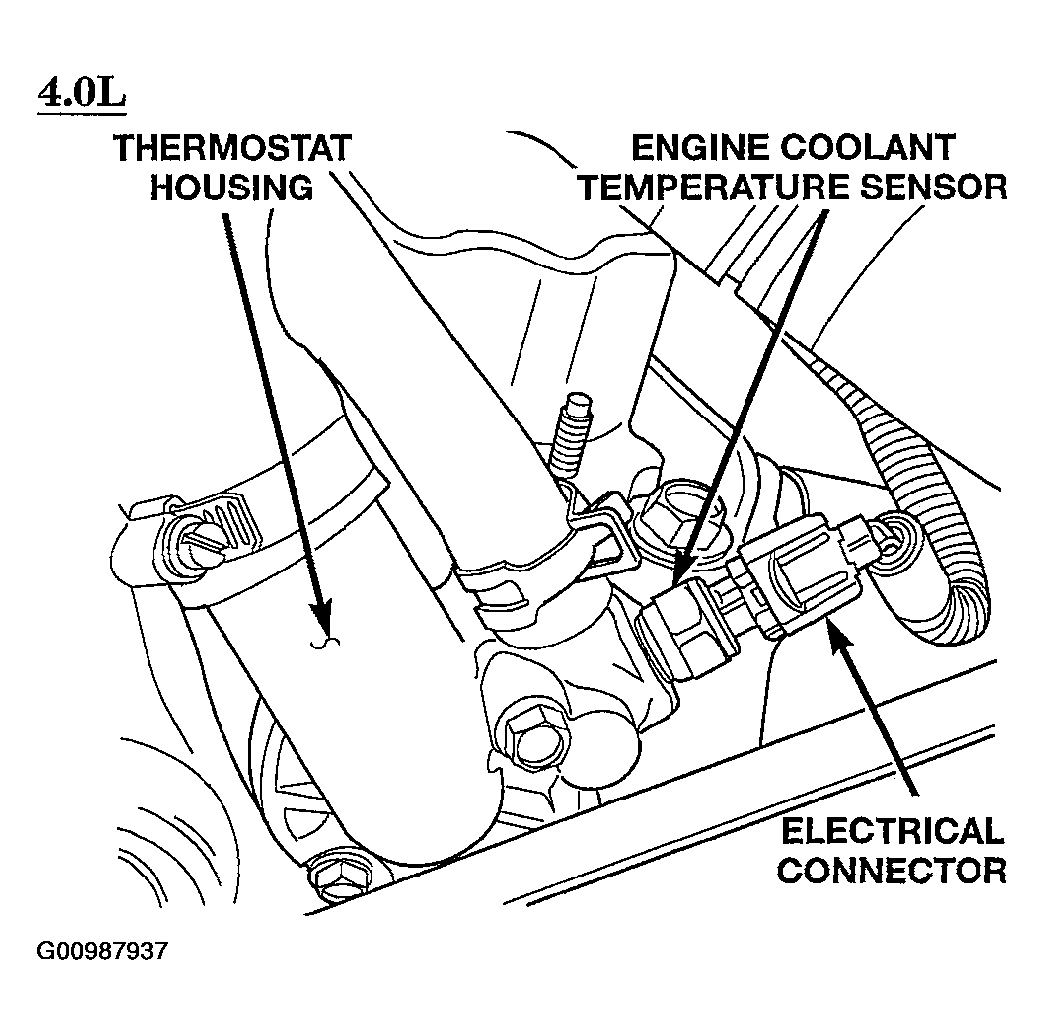

Fig 8: Locating Thermostat Housing & Engine Coolant Temperature Sensor - 4.0L

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Locating MAP Sensor - 4.0L

Courtesy of DAIMLERCHRYSLER CORP.

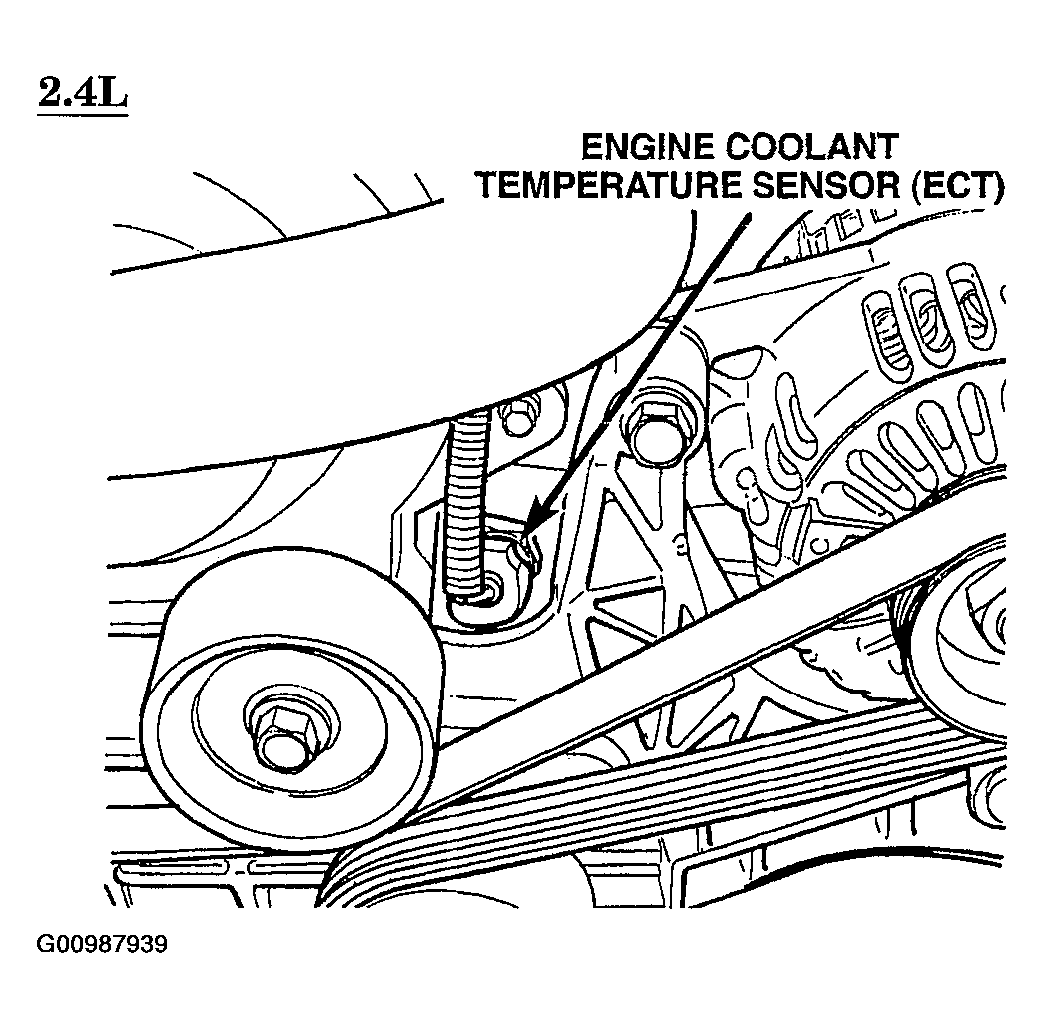

Fig 10: Locating Engine Coolant Temperature Sensor (ECT) - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

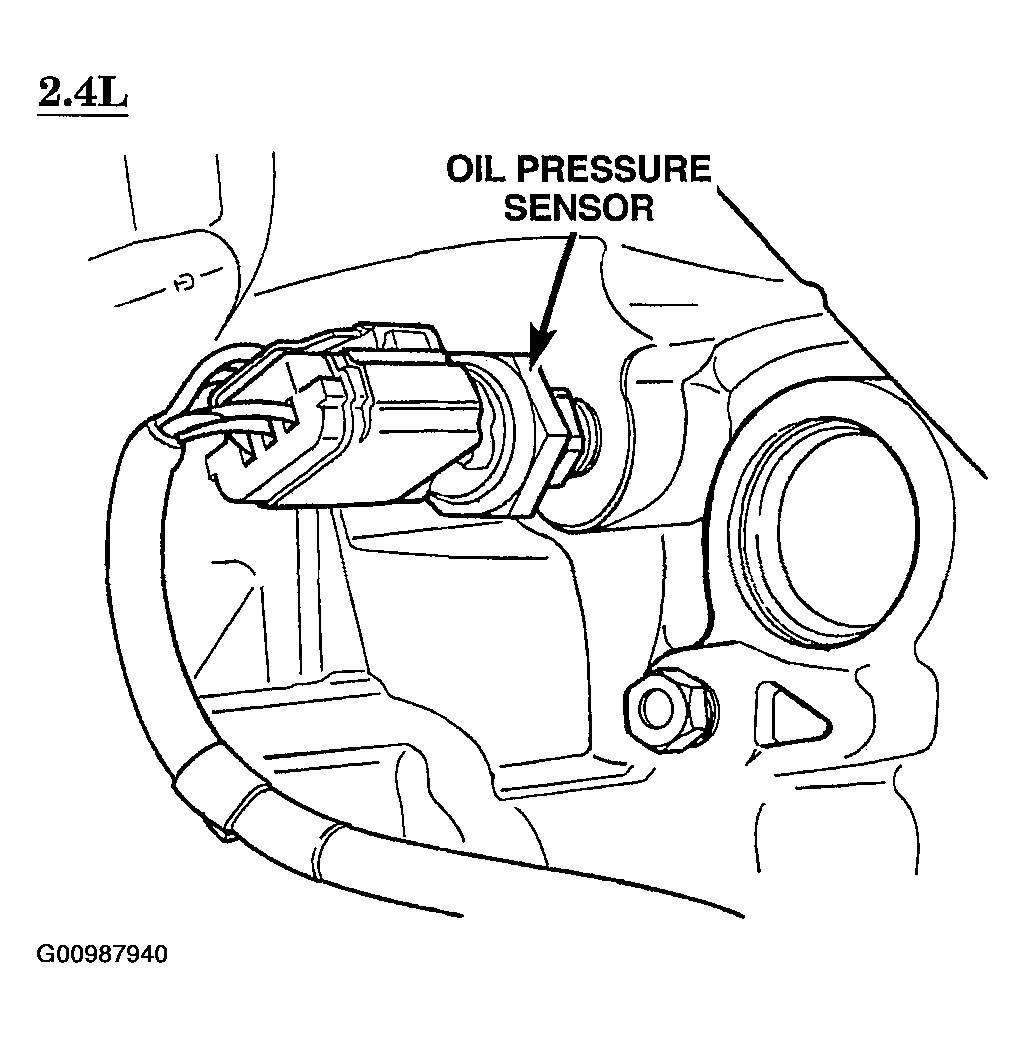

Fig 11: Locating Oil Pressure Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

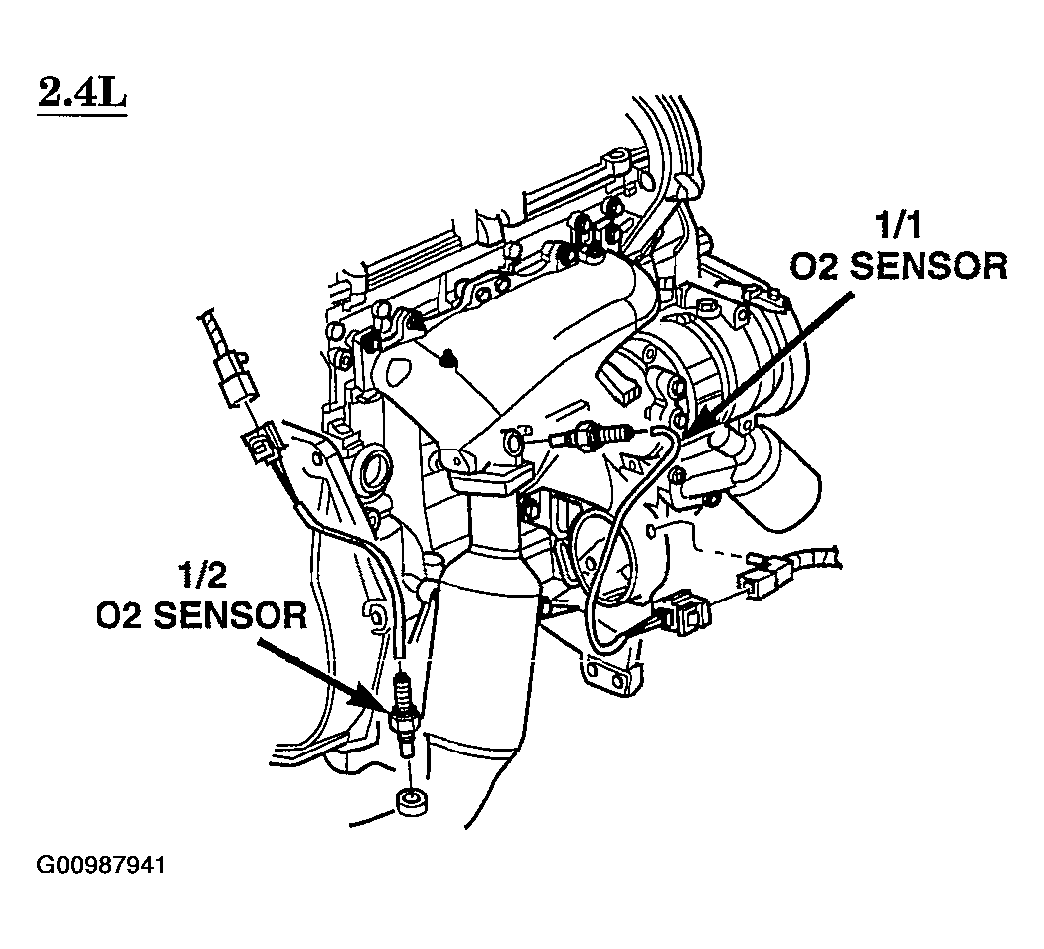

Fig 12: Locating 1/1 O2 Sensor & 1/2 O2 Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

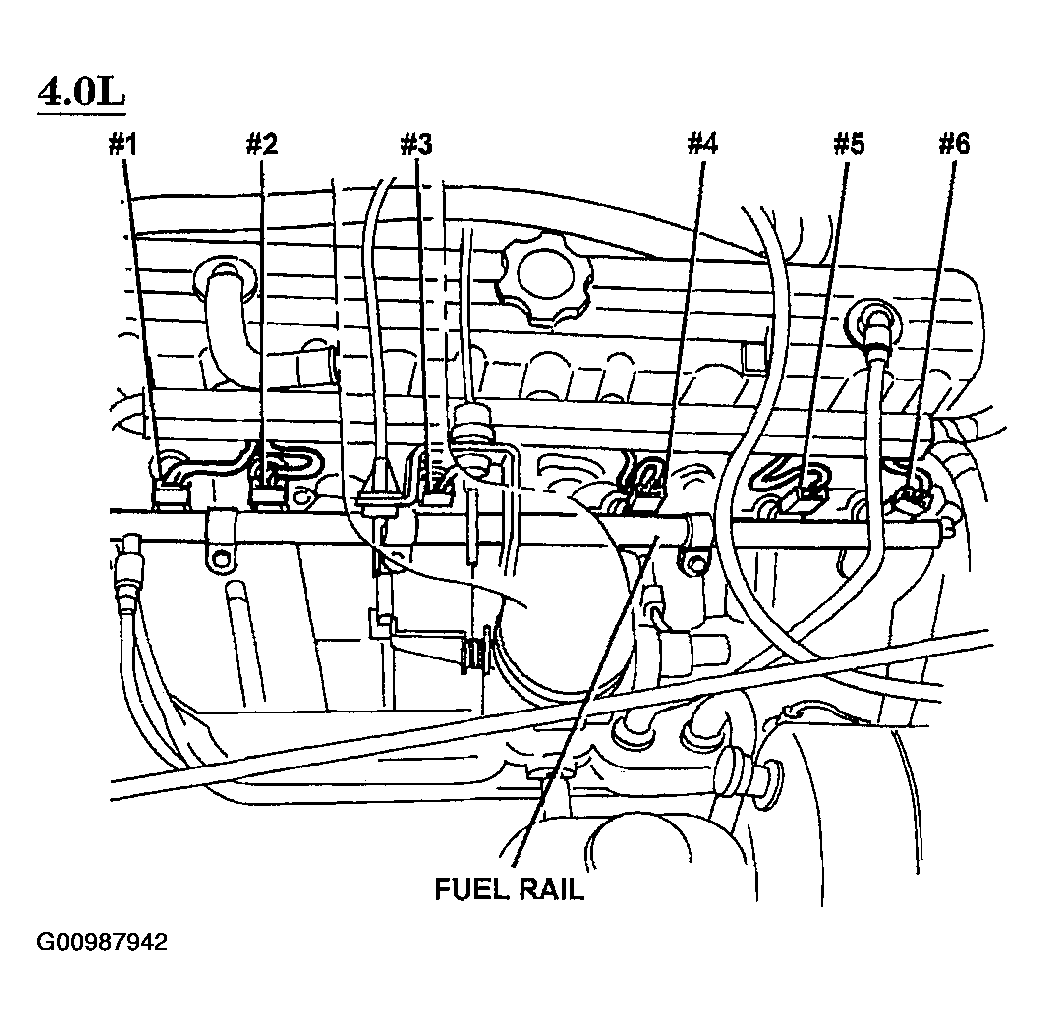

Fig 13: Locating Fuel Rail - 4.0L

Courtesy of DAIMLERCHRYSLER CORP.

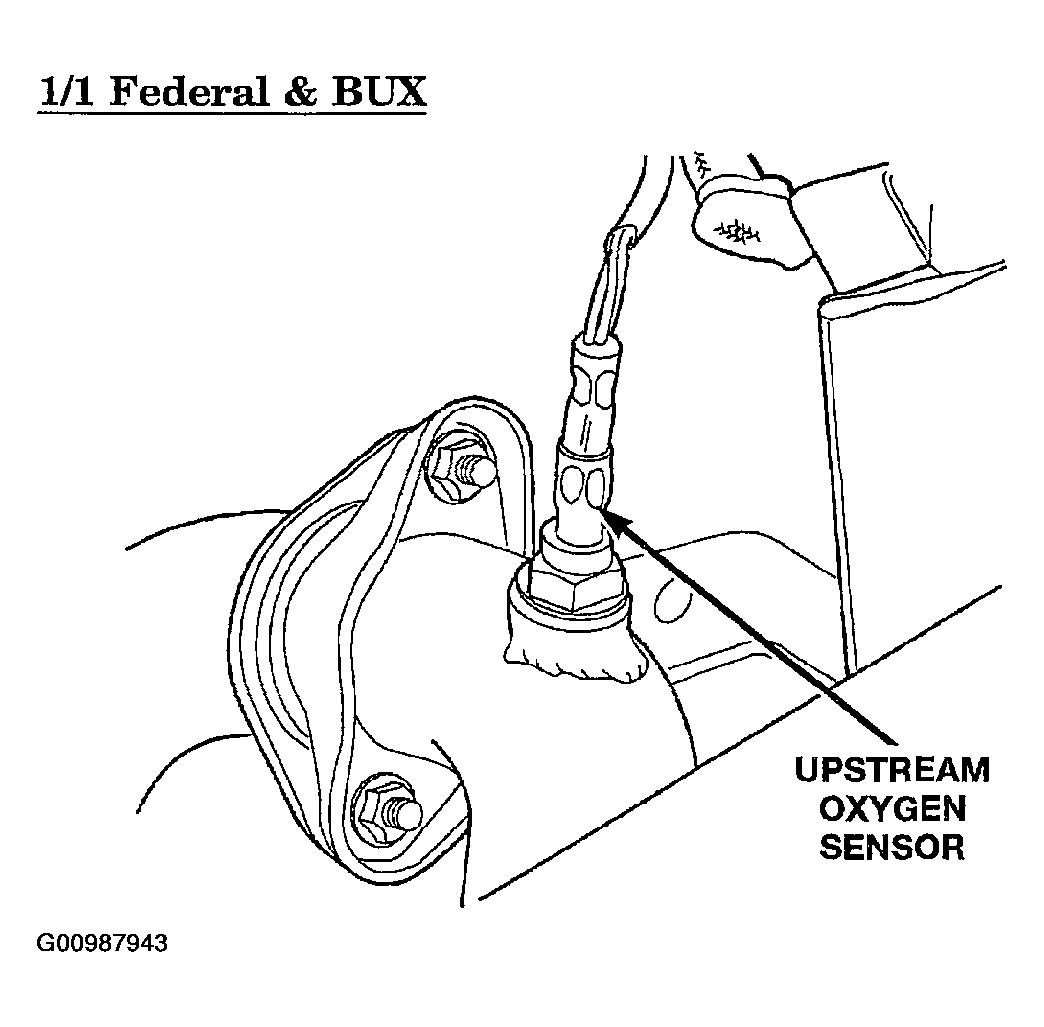

Fig 14: Locating Upstream Oxygen Sensor - 1/1 Federal & BUX

Courtesy of DAIMLERCHRYSLER CORP.

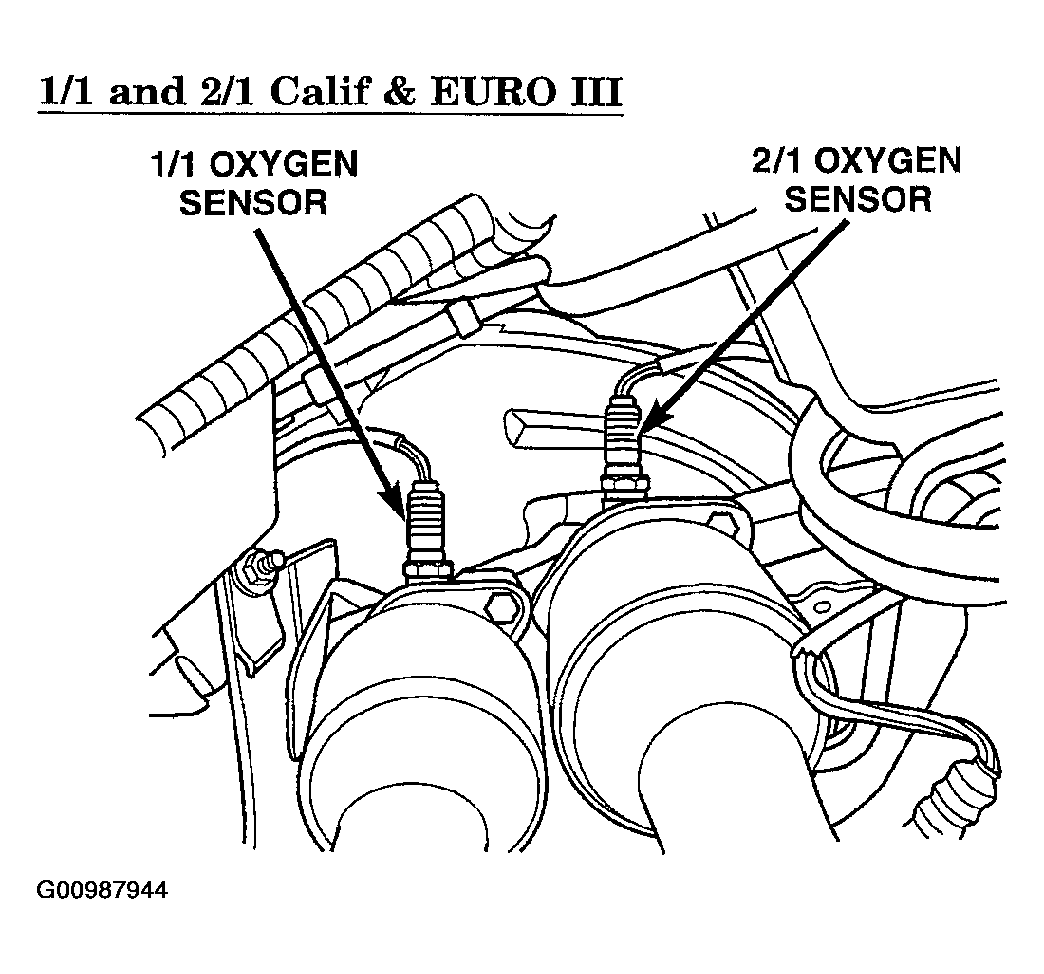

Fig 15: Locating 1/1 Oxygen Sensor & 2/1 Oxygen Sensor - 1/1 & 2/1 California & Euro III

Courtesy of DAIMLERCHRYSLER CORP.

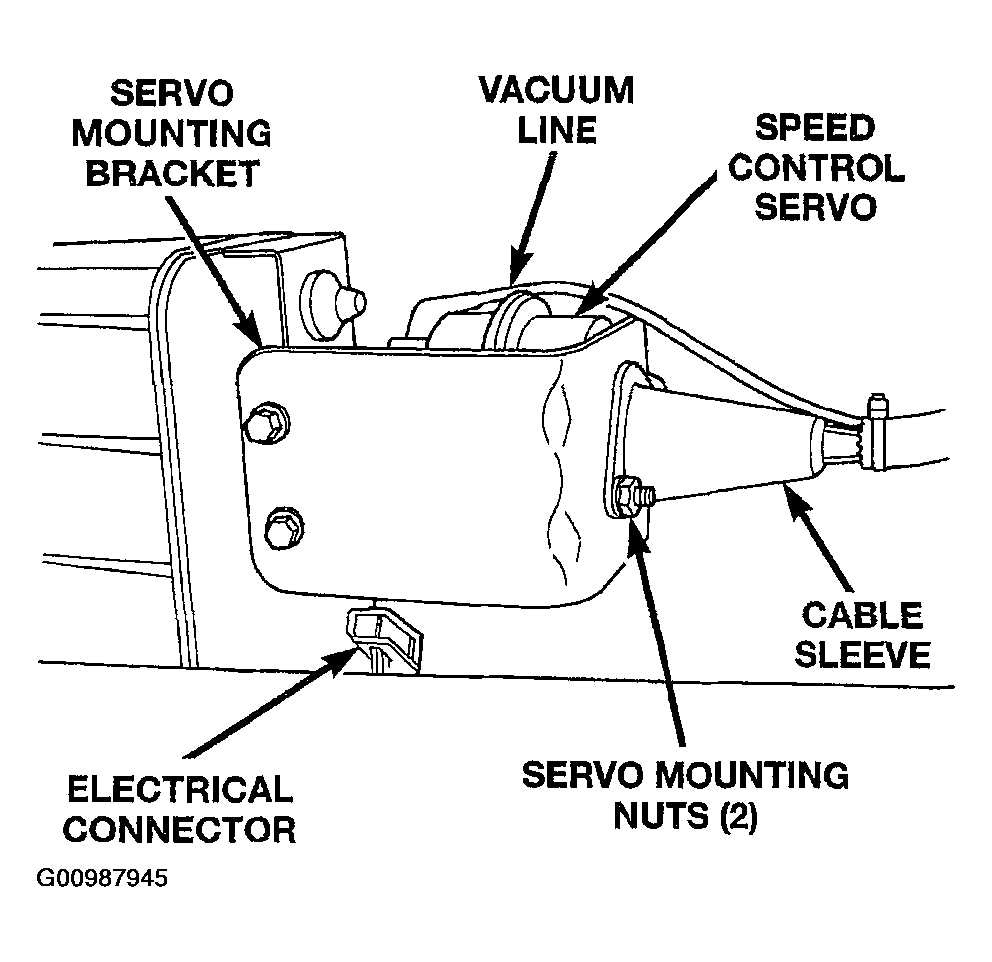

Fig 16: Locating Servo Mounting Bracket, Vacuum Line, Speed Control Servo, Electrical Connector, Servo Mounting Nuts (2) & Cable Sleeve

Courtesy of DAIMLERCHRYSLER CORP.

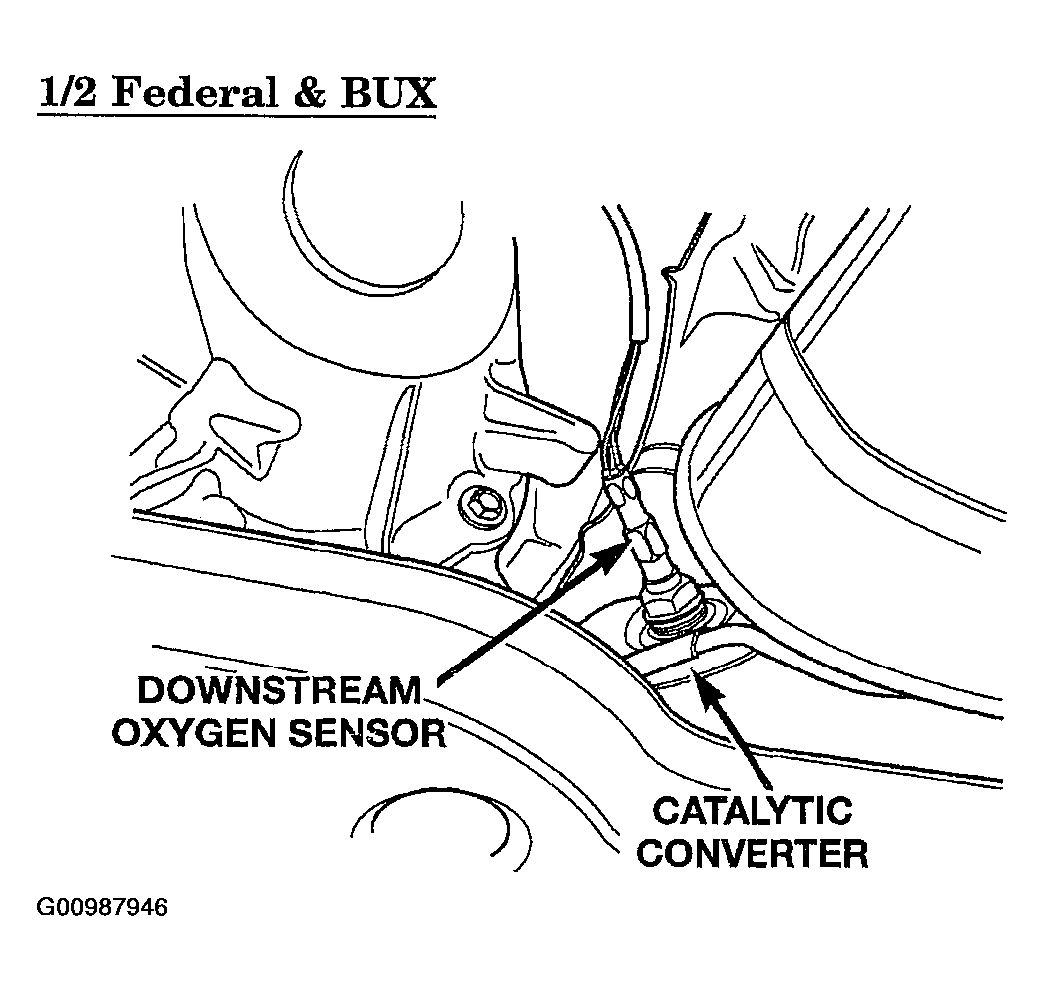

Fig 17: Locating Downstream Oxygen Sensor & Catalytic Converter - 1/2 Federal & BUX

Courtesy of DAIMLERCHRYSLER CORP.

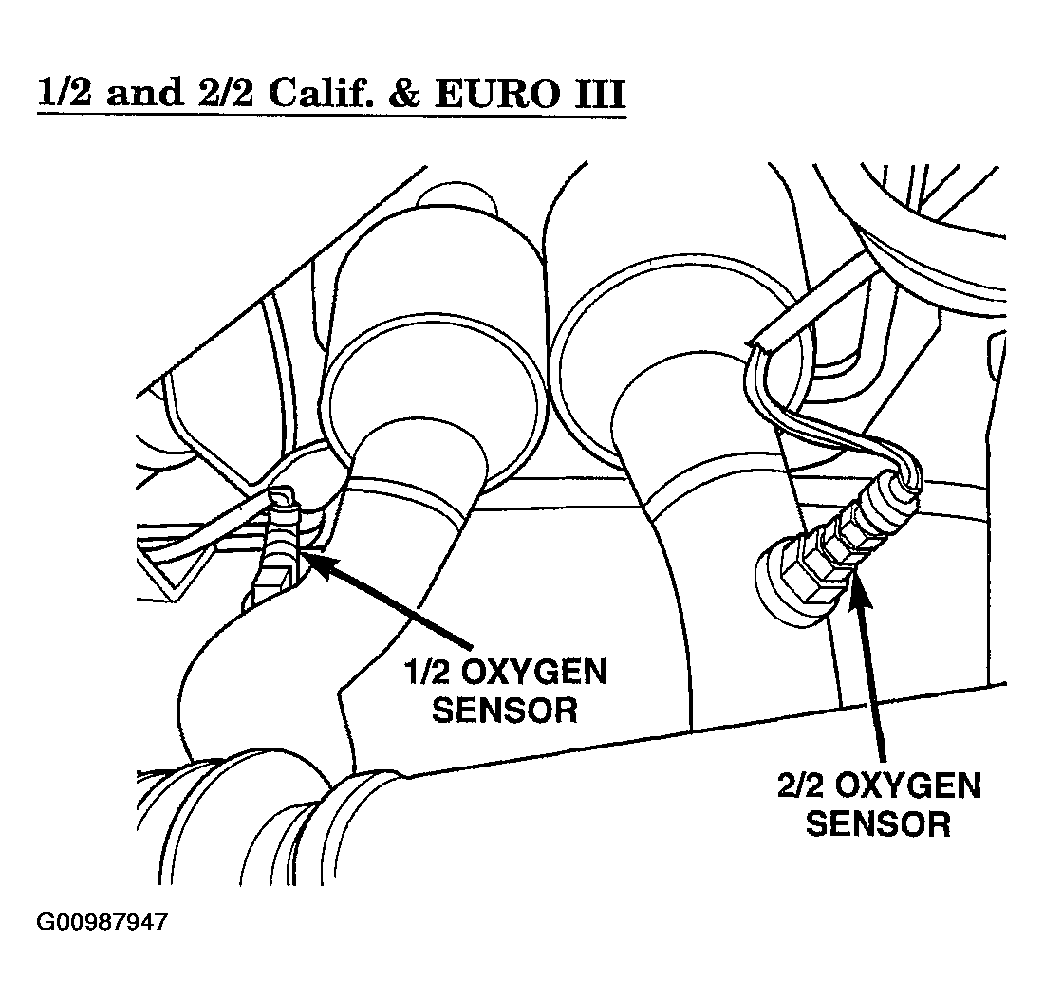

Fig 18: Locating 1/2 Oxygen Sensor & 2/2 Oxygen Sensor - 1/2 & 2/2 California & Euro III

Courtesy of DAIMLERCHRYSLER CORP.

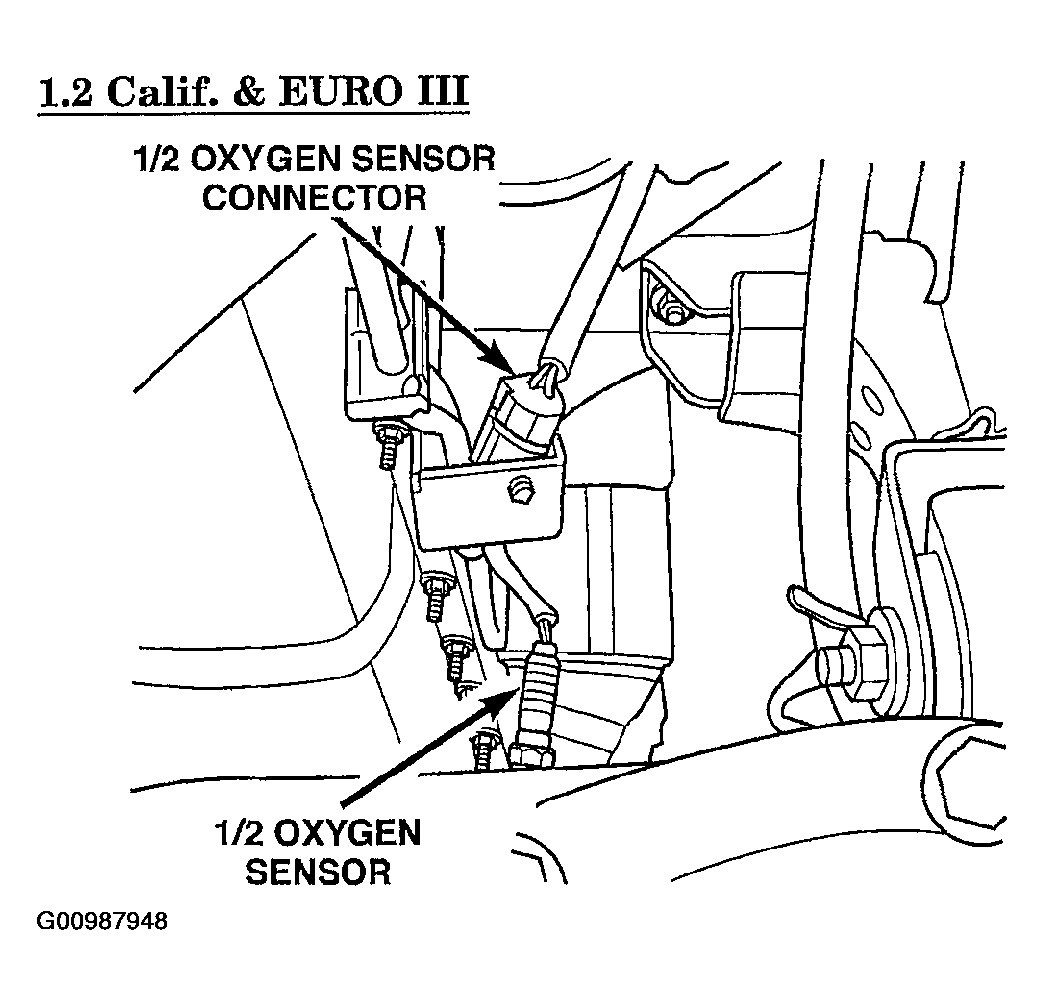

Fig 19: Locating 1/2 Oxygen Sensor Connector & 1/2 Oxygen Sensor - 1/2 Californial & Euro III

Courtesy of DAIMLERCHRYSLER CORP.
