Engine Coolant Temperature Sensor Connector End View

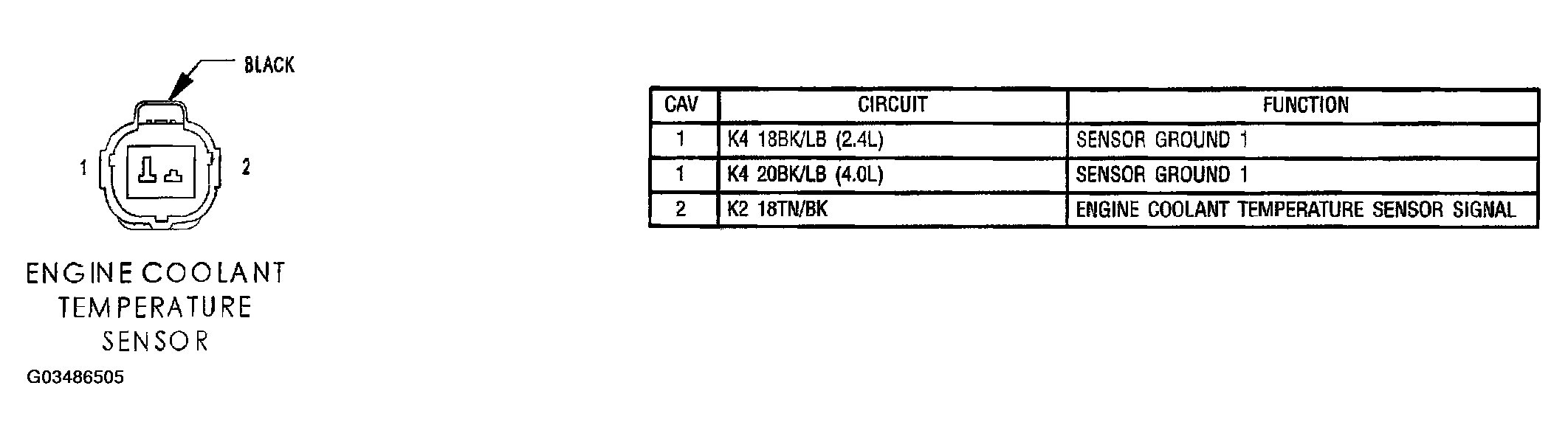

Fig 1: Engine Coolant Temperature Sensor Connector End View

G03486505

Courtesy of DAIMLERCHRYSLER CORP.
