Brake Lamp Switch Connector End View

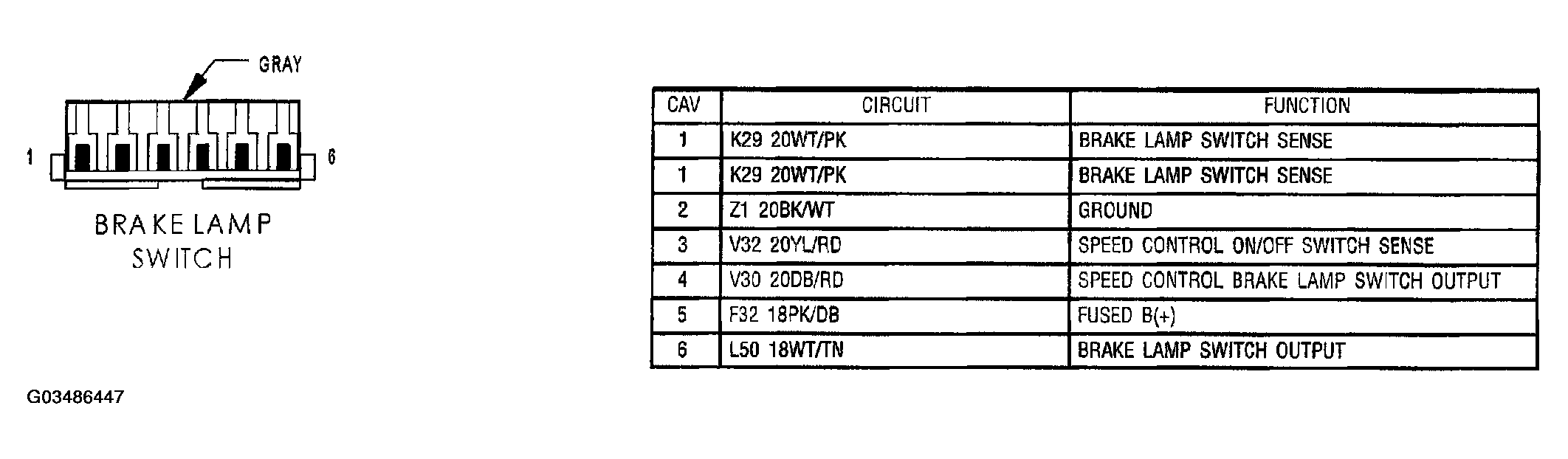

Fig 1: Brake Lamp Switch Connector End View

G03486447

Courtesy of DAIMLERCHRYSLER CORP.
