Transmission Range Sensor: Installation

Install TRS on manual shaft with TRS locating pin resting in manual valve bore slot. Install and tighten manual shaft/TRS retaining screw. See TORQUE SPECIFICATIONS  . Install manual shaft seal. Install valve body assembly. See VALVE BODY ASSEMBLY  . Check and adjust fluid level.

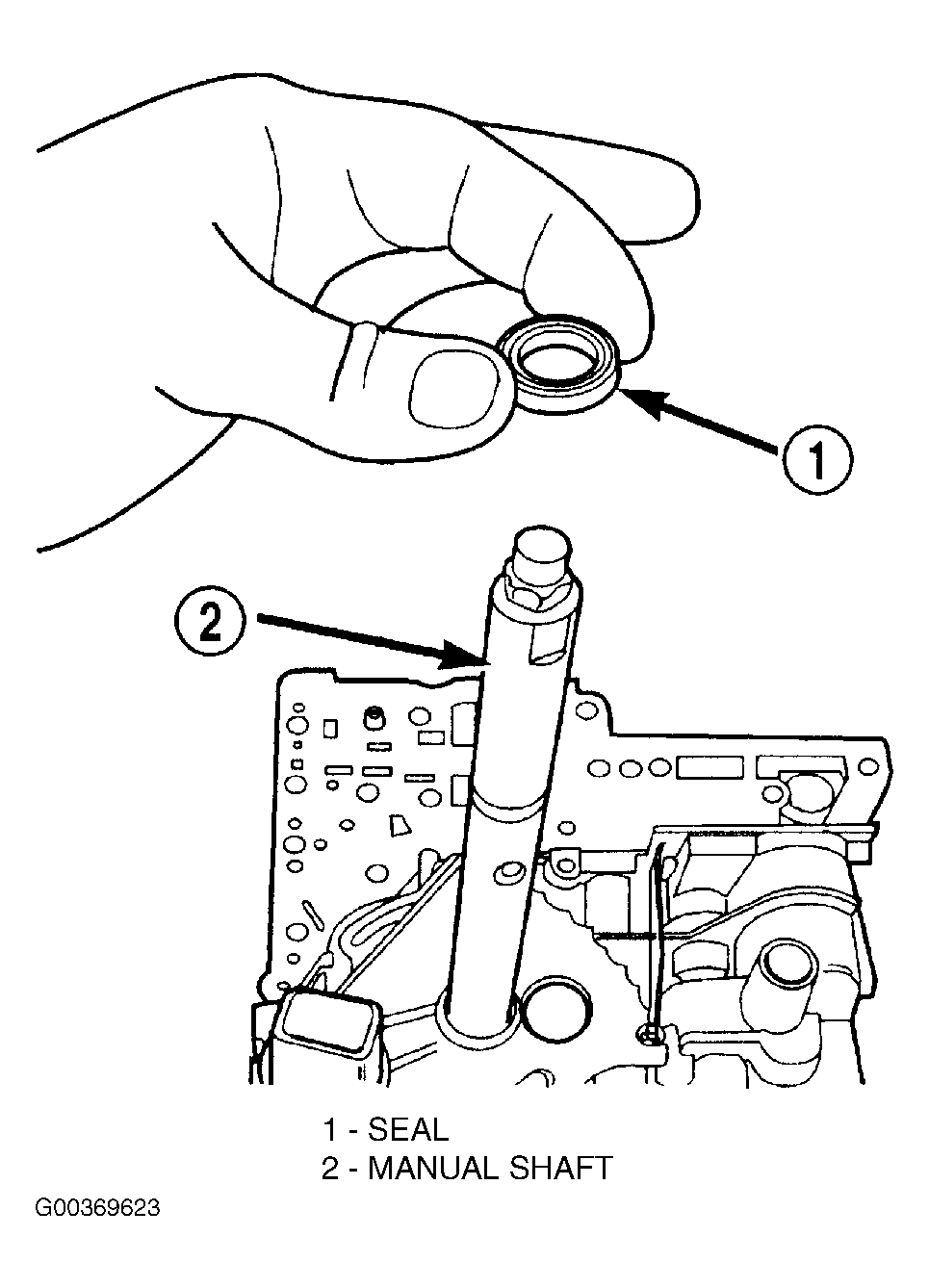

Fig 1: Removing & Installing Manual Shaft Seal

Courtesy of DAIMLERCHRYSLER CORPORATION

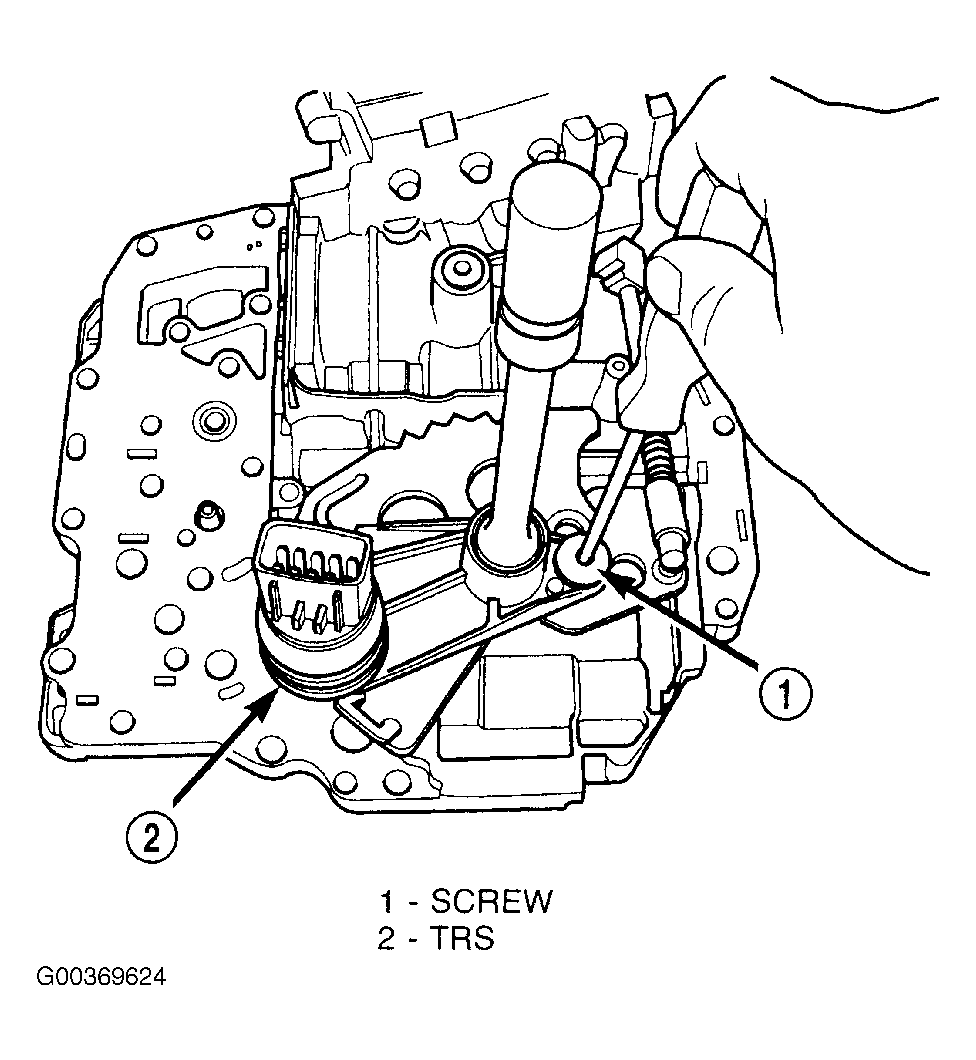

Fig 2: Removing & Installing Manual Shaft/Transmission Range Sensor Retaining Screw

Courtesy of DAIMLERCHRYSLER CORPORATION
