*Brake Switch Sense Status Does Not Change On DRBIII(R): Testing

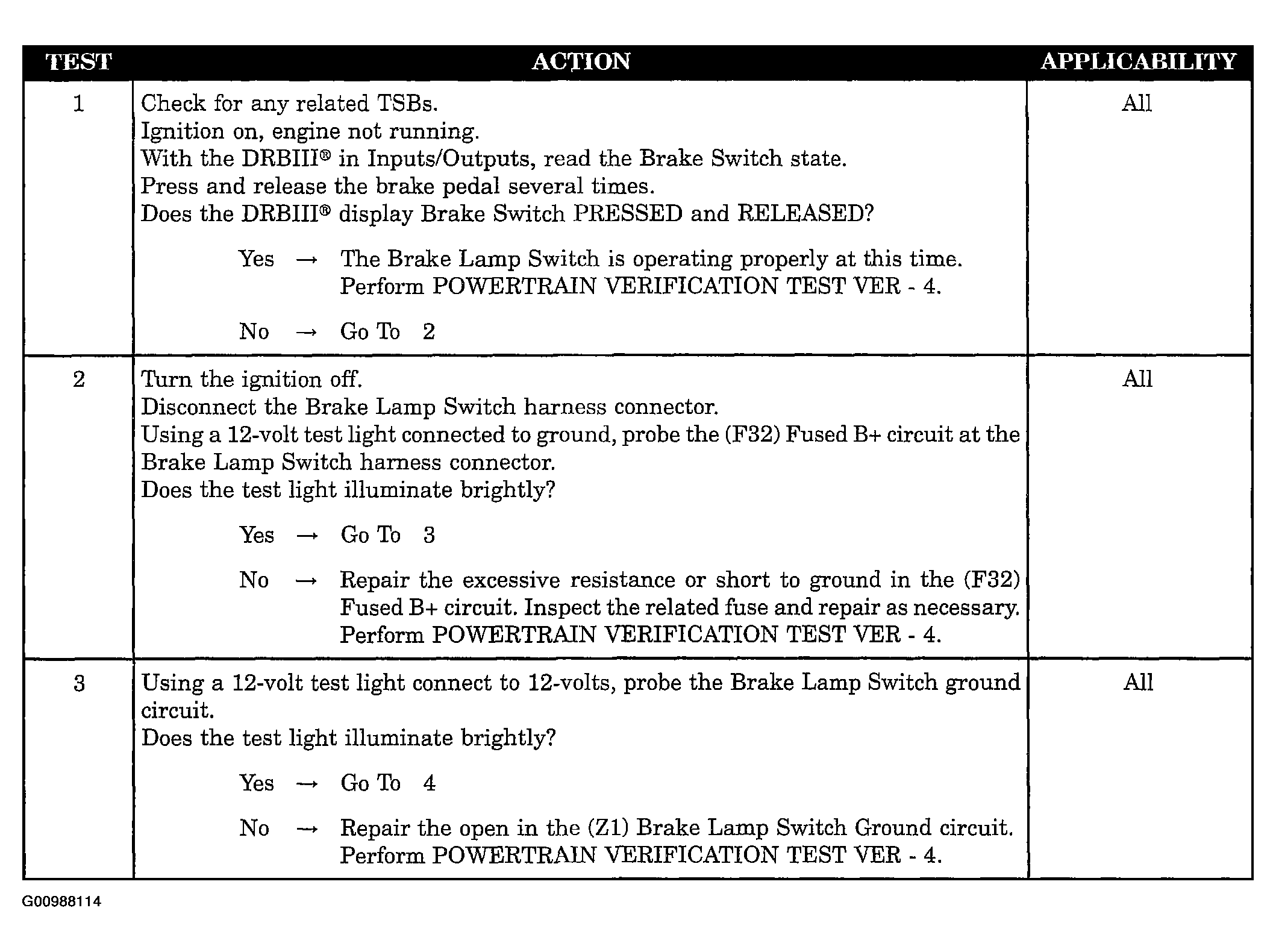

Fig 1: Testing: Brake Switch Sense Status Does Not Change On DRBIII(R) (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

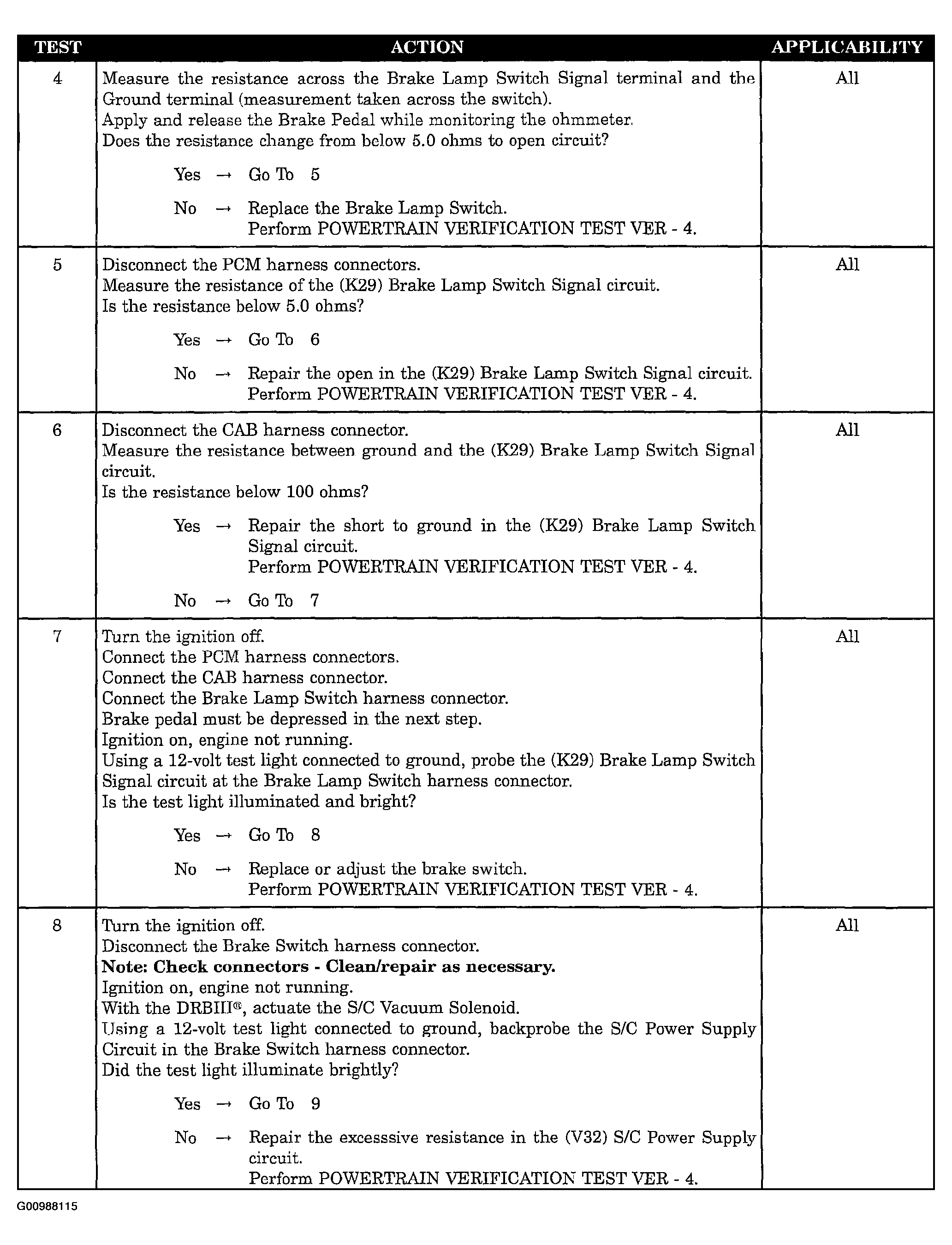

Fig 2: Testing: Brake Switch Sense Status Does Not Change On DRBIII(R) (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

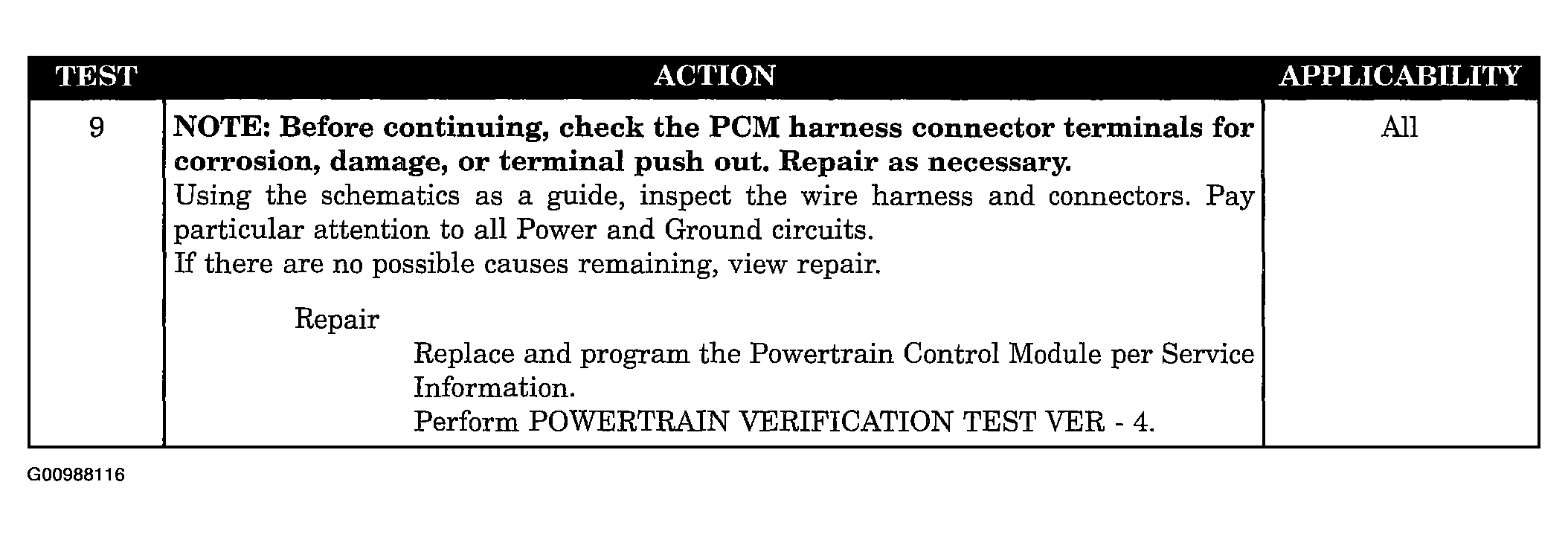

Fig 3: Testing: Brake Switch Sense Status Does Not Change On DRBIII(R) (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
