Exhaust System: Muffler: Installation
- Position muffler and tailpipe assembly into vehicle.

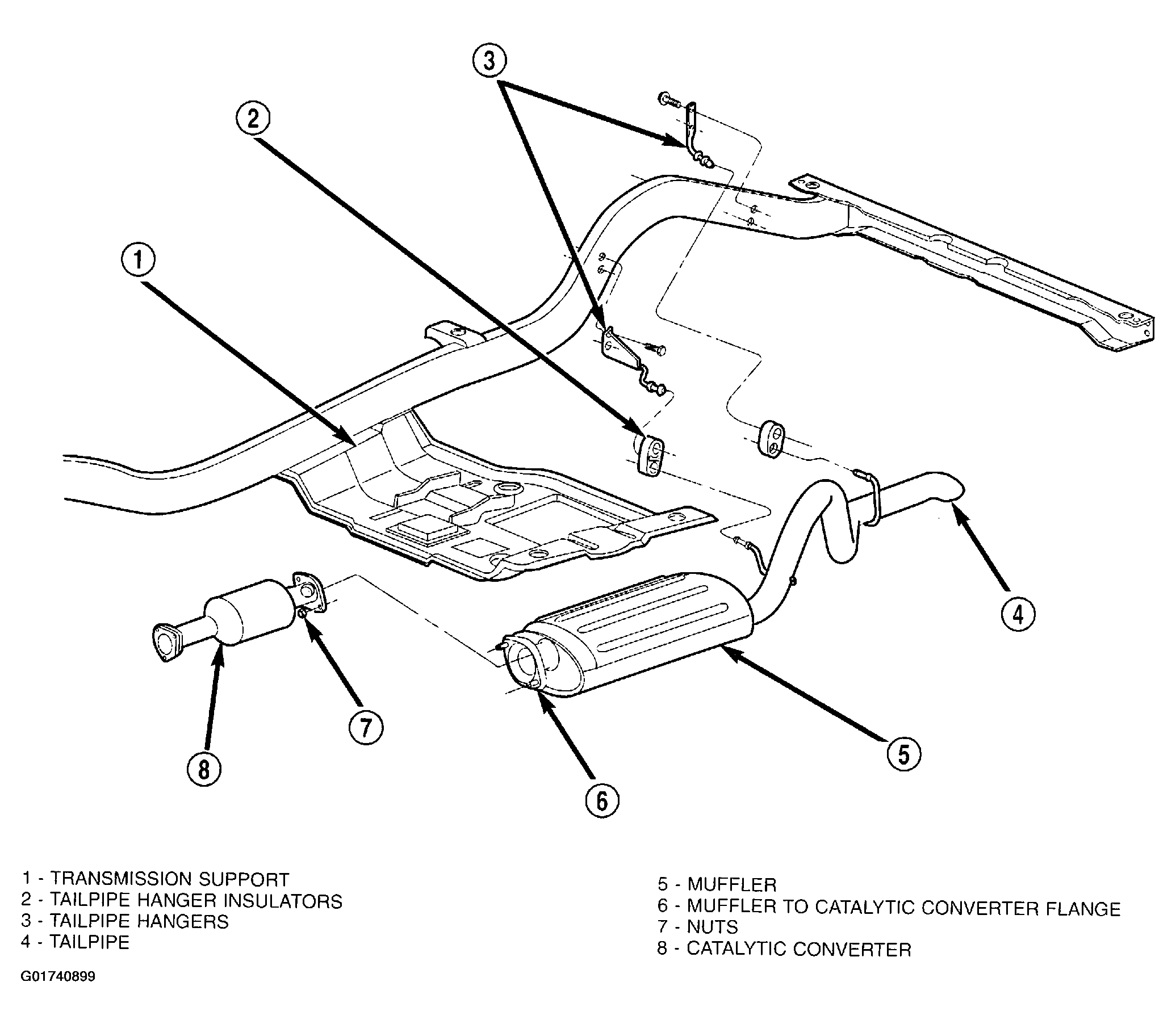

- Position muffler and catalytic converter flanges together and install nuts. DO NOT
tighten nuts at this time.
Courtesy of DAIMLERCHRYSLER CORP.
- Install tailpipe hangers into the insulators.
- Make sure the muffler and tailpipe are correctly positioned and the proper alignment. The minimum clearance between components is 25mm (1 inch).
- Tighten muffler to catalytic converter flange nuts to 28.5 N.m (21 ft. lbs.).
- Lower vehicle.
- Start engine and inspect for leaks. Repair exhaust leaks as necessary.
- Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
