Heat Shields: Removal

  1. Raise and support the vehicle.
  2. Remove the screws and/or nuts holding the heat shields to the frame and/or floor pan.

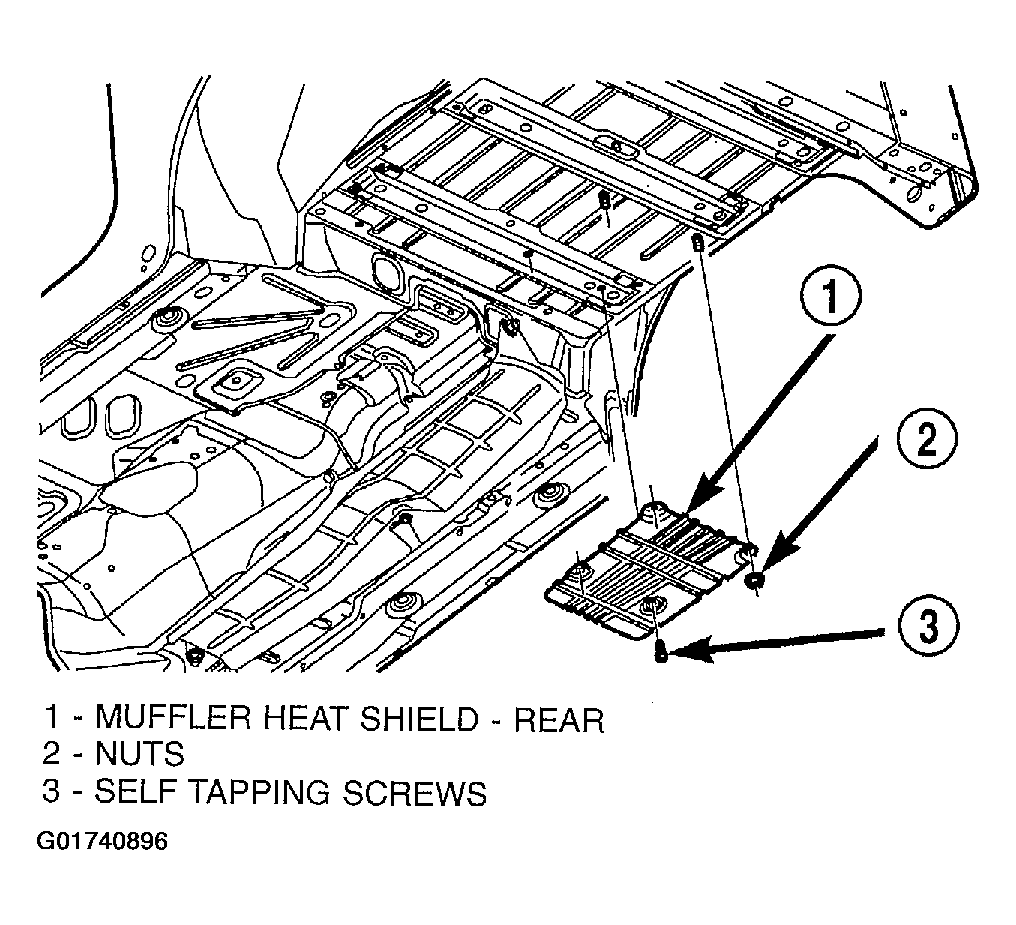

    Fig 1: Removing Muffler Heat Shield - Rear
    G01740896Courtesy of DAIMLERCHRYSLER CORP.

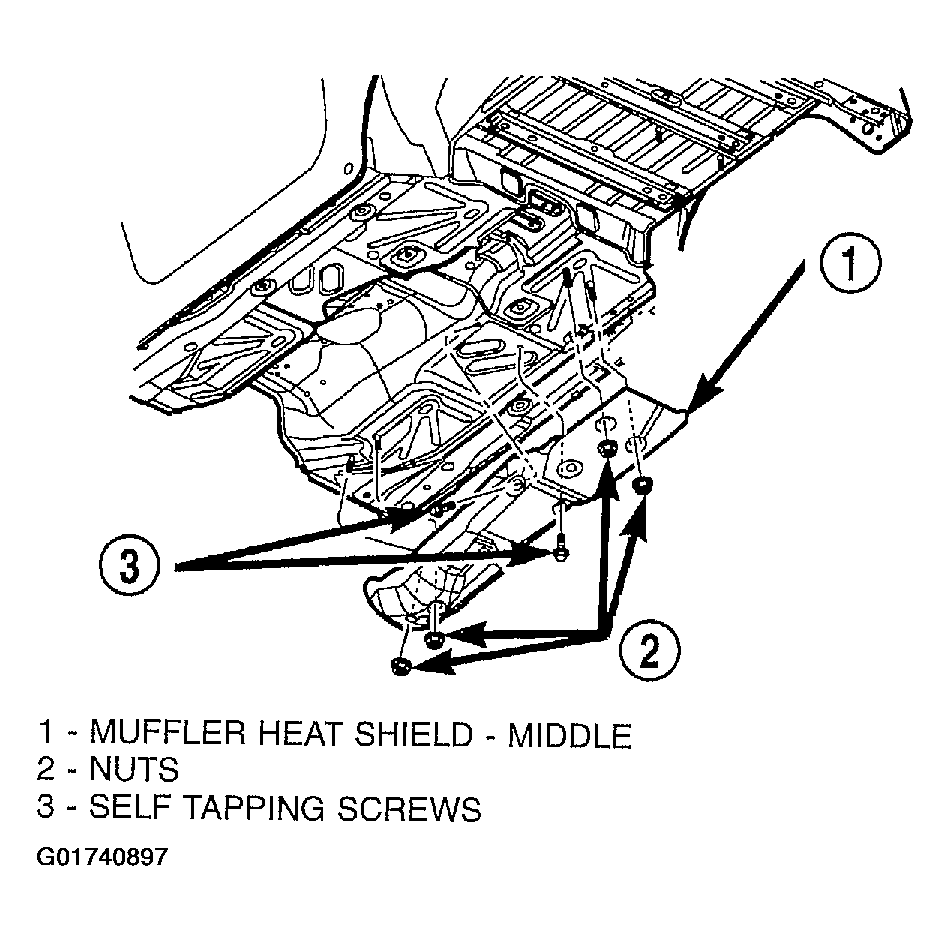

    Fig 2: Removing Muffler Heat Shield - Middle
    G01740897Courtesy of DAIMLERCHRYSLER CORP.
  3. When removing muffler heat shield, the muffler front support bracket must be removed first.
  4. Slide the shields out around the exhaust system.
