Data Link Connector Connector End View

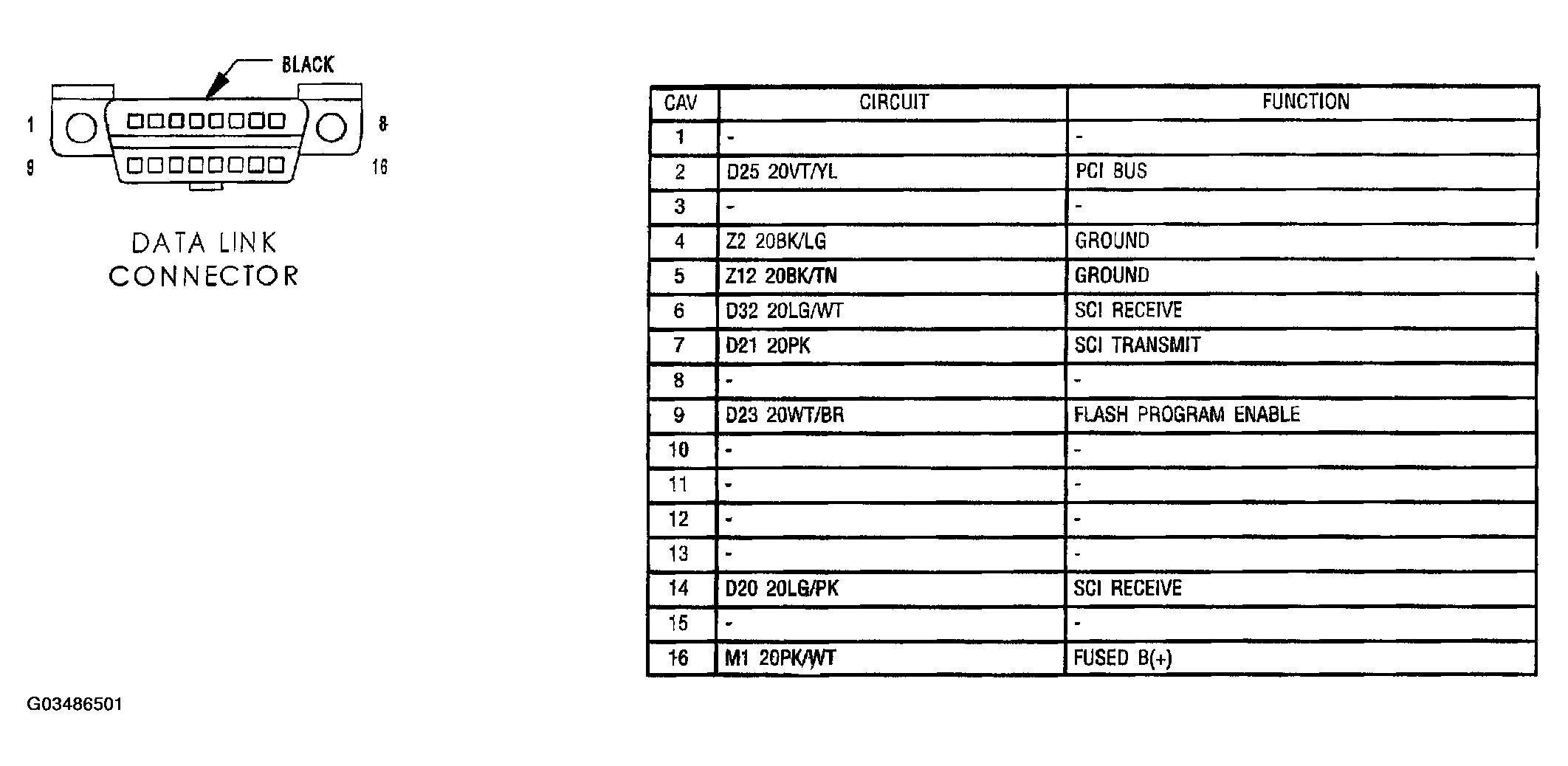

Fig 1: Data Link Connector End View

G03486501

Courtesy of DAIMLERCHRYSLER CORP.
