Overdrive Off Switch Connector End View

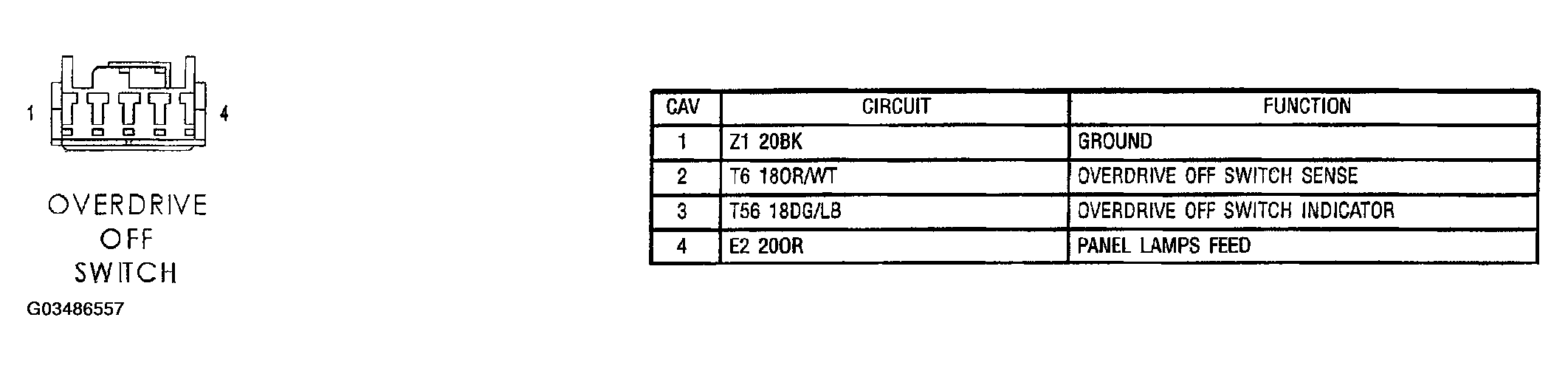

Fig 1: Overdrive Off Switch Connector End View

G03486557

Courtesy of DAIMLERCHRYSLER CORP.
