Compass/Temperature Mirror Connector End View

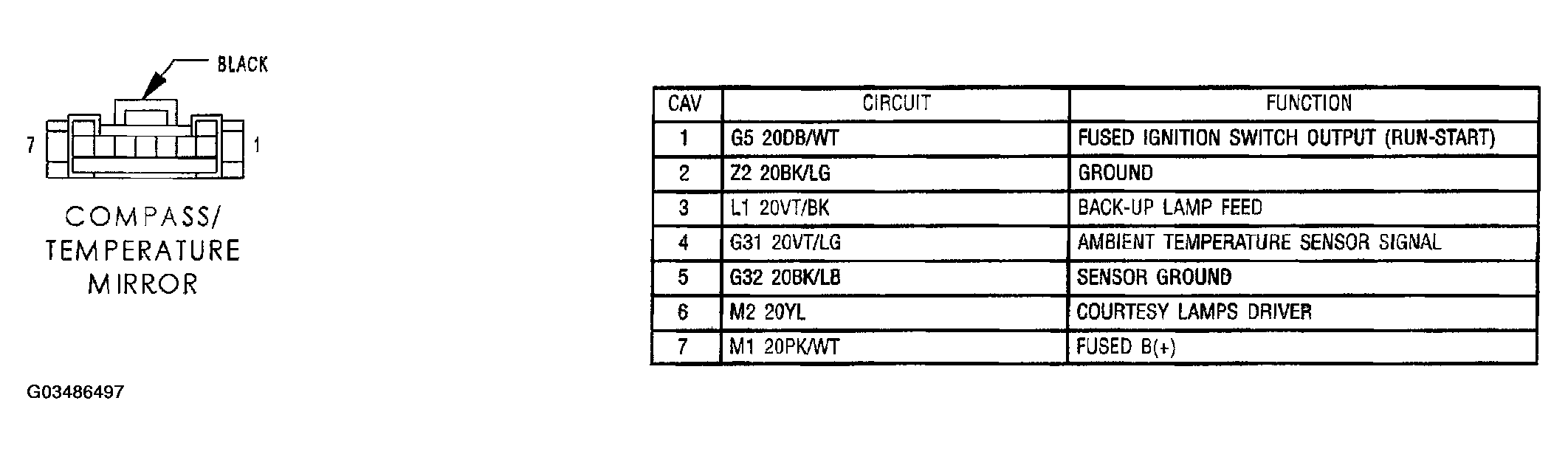

Fig 1: Compass/Temperature Mirror Connector End View

G03486497

Courtesy of DAIMLERCHRYSLER CORP.
