Transmission Range Sensor: Removal

  1. Disconnect the TRS connector.
  2. Remove valve body assembly from vehicle.
  3. Remove the manual shaft seal.

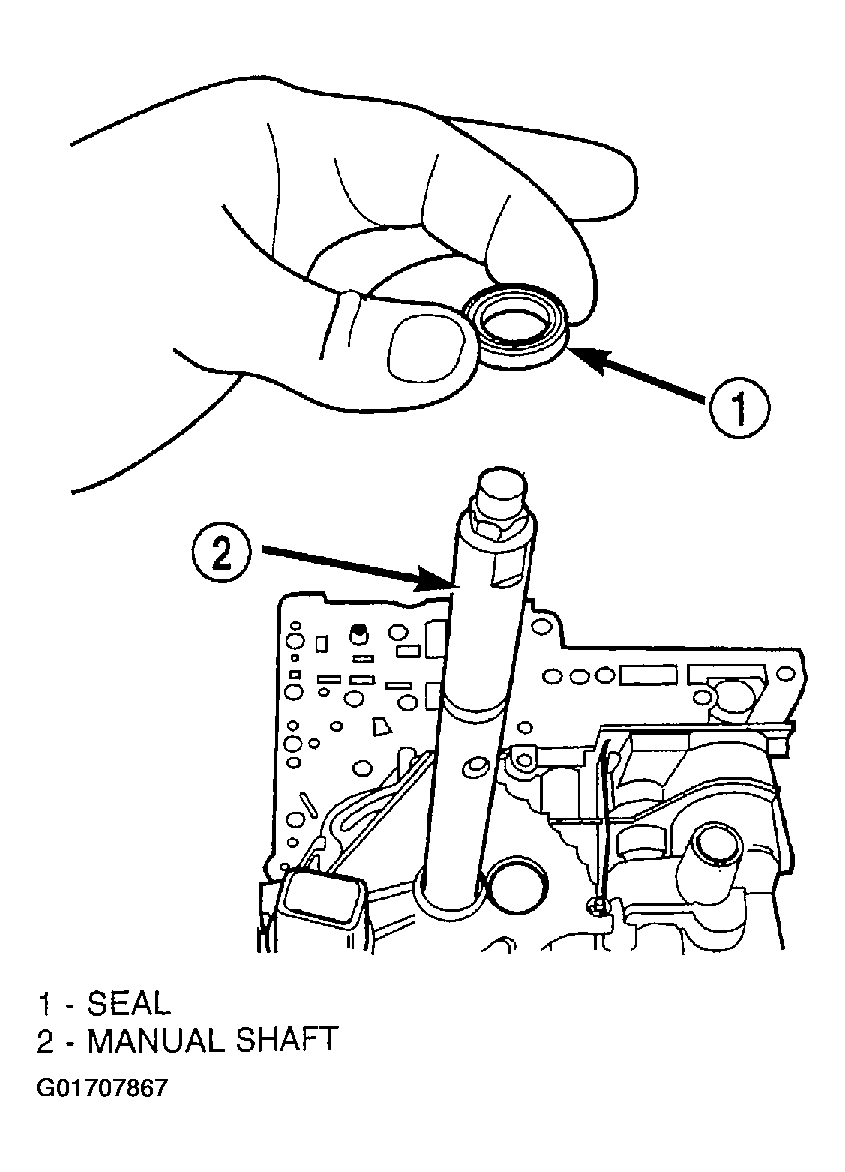

    Fig 1: Identifying Manual Shaft Seal (Typical)
    G01707867Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove manual shaft/TRS retaining screw.

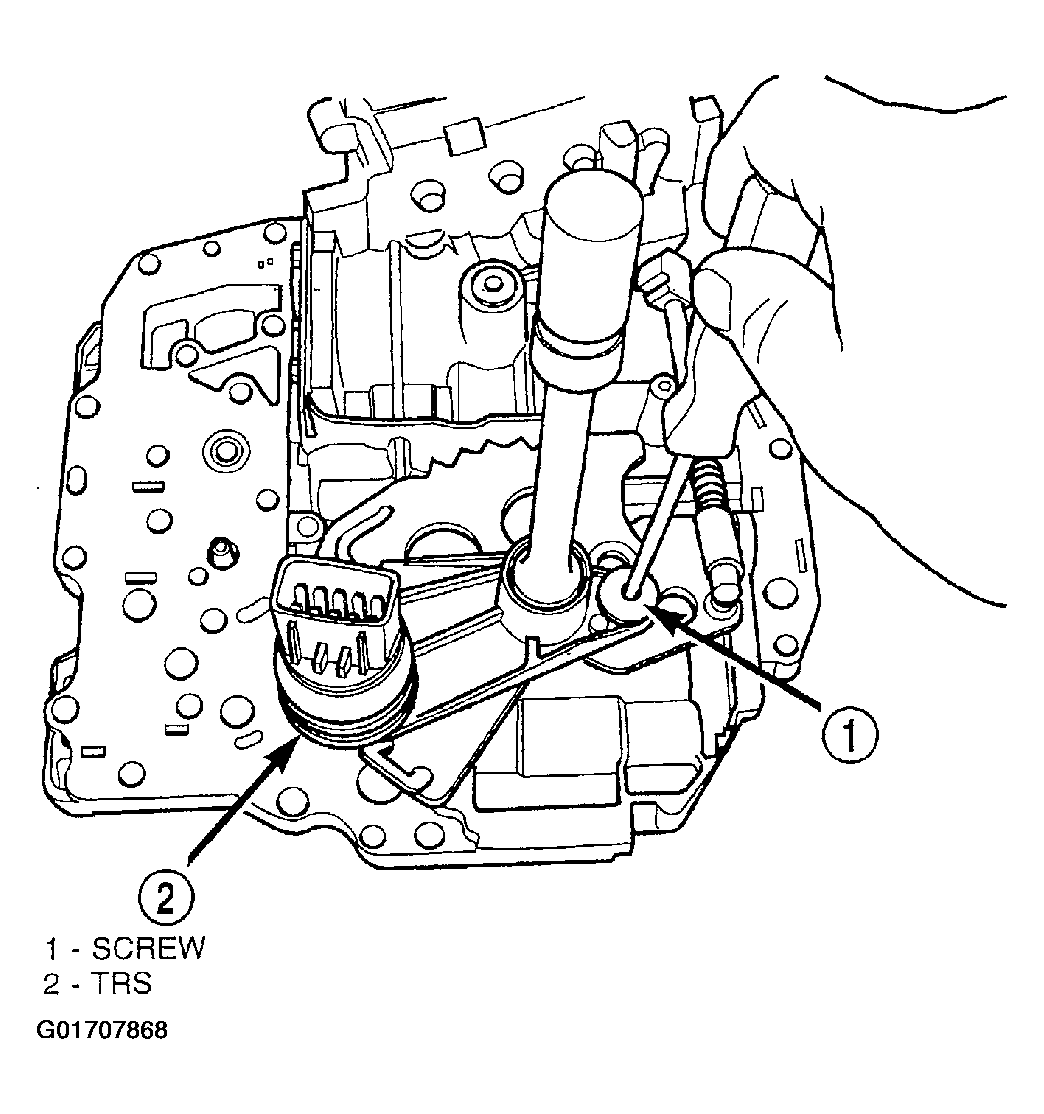

    Fig 2: Removing & Installing Manual Shaft Retaining Screw
    G01707868Courtesy of DAIMLERCHRYSLER CORP.
  5. Slide TRS off of manual valve shaft.
