Output Speed Sensor: Removal

  1. Raise vehicle.
  2. Place a suitable fluid catch pan under the transmission.
  3. Remove the wiring connector from the output speed sensor.

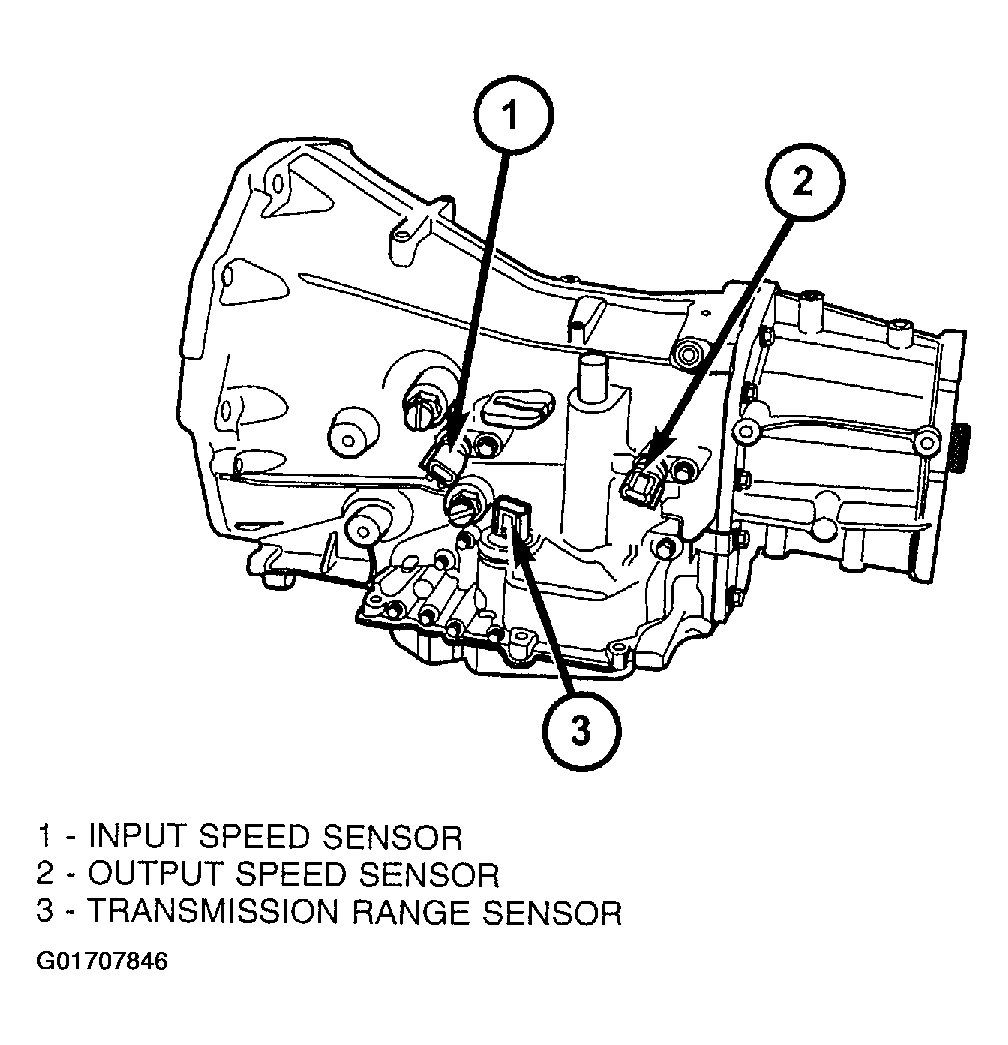

    Fig 1: Removing Input & Output Speed Sensors & Transmission Range Sensor
    G01707846Courtesy of DAIMLERCHRYSLER CORP.
    4. NOTE: The speed sensor bolt has a sealing patch applied from the factory. Be sure to reuse the same bolt.
  4. Remove the bolt holding the output speed sensor to the transmission case.
  5. Remove the output speed sensor from the transmission case.
