Input Speed Sensor: Removal

  1. Raise vehicle.
  2. Place a suitable fluid catch pan under the transmission.
  3. Remove the wiring connector from the input speed sensor.

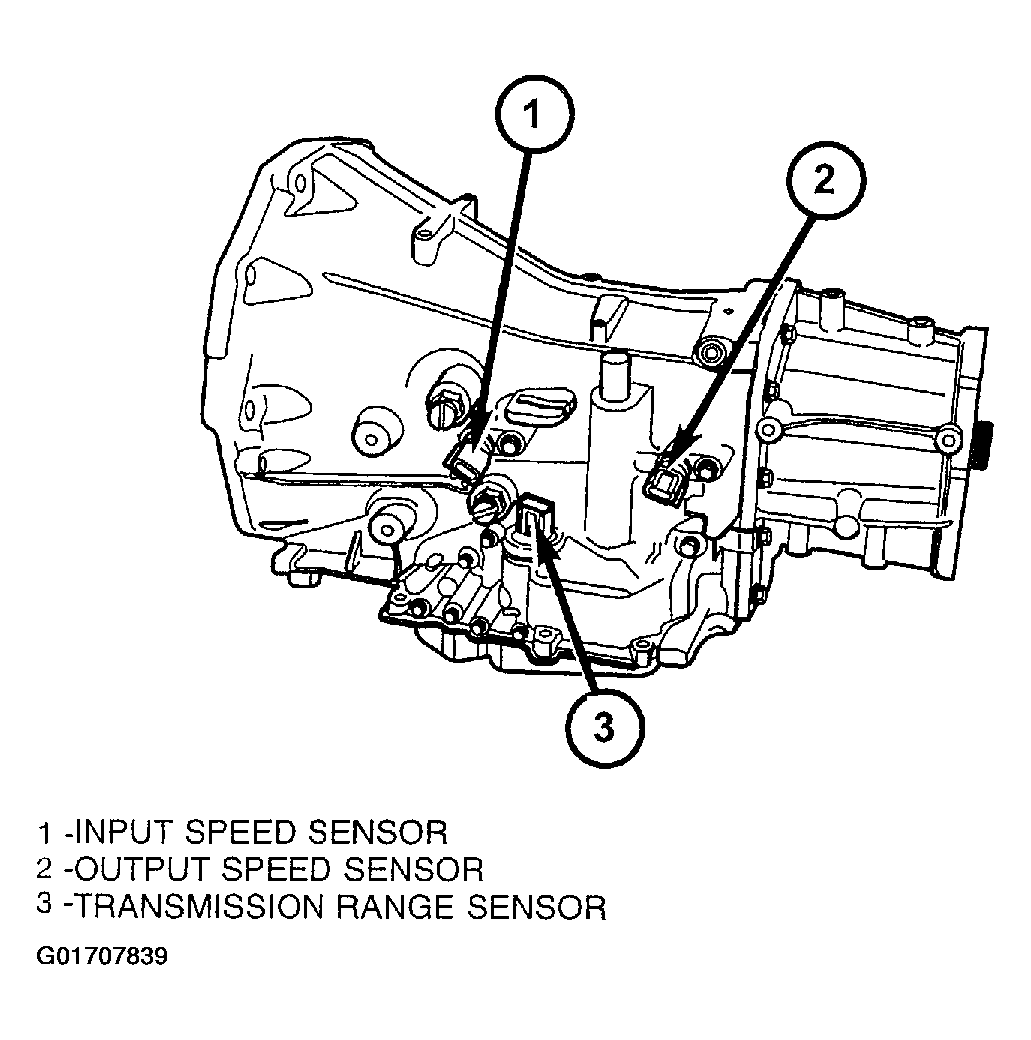

    Fig 1: Removing Input Speed Sensor
    G01707839Courtesy of DAIMLERCHRYSLER CORP.
    4. NOTE: The speed sensor bolt has a sealing patch applied from the factory. Be sure to reuse the same bolt.
  4. Remove the bolt holding the input speed sensor to the transmission case.
  5. Remove the input speed sensor from the transmission case.
