Input Speed Sensor: Description

The Input and Output Speed Sensors are two-wire magnetic pickup devices that generate AC signals as rotation occurs. They are mounted in the left side of the transmission case and are considered primary inputs to the Transmission Control Module (TCM).

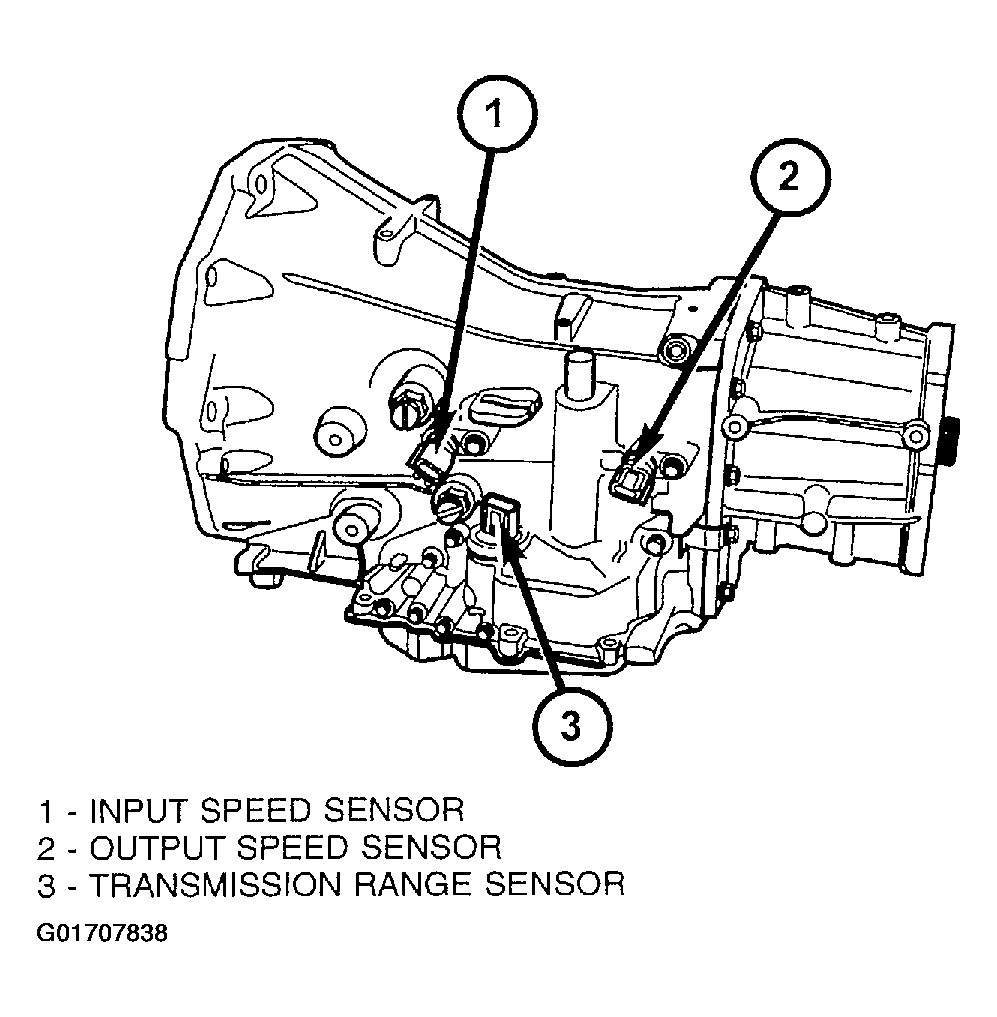

Fig 1: Locating Input & Output Speed Sensors & Transmission Range Sensor

Courtesy of DAIMLERCHRYSLER CORP.
