Input Clutch Assembly: Disassembly

Mount input clutch assembly to Input Clutch Pressure Fixture (Tool 8391).

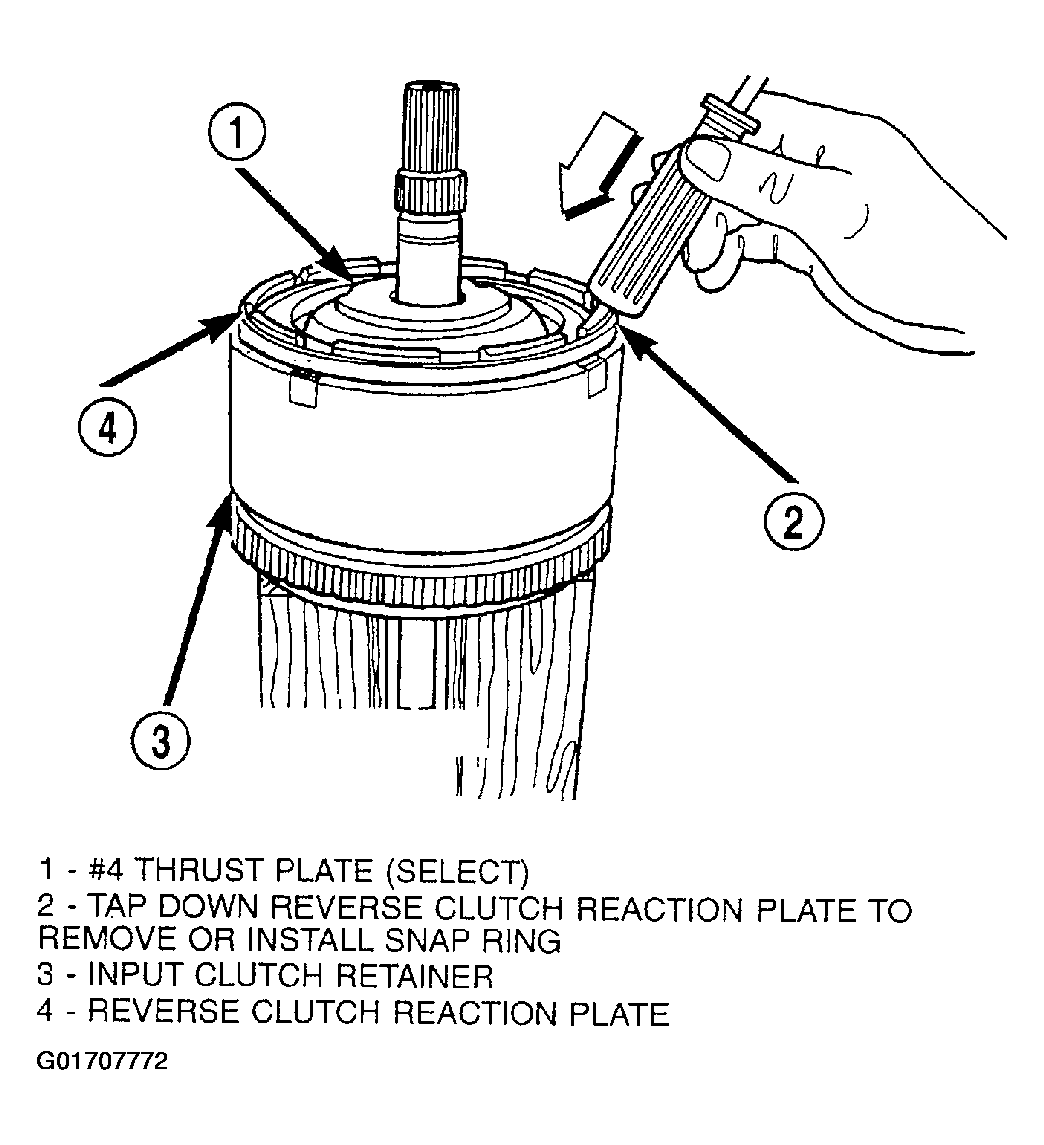

Tap down reverse clutch reaction plate to release pressure from snap ring.

Fig 1: Tapping Reaction Plate
Courtesy of DAIMLERCHRYSLER CORP.

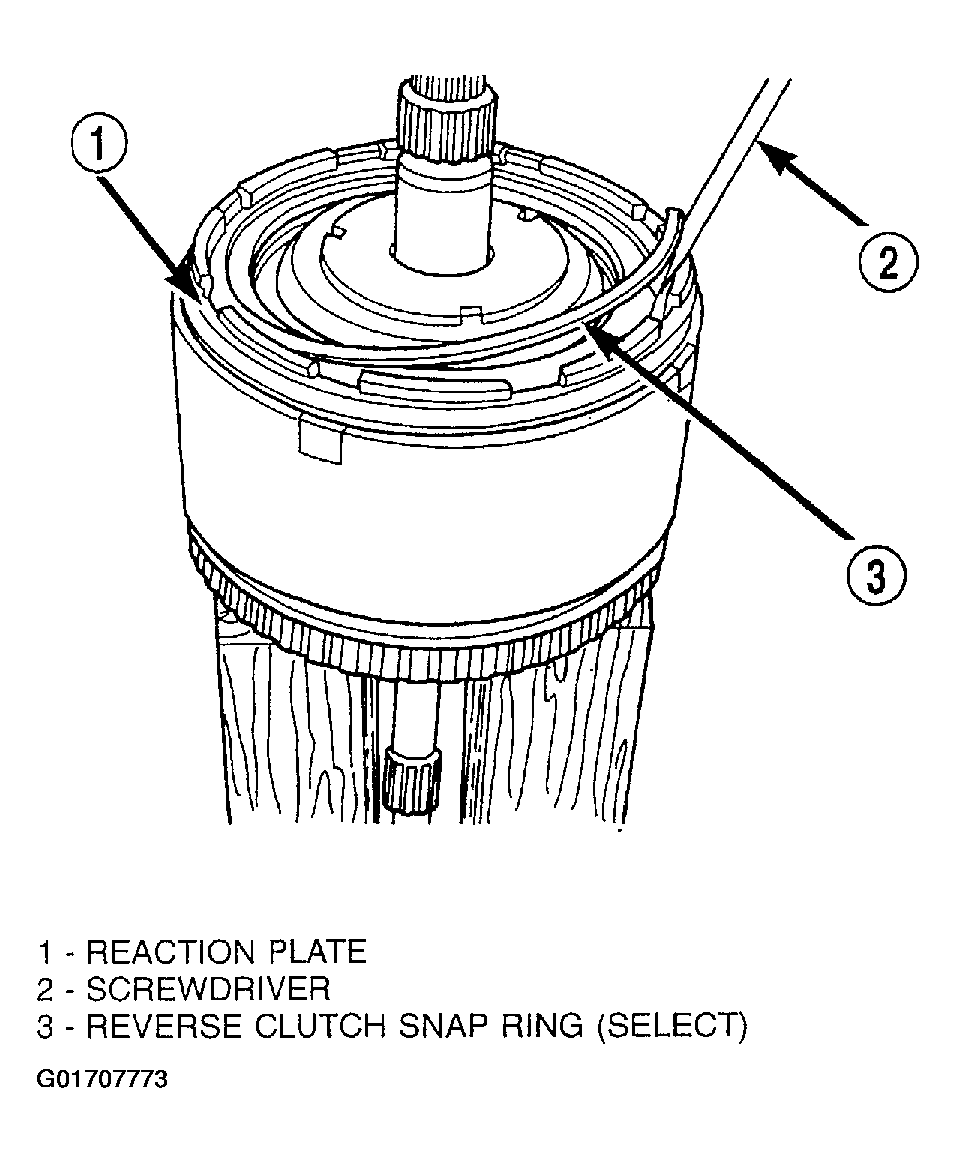

Remove reverse clutch snap ring.

Fig 2: Removing Reverse Clutch Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

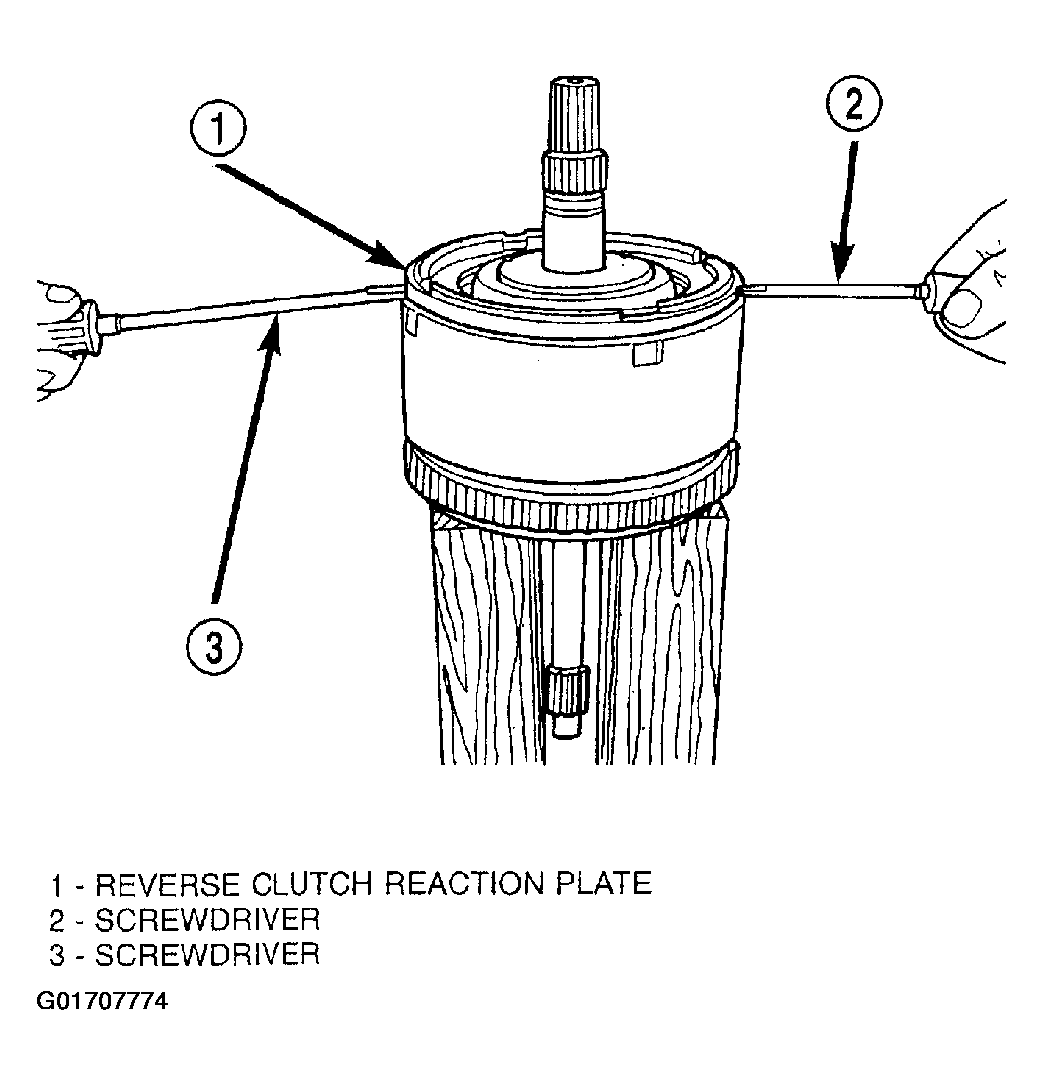

Pry up and remove reverse clutch reaction plate.

Fig 3: Prying Reverse Clutch Reaction Plate
Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Removing Reverse Clutch Reaction Plate
Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: TAG AND IDENTIFY CLUTCH PACKS TO ASSURE ORIGINAL PLACEMENT

NOTE: Tag reverse clutch pack for reassembly identification.

Fig 5: Removing Reverse Clutch Pack

Courtesy of DAIMLERCHRYSLER CORP.

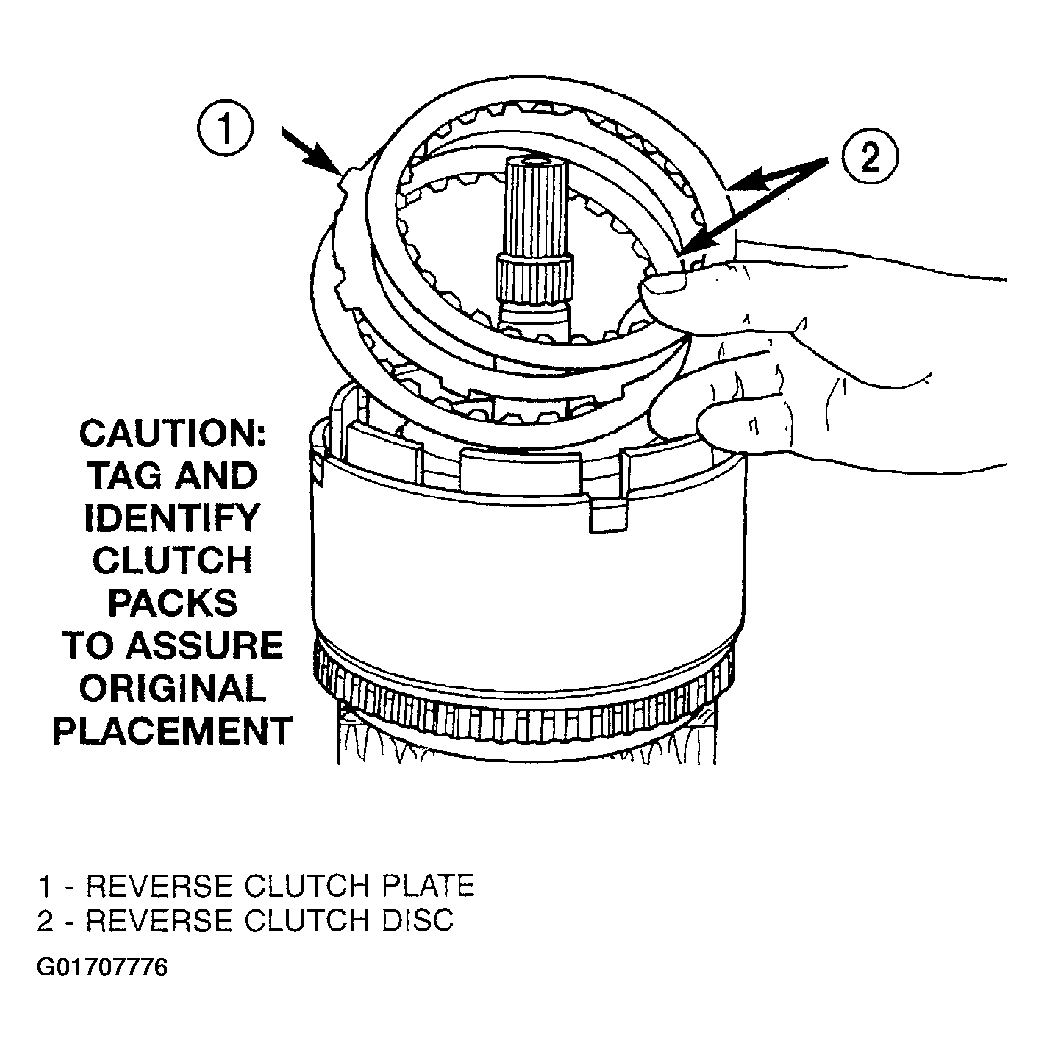

Remove the reverse clutch pack (two fibers/one steel).

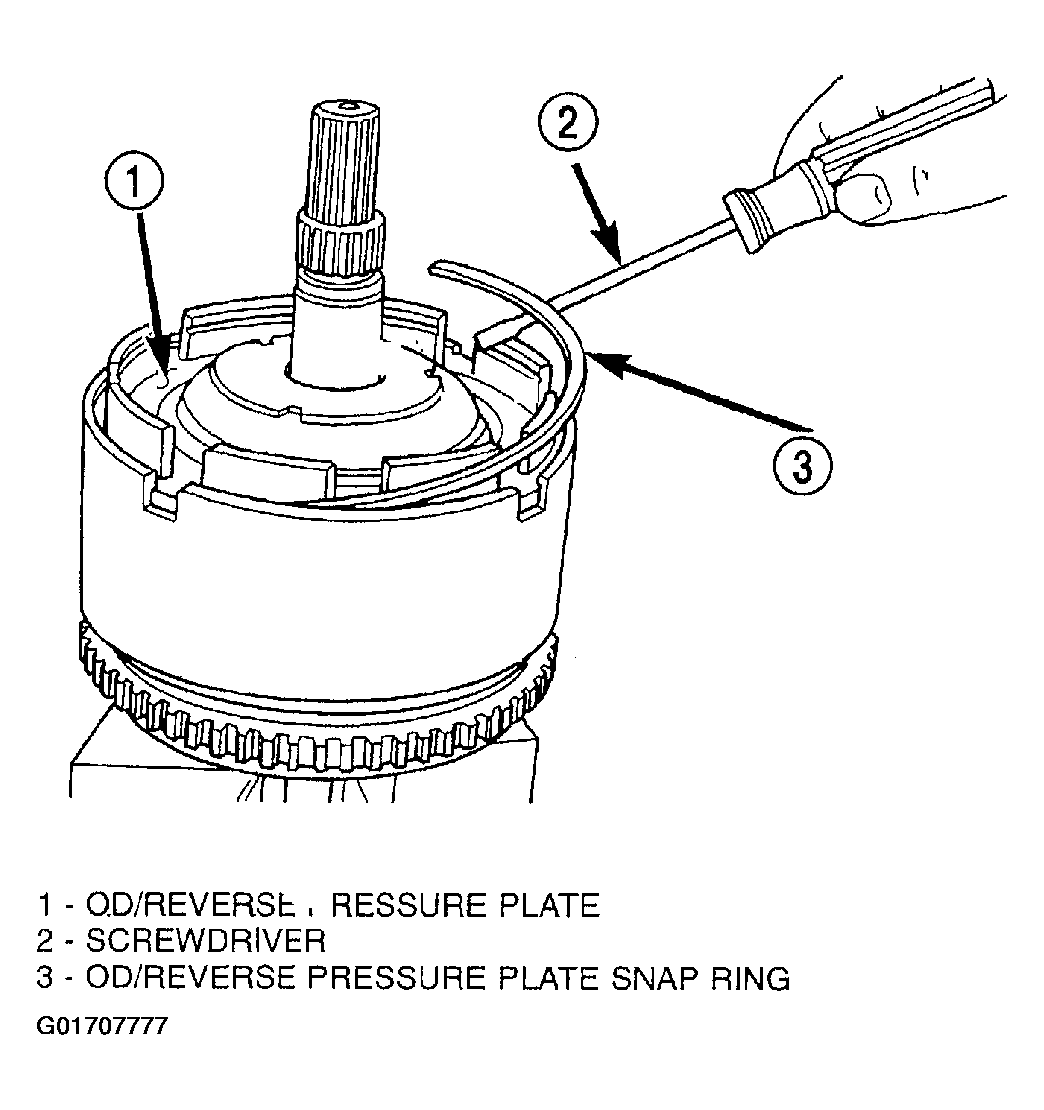

Remove the OD/Reverse reaction plate snap ring.

Fig 6: Removing Reverse Pressure Plate Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

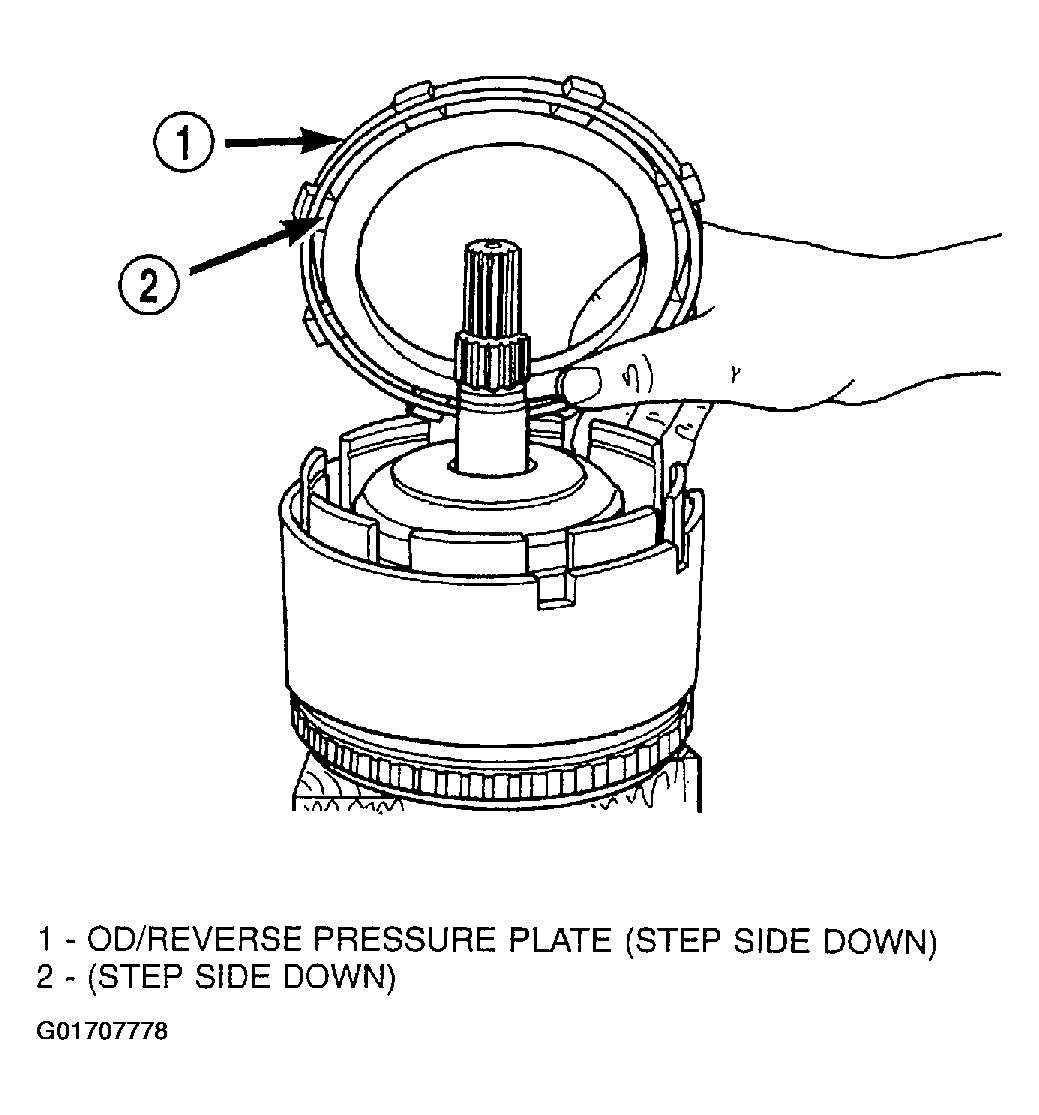

Remove OD/Reverse pressure plate.

Fig 7: Removing O/D Reverse Reaction Plate
Courtesy of DAIMLERCHRYSLER CORP.

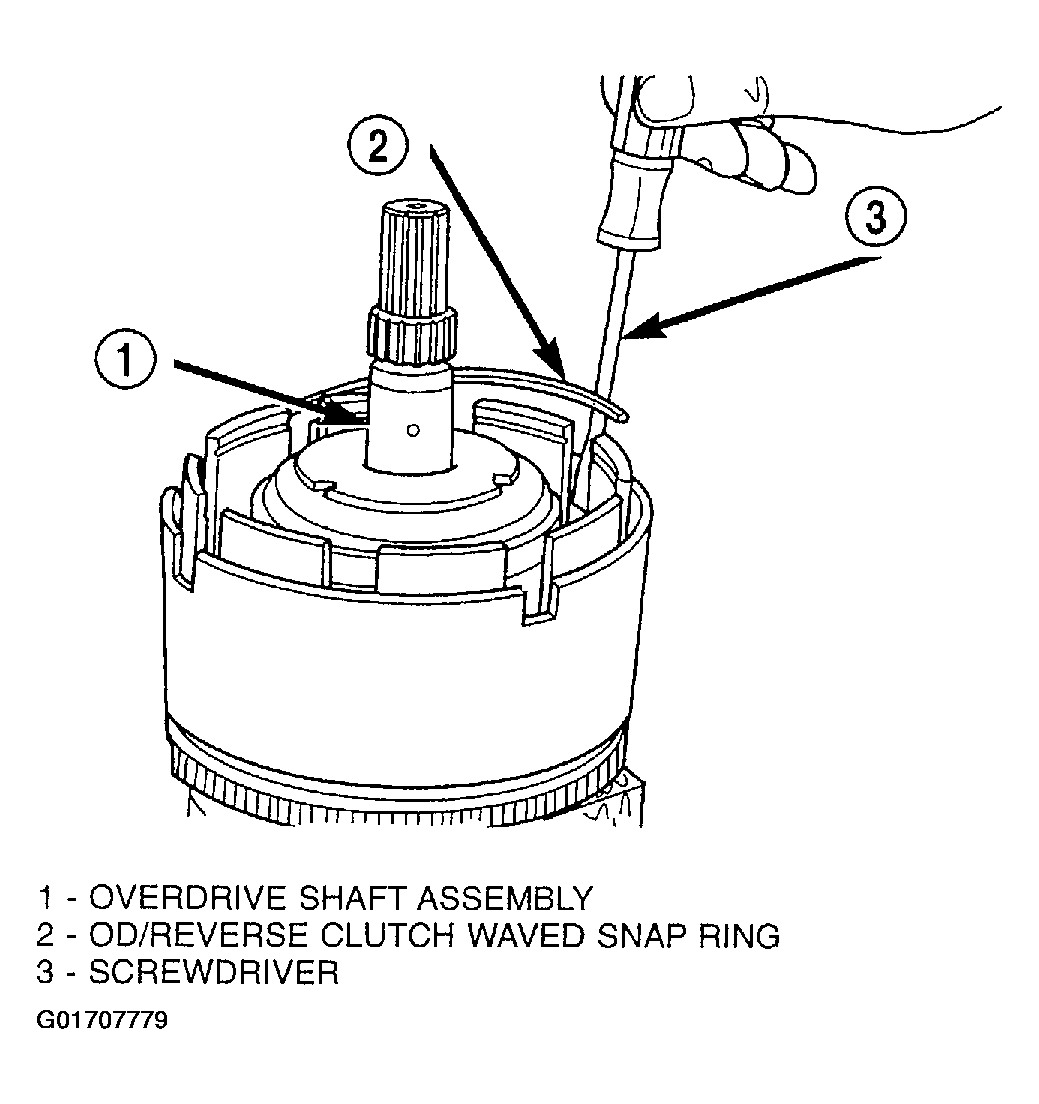

Remove OD/Reverse reaction plate wave snap ring.

Fig 8: Removing Waved Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Tag overdrive clutch pack for reassembly identification.

Fig 9: Removing OD Clutch Pack

Courtesy of DAIMLERCHRYSLER CORP.

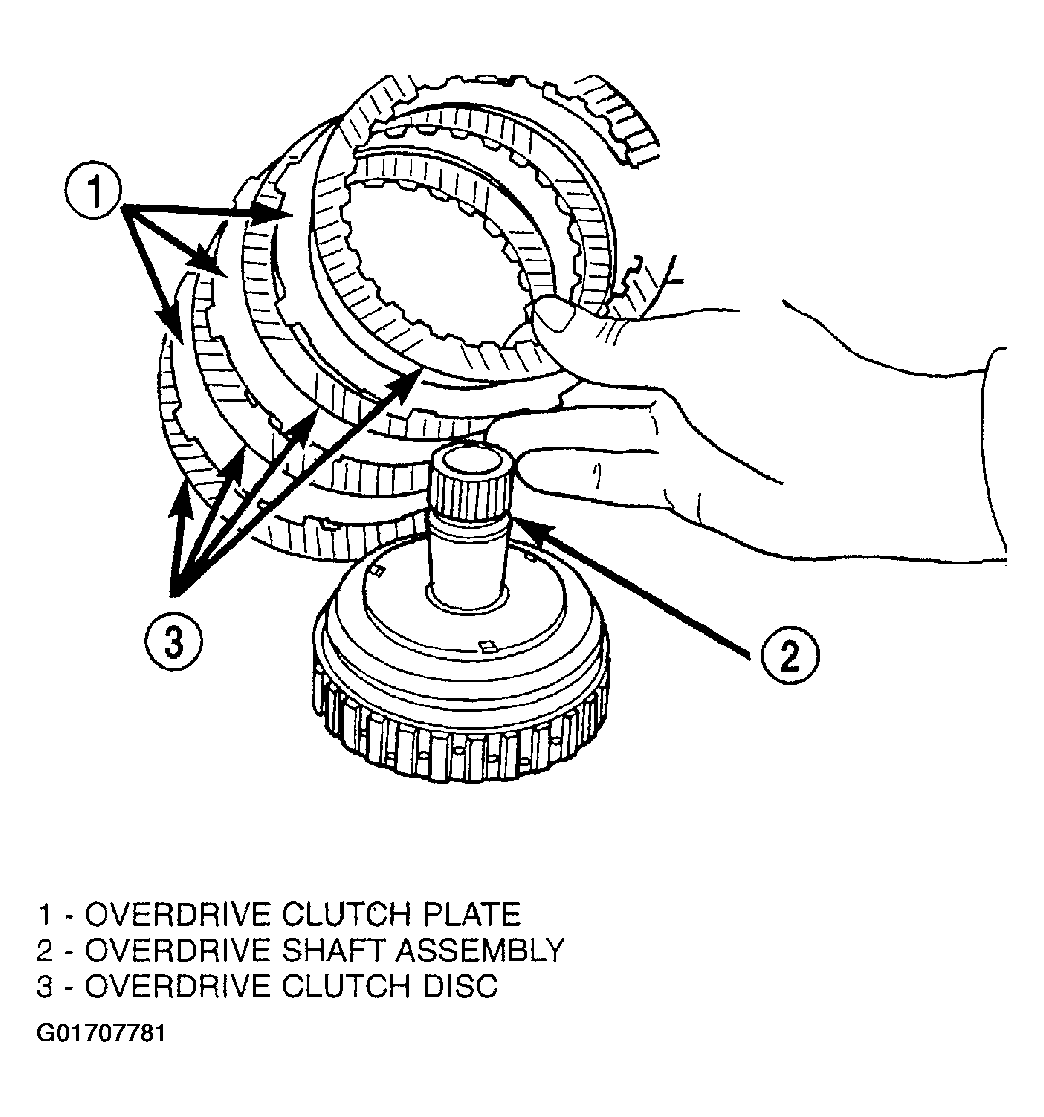

Fig 10: Removing Overdrive Clutch Pack

Courtesy of DAIMLERCHRYSLER CORP.

Remove OD shaft/hub and OD clutch pack.

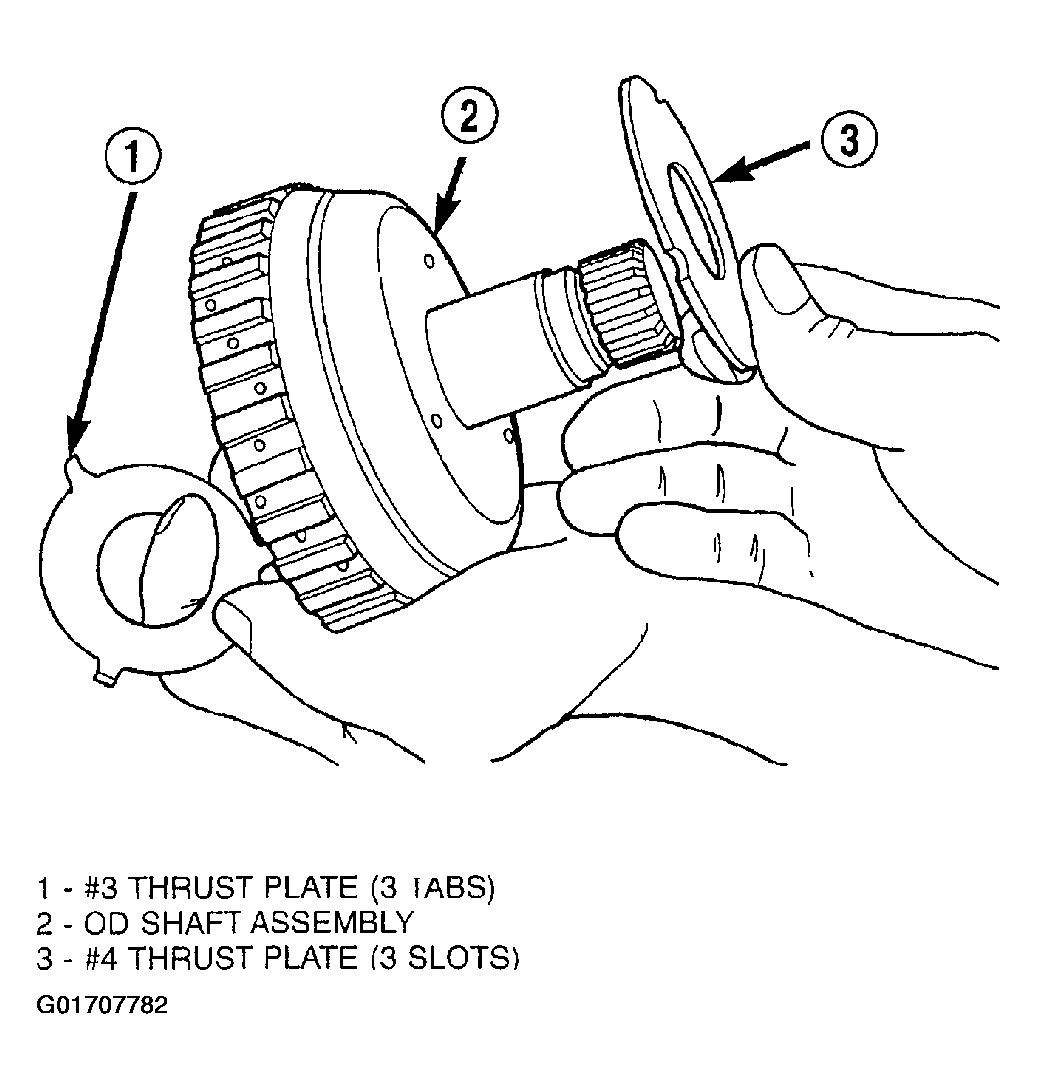

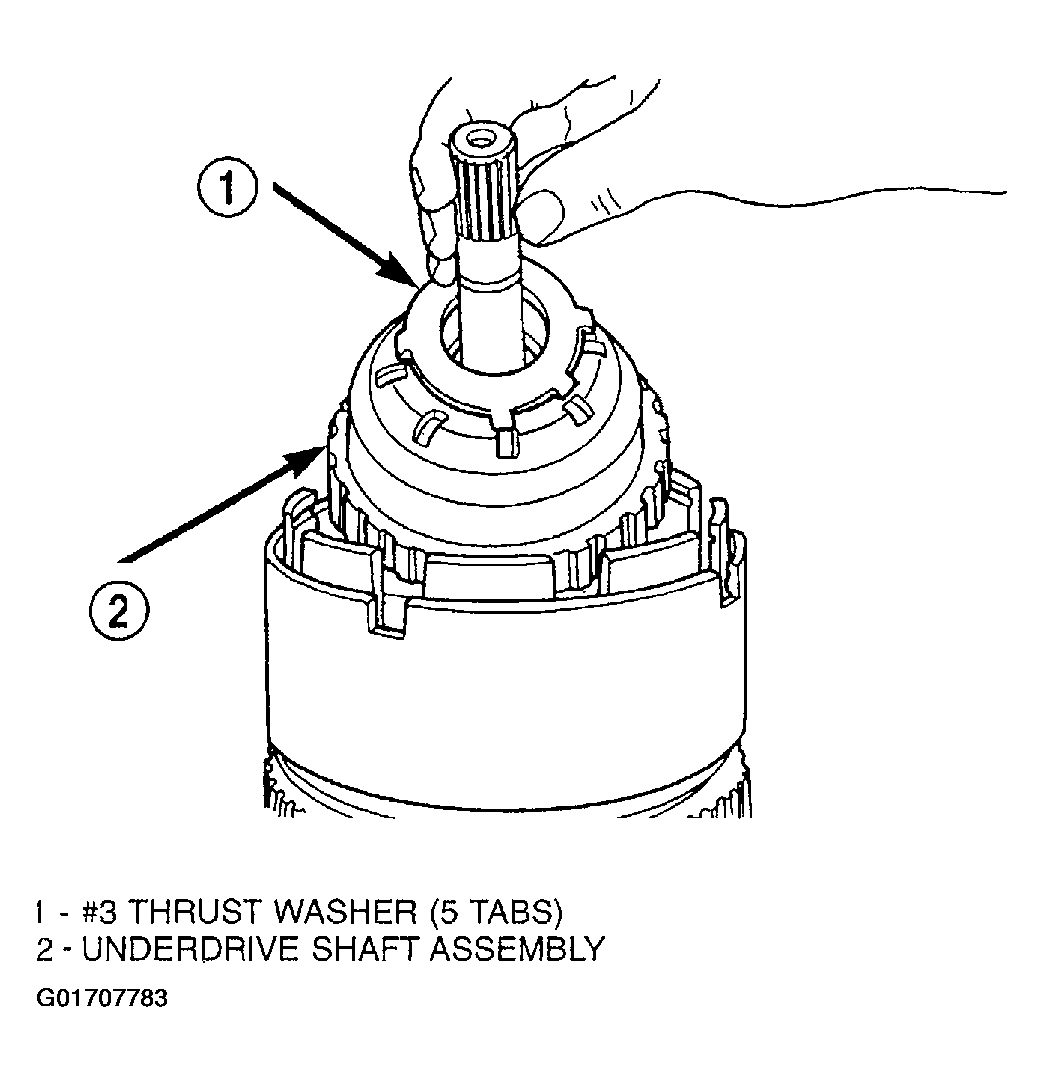

Remove and inspect #3 & #4 thrust washers.

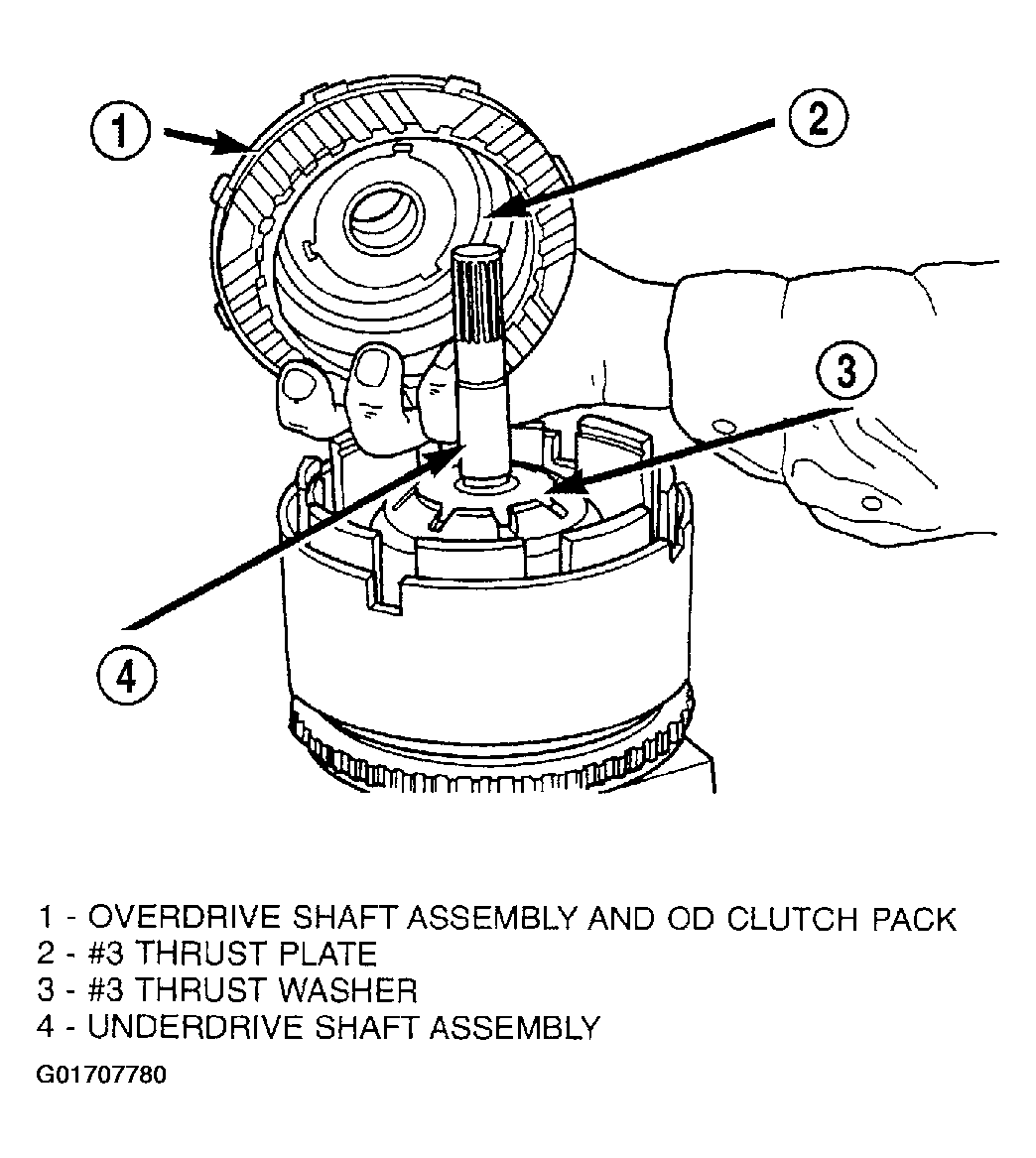

Fig 11: Removing No. 3 & No. 4 Thrust Washers
Courtesy of DAIMLERCHRYSLER CORP.
Remove the underdrive shaft assembly.

Fig 12: Removing Underdrive Shaft Assembly
Courtesy of DAIMLERCHRYSLER CORP.

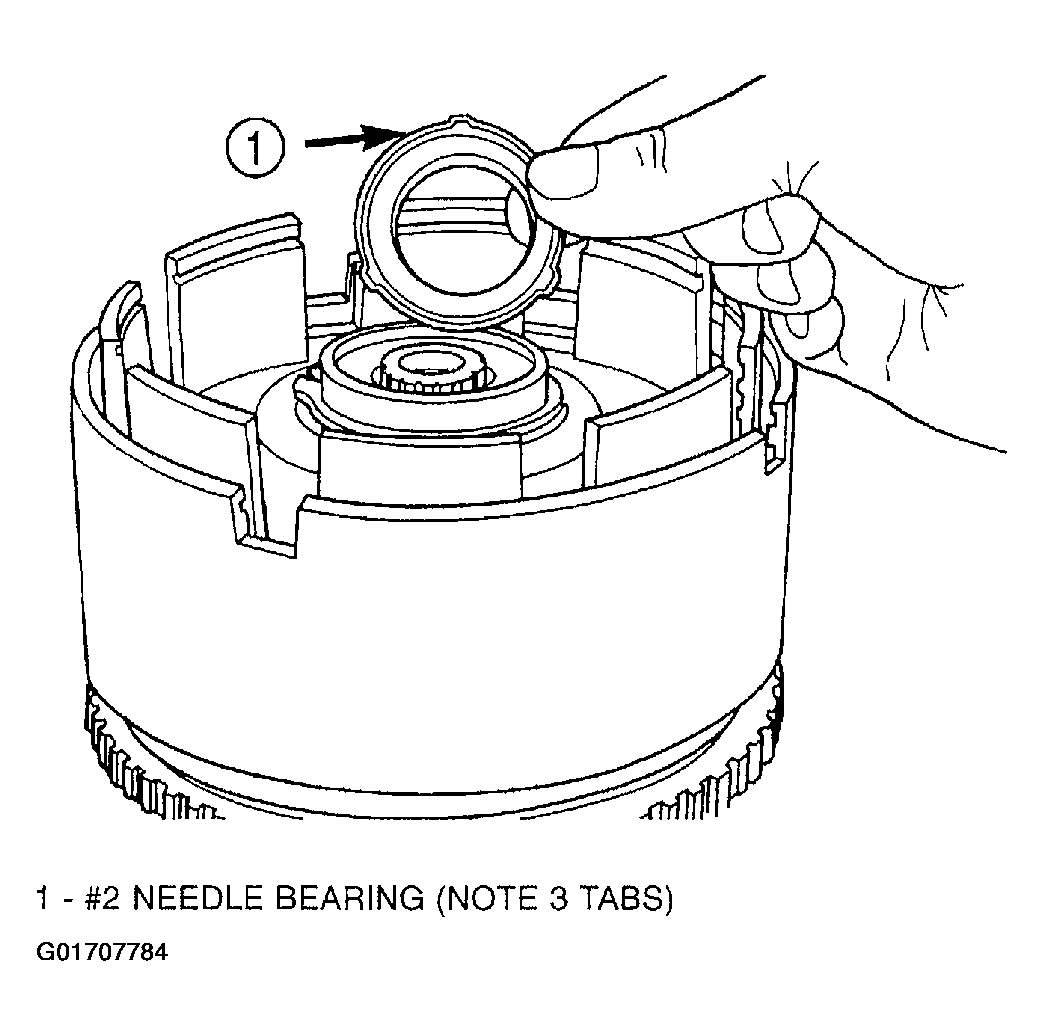

Remove the #2 needle bearing (Fig. 168).

Fig 13: Removing No. 2 Needle Bearing
Courtesy of DAIMLERCHRYSLER CORP.

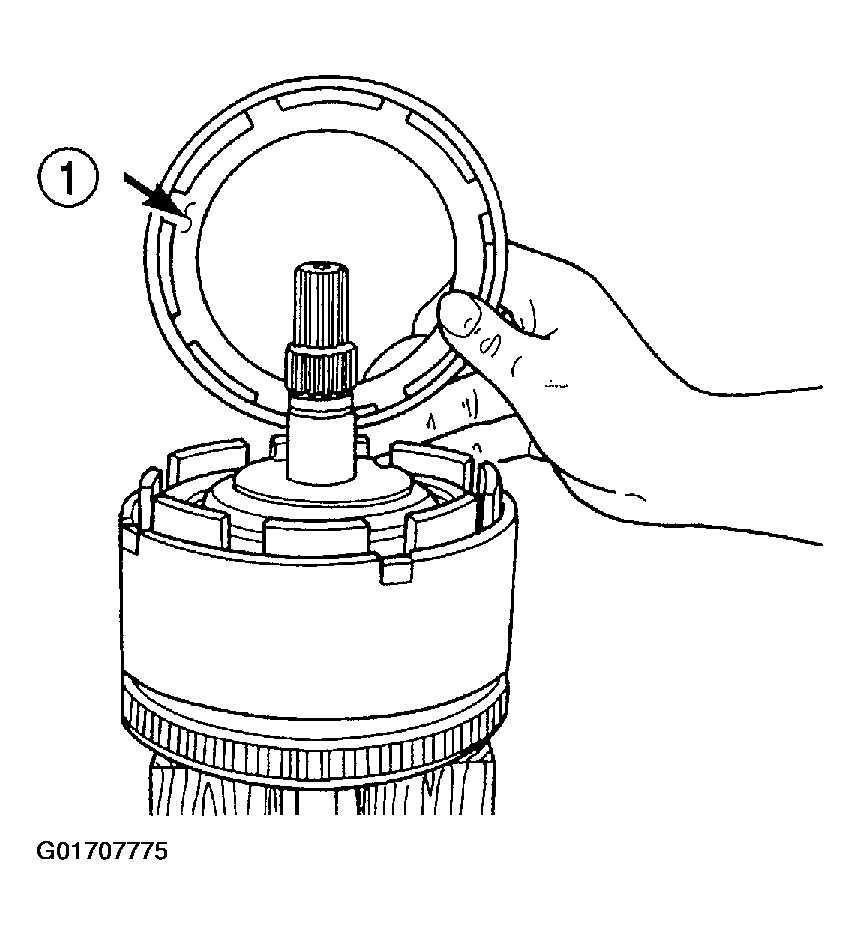

CAUTION: DO NOT REUSE TAPERED SNAP RING

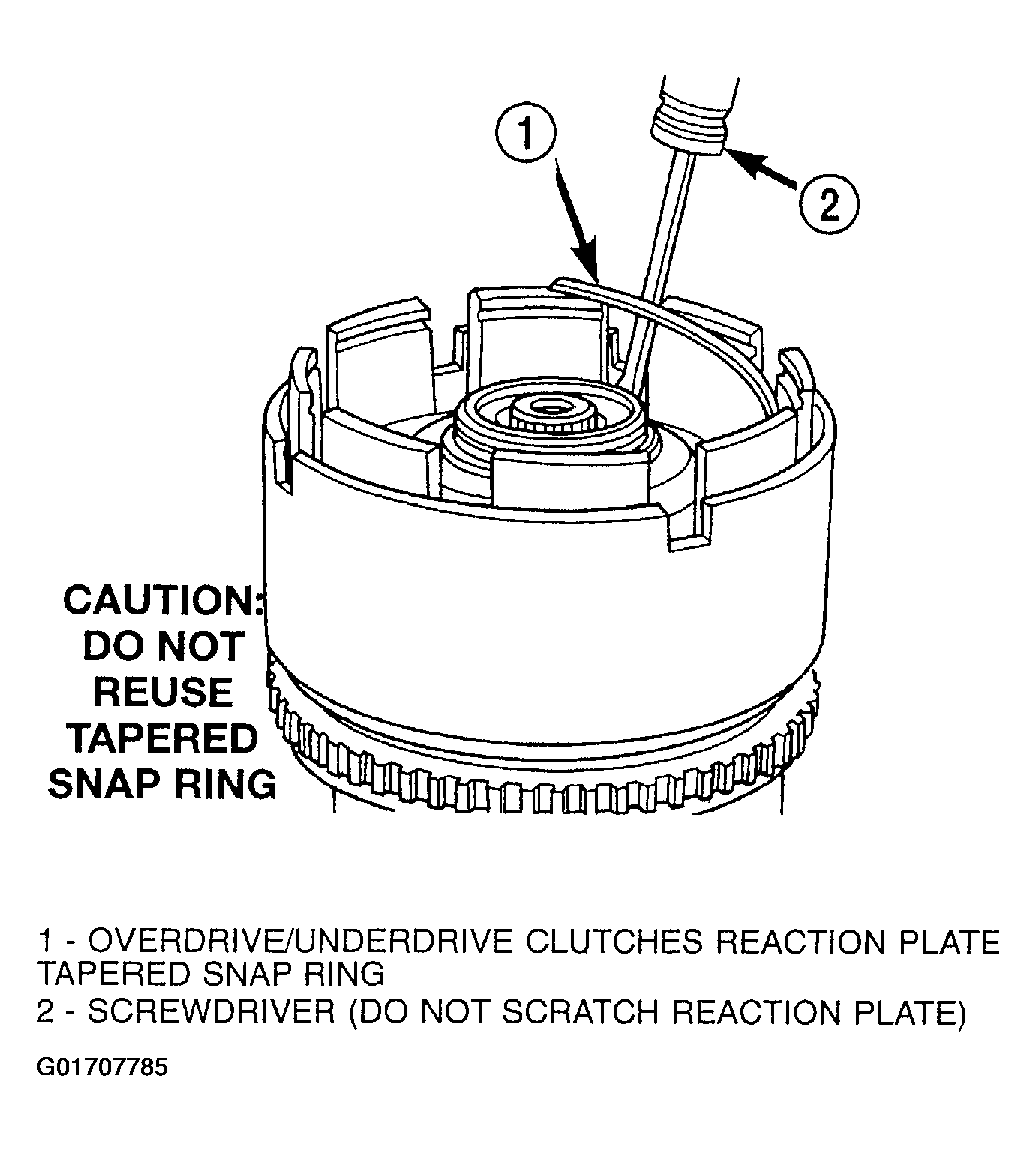

Fig 14: Removing Tapered Snap Ring

Courtesy of DAIMLERCHRYSLER CORP.

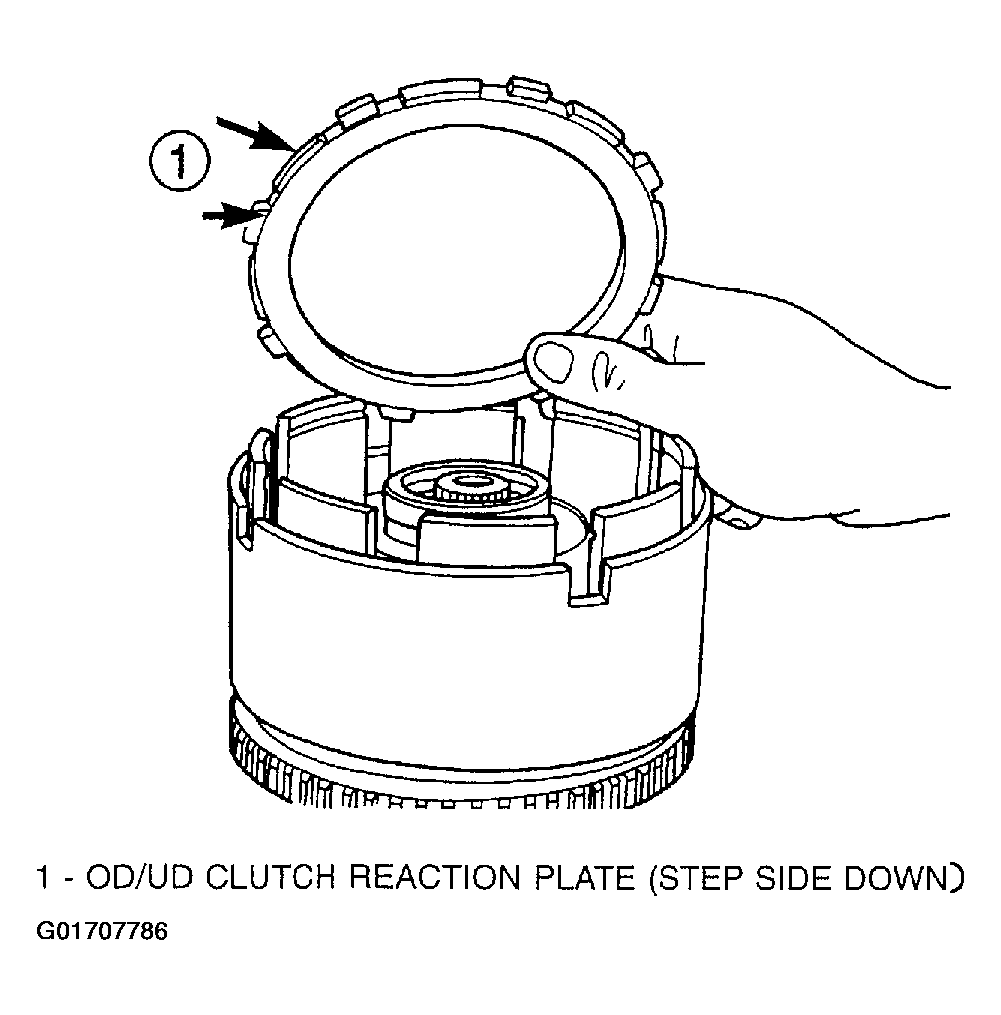

NOTE: The OD/UD clutch reaction plate has a step on both sides. The OD/UD clutches reaction plate goes tapered step side up.

Fig 15: Removing OD/UD Reaction Plate

Courtesy of DAIMLERCHRYSLER CORP.

Remove the OD/UD reaction plate.

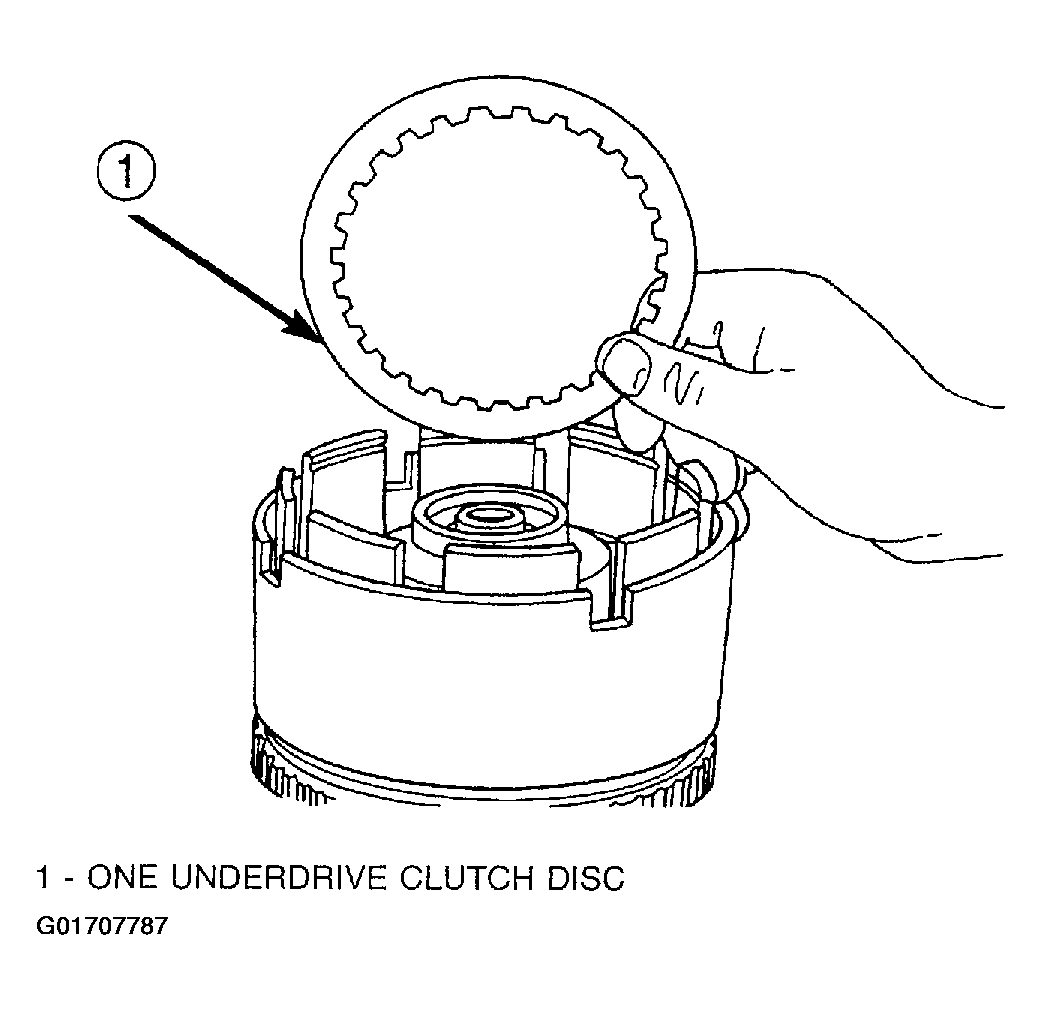

Remove the first UD clutch disc.

Fig 16: Removing Last UD Clutch Disc
Courtesy of DAIMLERCHRYSLER CORP.

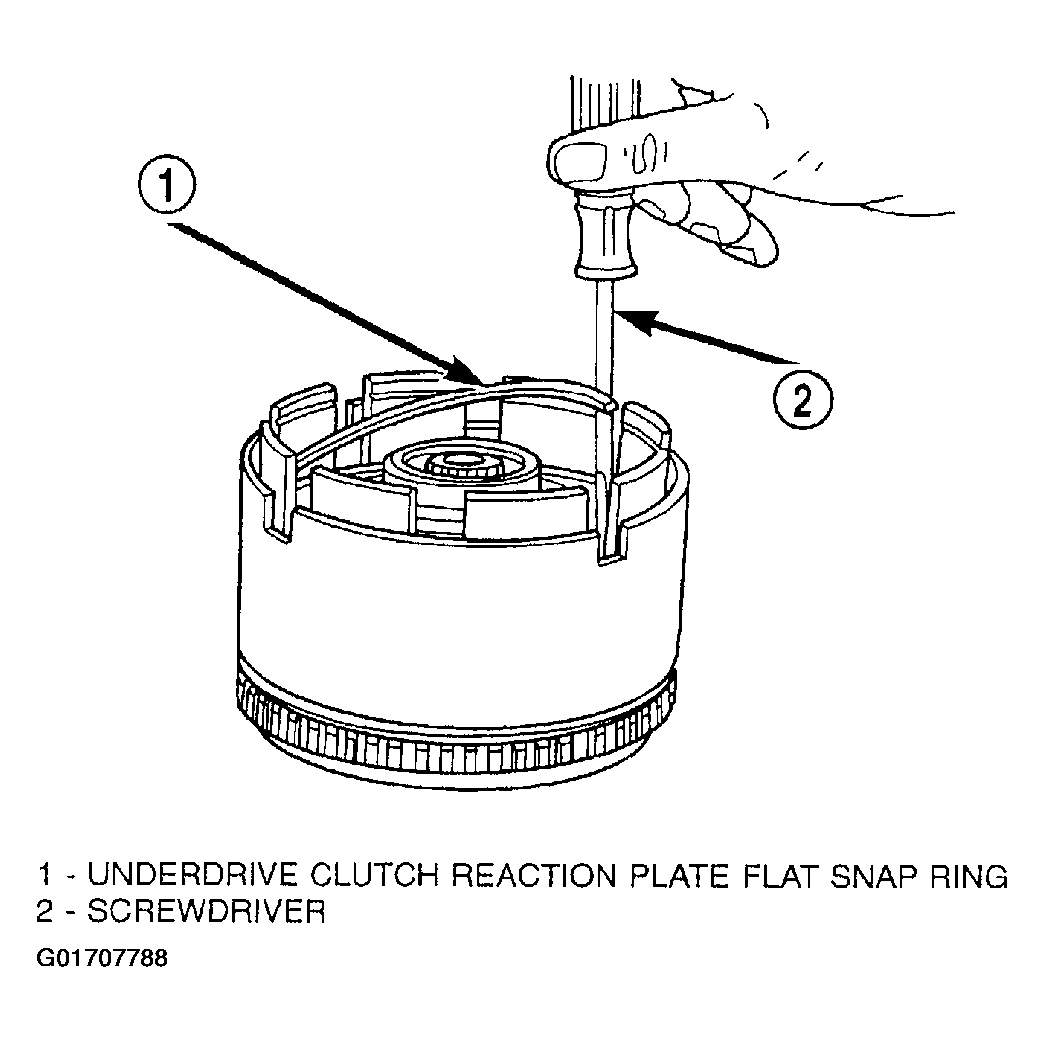

Remove the UD clutch flat snap ring.

Fig 17: Removing UD Clutch Flat Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

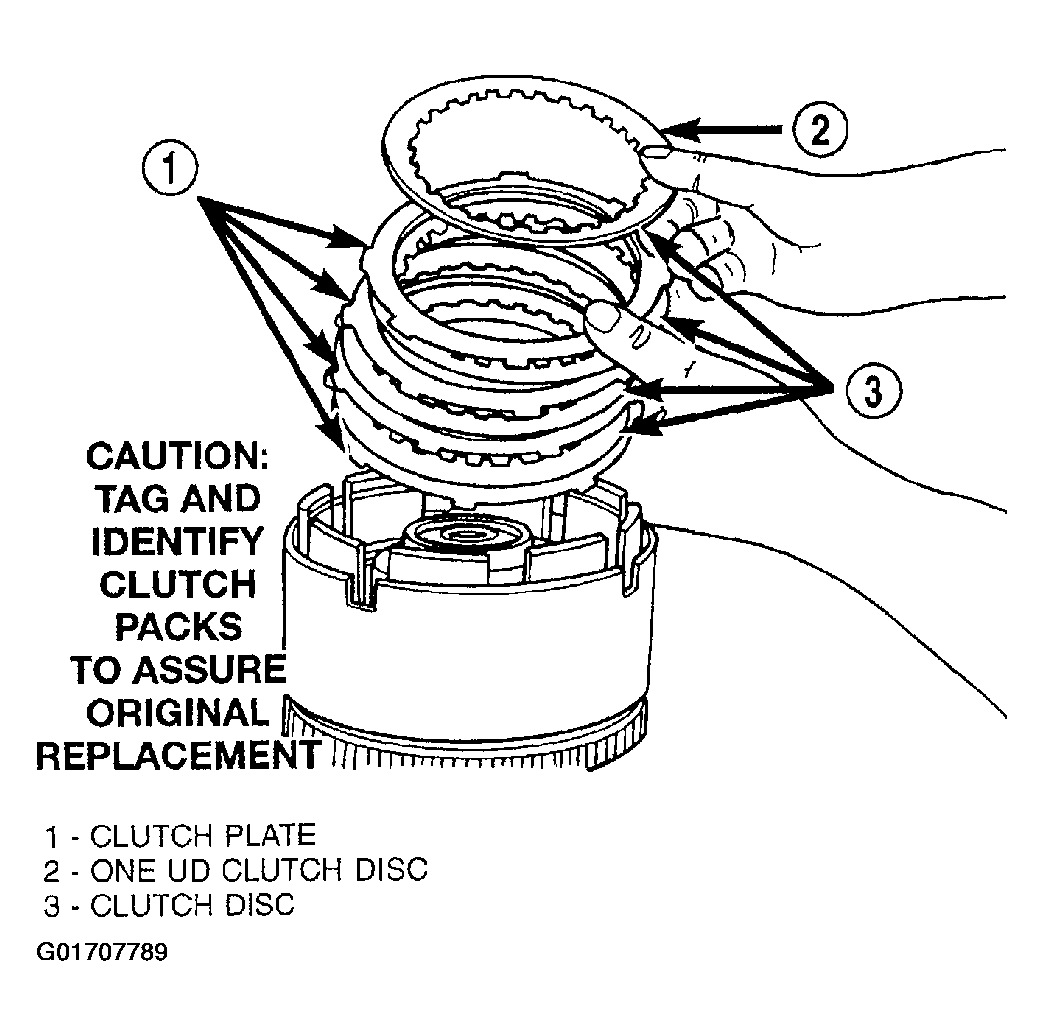

CAUTION: TAG AND IDENTIFY CLUTCH PACKS TO ASSURE ORIGINAL REPLACEMENT

NOTE: Tag underdrive clutch pack for reassembly identification.

Fig 18: Removing Underdrive Clutch Pack

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Compress return spring just enough to remove or install snap ring.

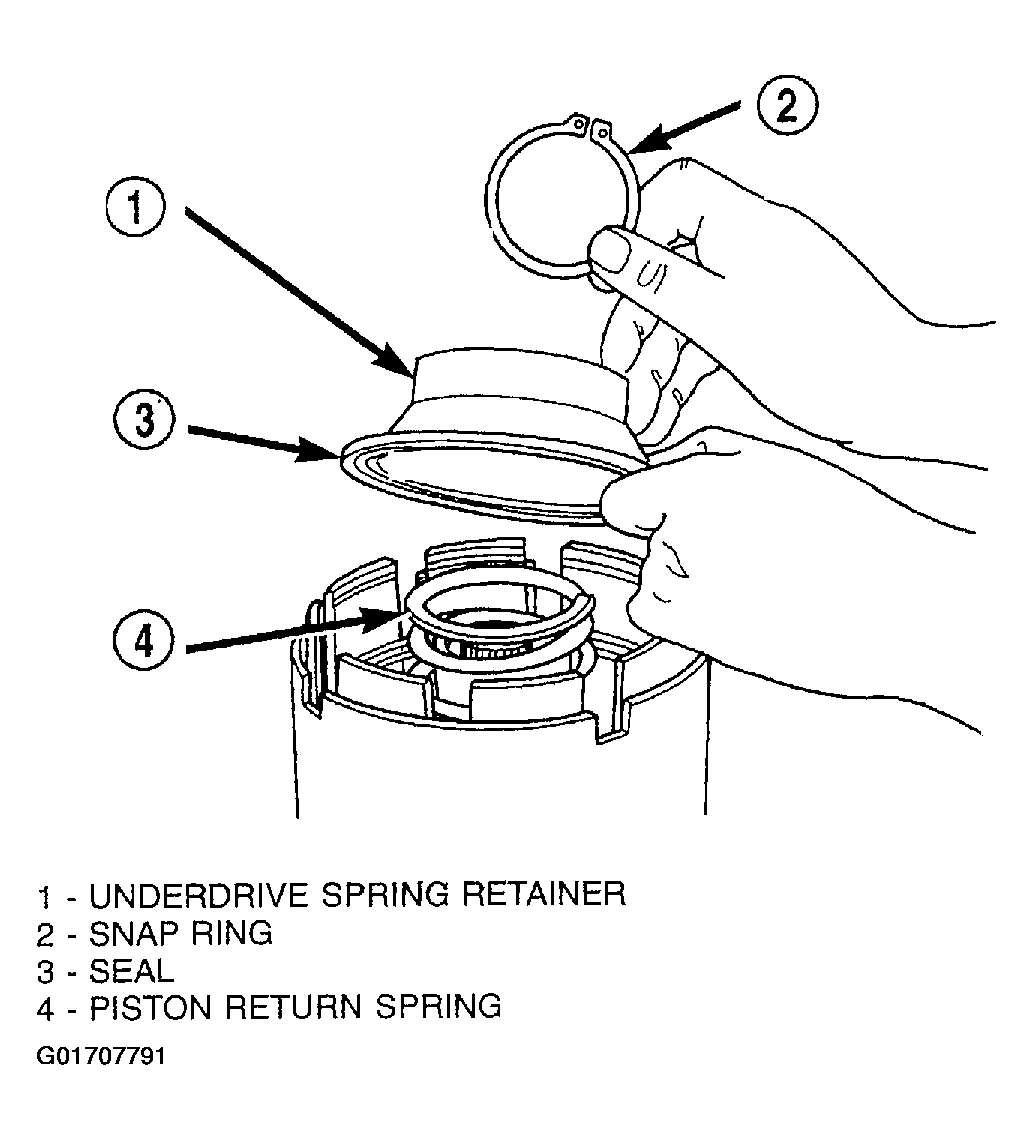

Fig 19: Removing UD Spring Retainer Snap Ring

Courtesy of DAIMLERCHRYSLER CORP.

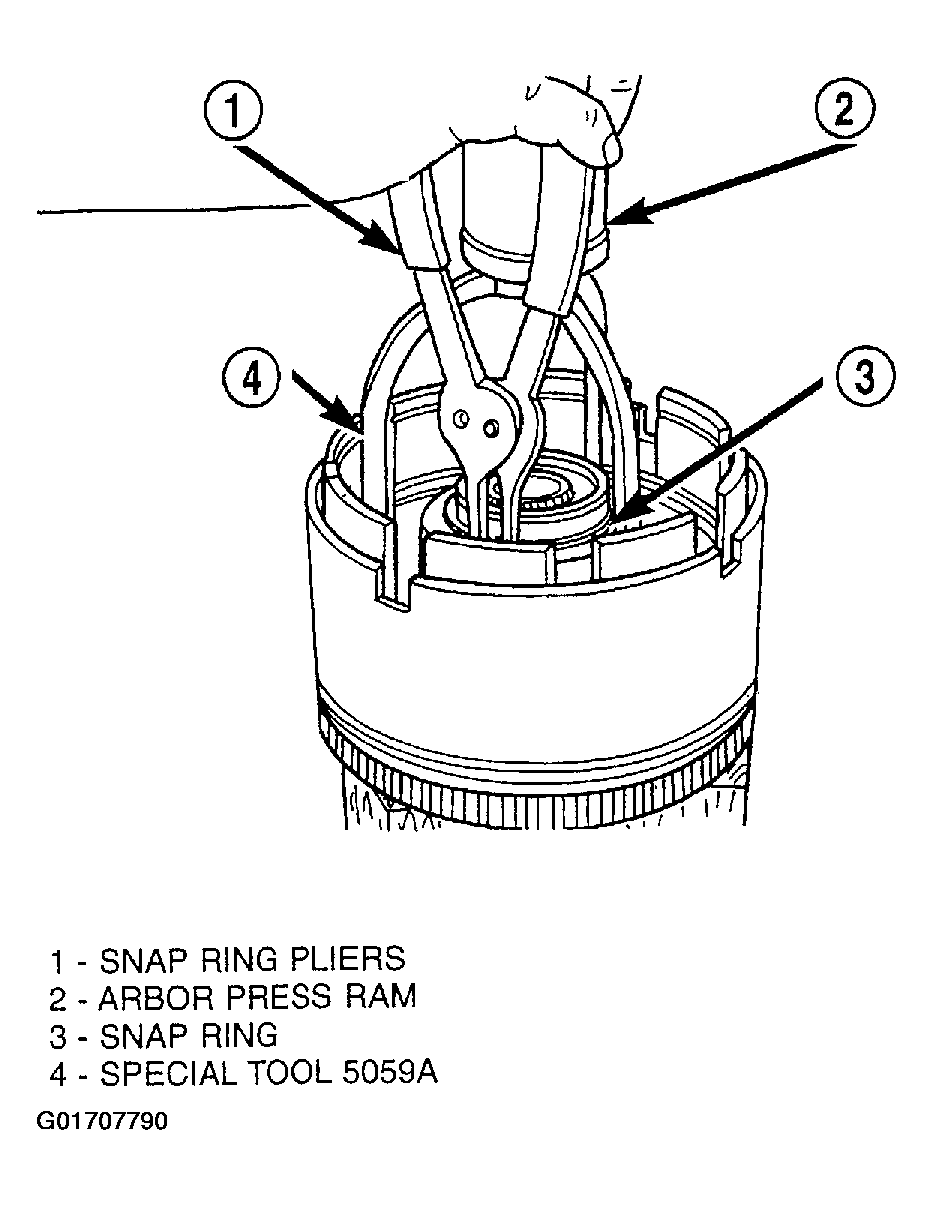

Using Tool 5059A and an arbor press, compress UD clutch piston enough to remove snap ring (Fig. 174), (Fig. 175).
Remove spring retainer.

Fig 20: Removing Return Spring & Retainer
Courtesy of DAIMLERCHRYSLER CORP.

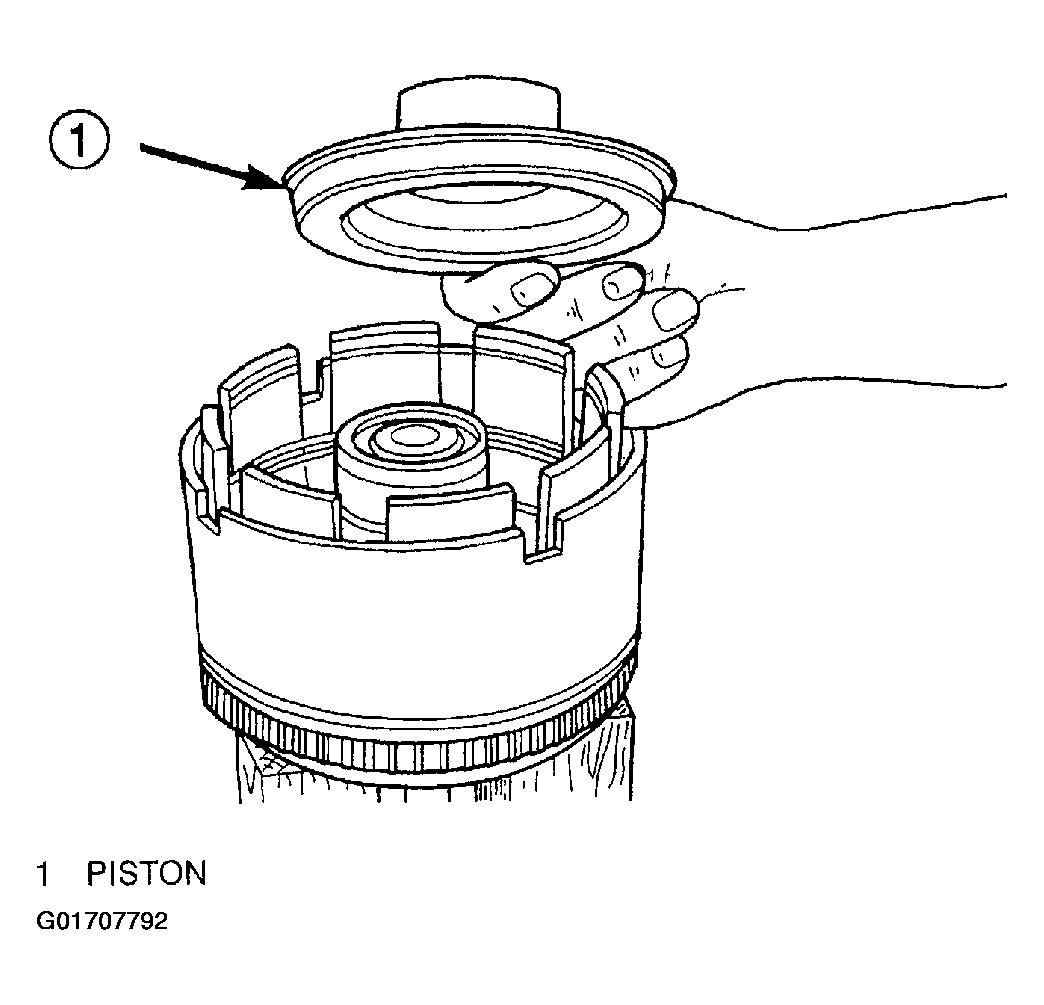

Remove UD clutch piston.

Fig 21: Removing Underdrive Clutch Piston
Courtesy of DAIMLERCHRYSLER CORP.

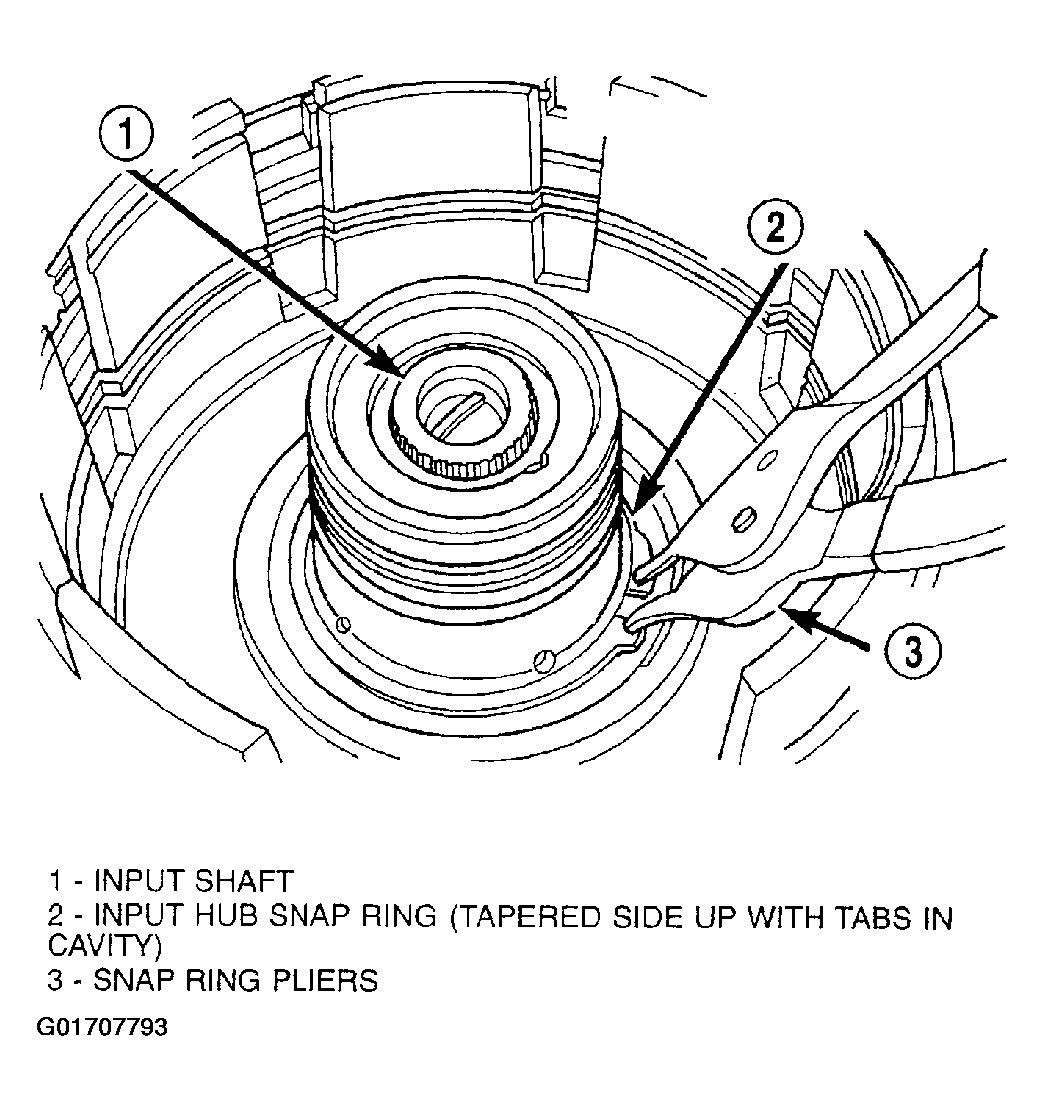

Remove input hub tapered snap ring.

Fig 22: Removing Input Hub Tapered Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

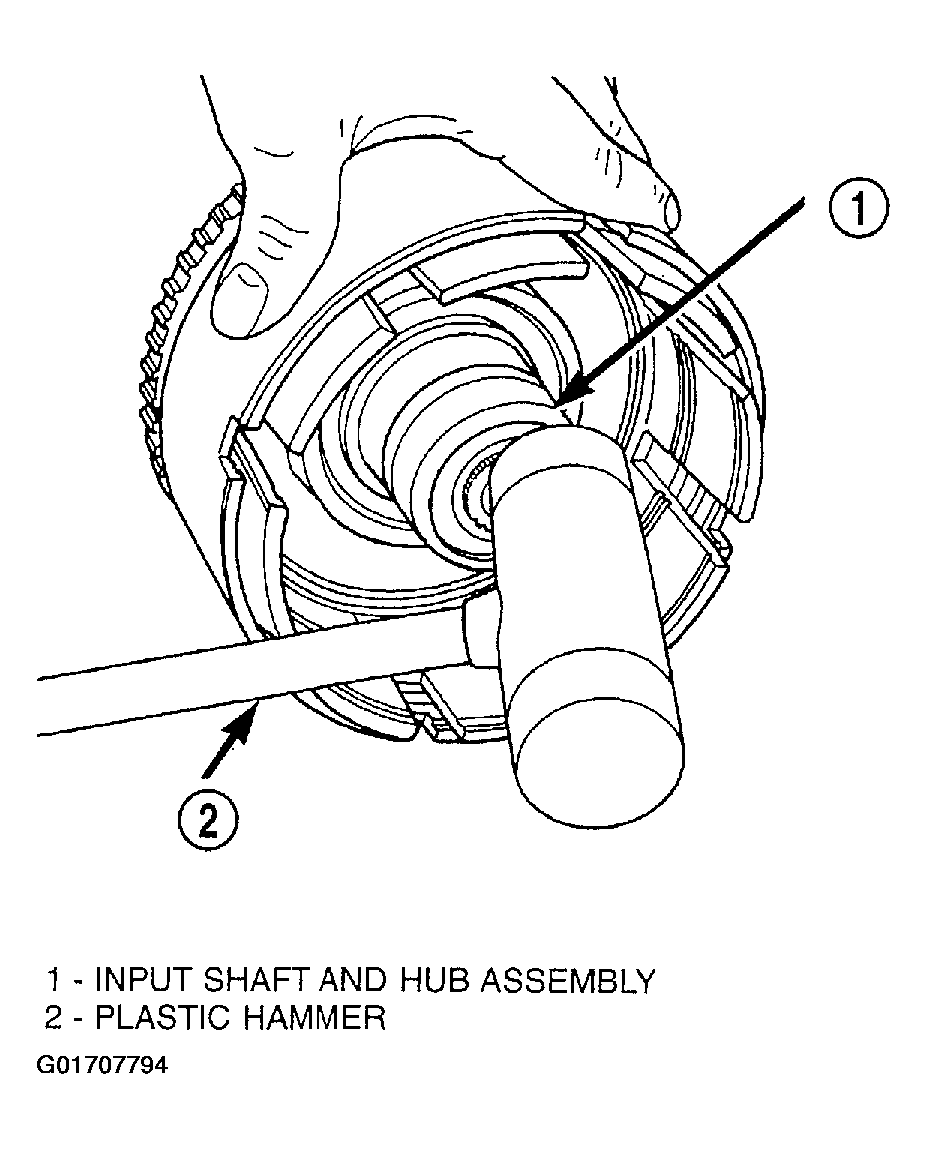

Tap on input hub with soft faced hammer and separate input hub from OD/Reverse piston and clutch retainer.

Fig 23: Tapping Input Hub
Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Removed Input Hub
Courtesy of DAIMLERCHRYSLER CORP.

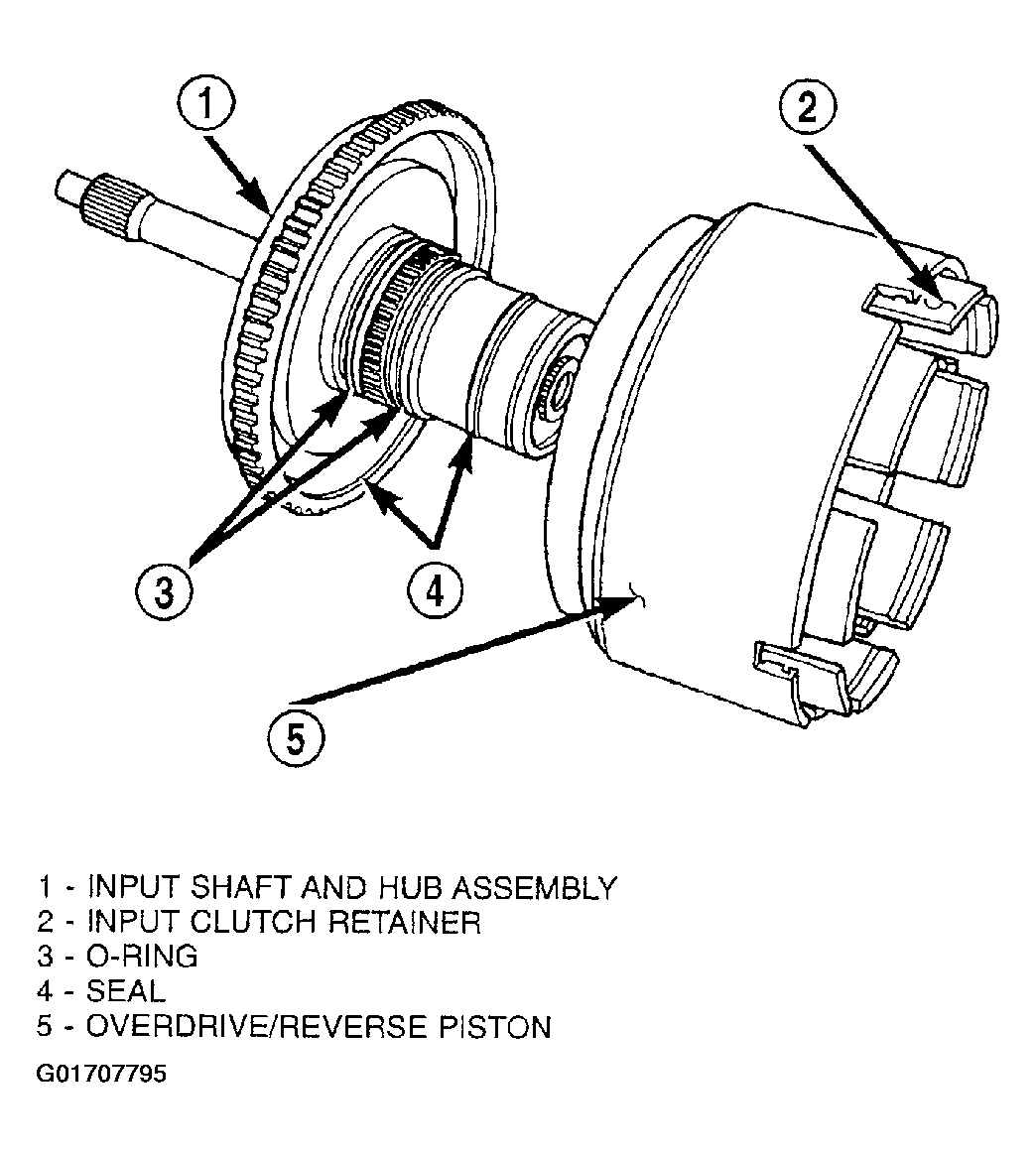

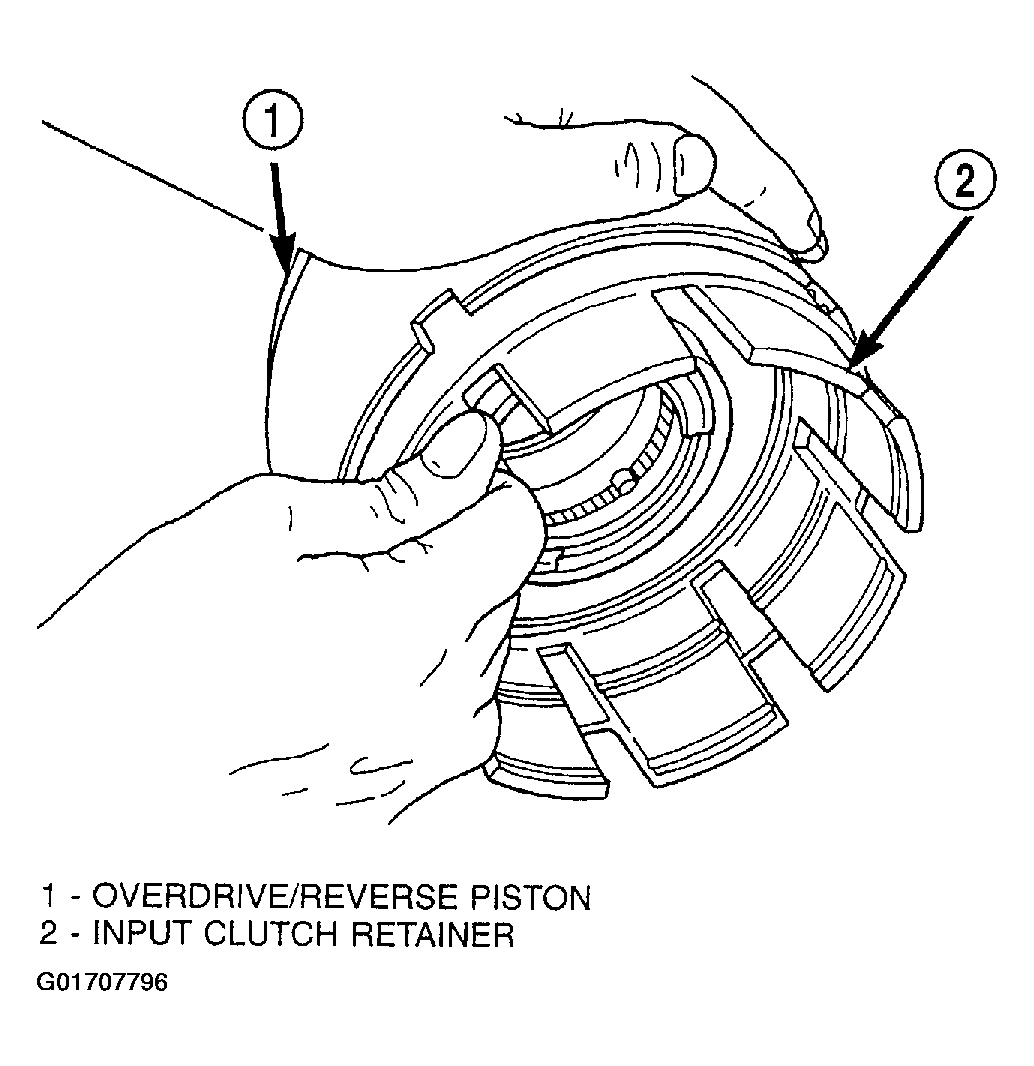

Separate clutch retainer from OD/Reverse piston.

Fig 25: Pulling Retainer From Piston
Courtesy of DAIMLERCHRYSLER CORP.

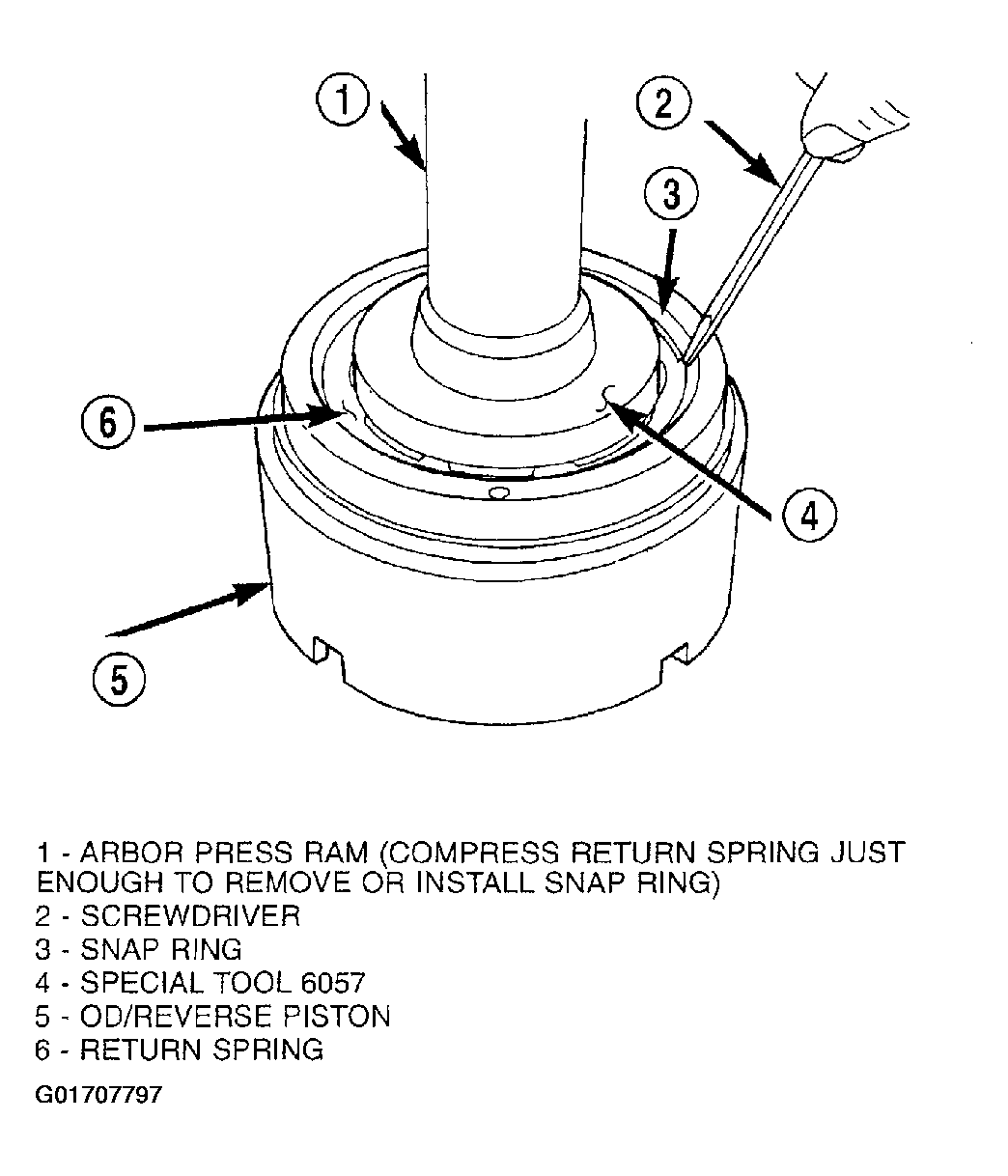

Using Tool 6057 and an arbor press, compress return OD/Reverse piston return spring just enough to remove snap ring.

Fig 26: Removing Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

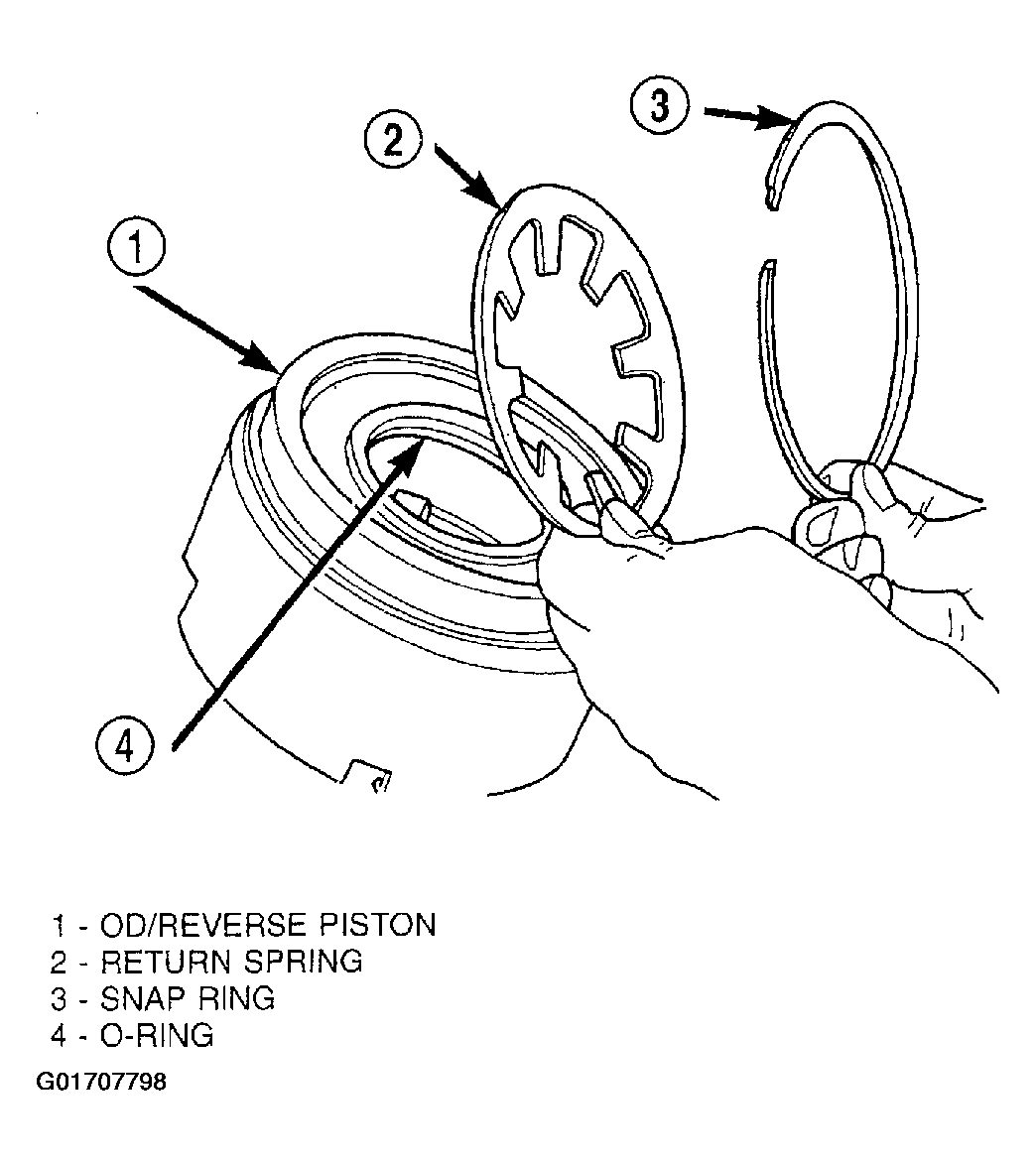

Fig 27: Removing Return Spring & Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

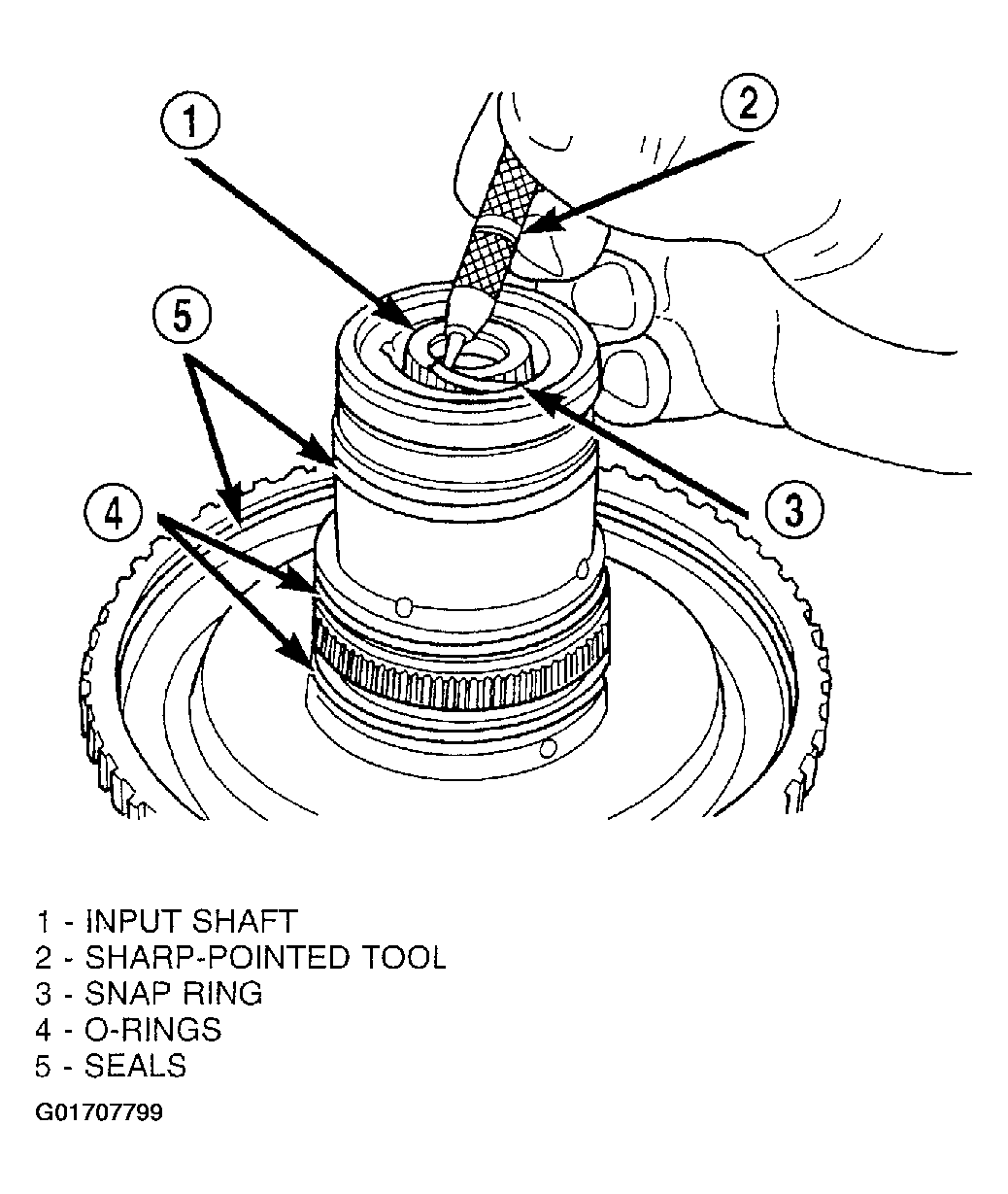

Remove input shaft to input clutch hub snap ring.

Fig 28: Removing Input Shaft Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

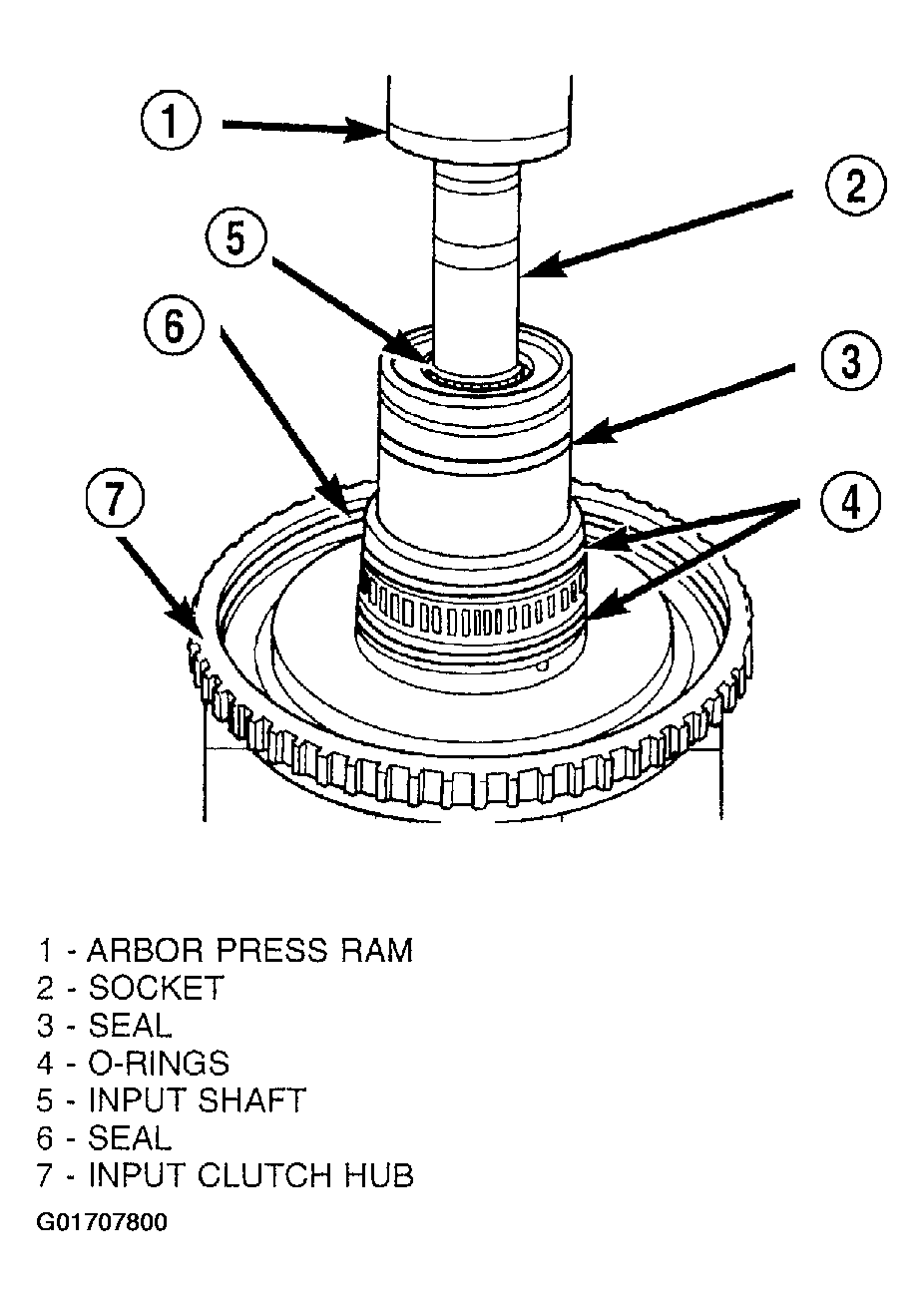

Using a suitably sized socket and an arbor press, remove input shaft from input shaft hub.

Fig 29: Removing Input Shaft
Courtesy of DAIMLERCHRYSLER CORP.
