Powertrain Control Module C3 Connector End View

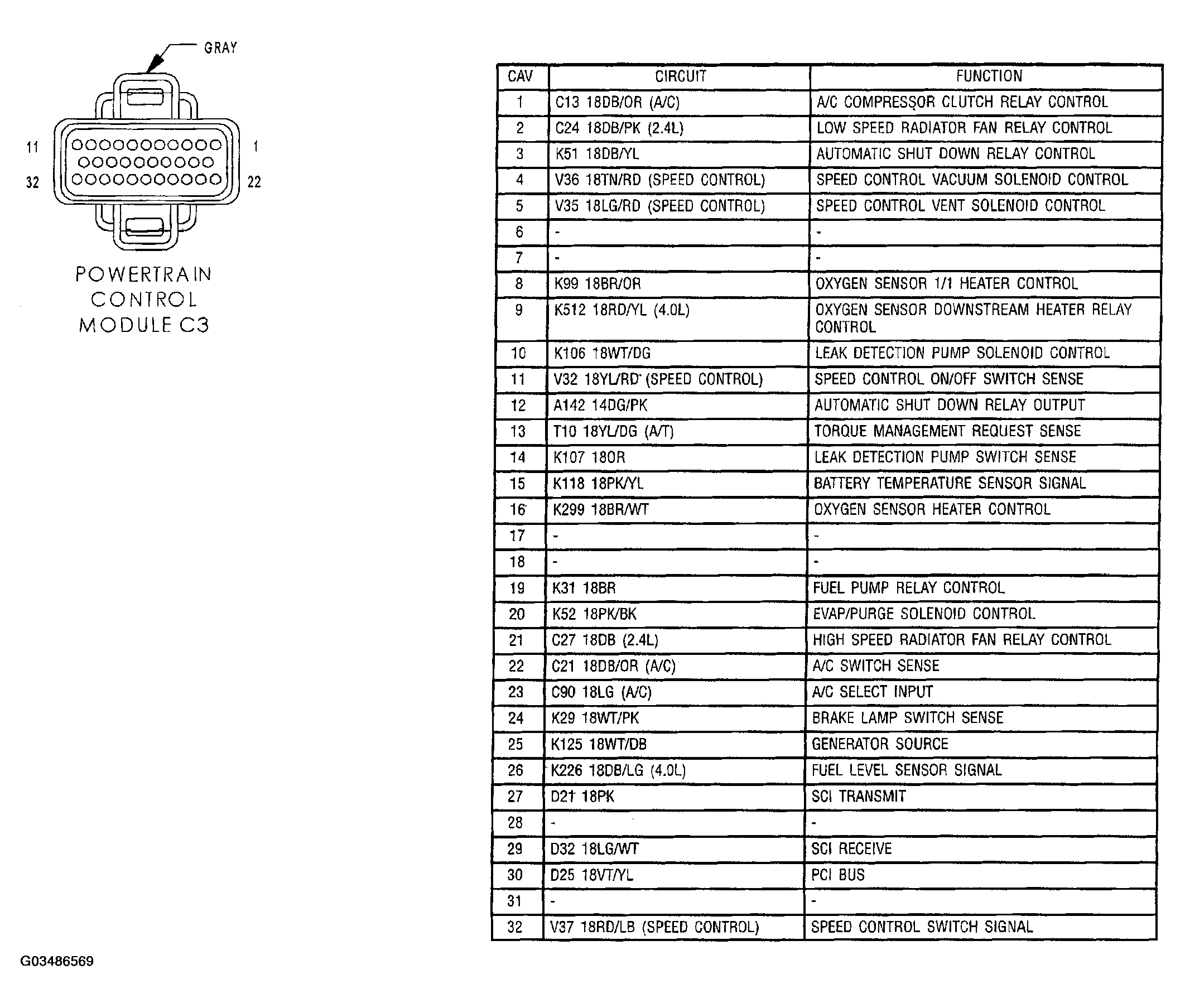

Fig 1: Powertrain Control Module Connector End View (C3)

G03486569

Courtesy of DAIMLERCHRYSLER CORP.
