Coolant Recovery Container: Removal

  1. Disconnect the hose from radiator filler neck.
  2. Remove coolant recovery bottle.

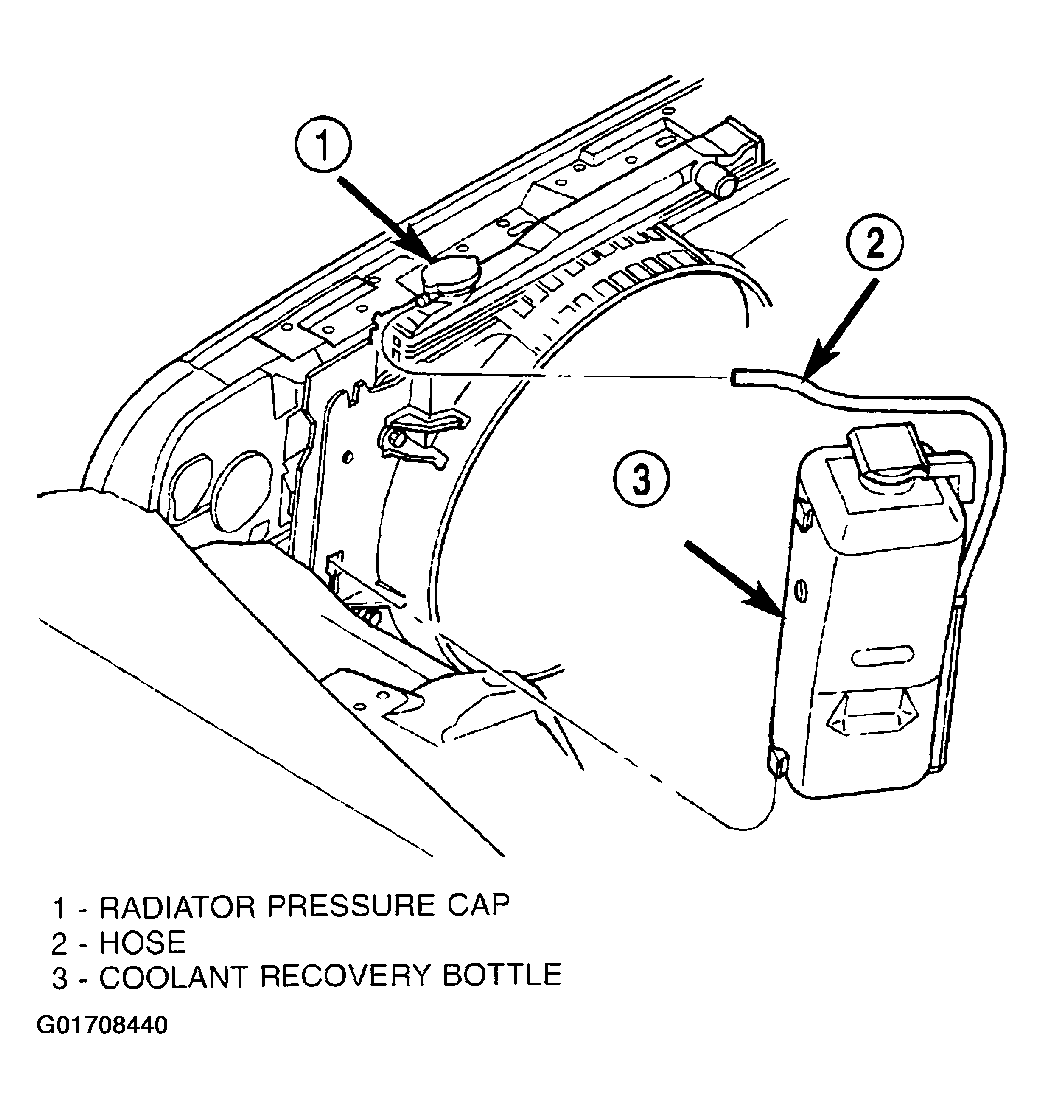

    Fig 1: Removing Coolant Reserve/Overflow Bottle
    G01708440Courtesy of DAIMLERCHRYSLER CORP.
