Home >> Jeep >> 2004 >> Wrangler SE, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Gear >> Specifications >> Torque Chart

Torque Chart

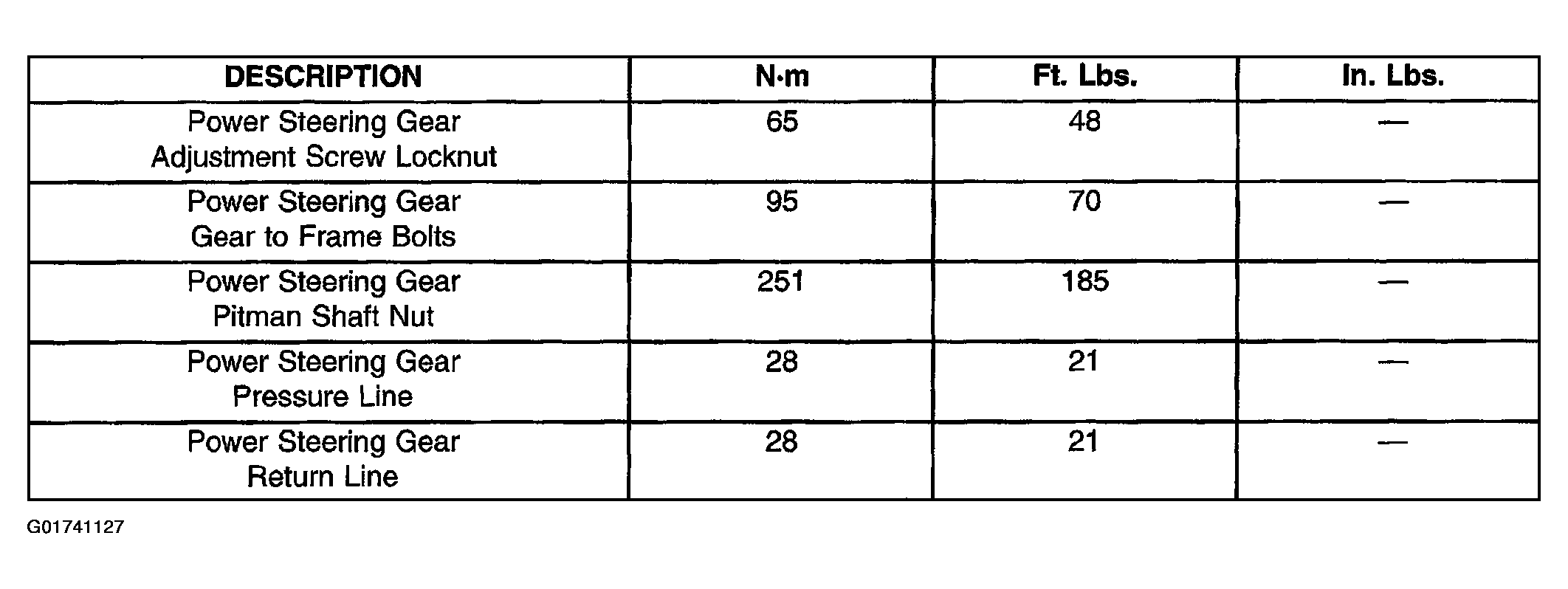

Fig 1: Power Steering Gear Torque Specifications Table

G01741127

Courtesy of DAIMLERCHRYSLER CORP.
