Oil Pan: Installation

WARNING: This page is about a different car, the 2003 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pan gasket to the block.
  2. Apply a 3MM (1/8 inch) bead of Mopar® Engine RTV at the oil pump to engine block parting line (Fig 1).

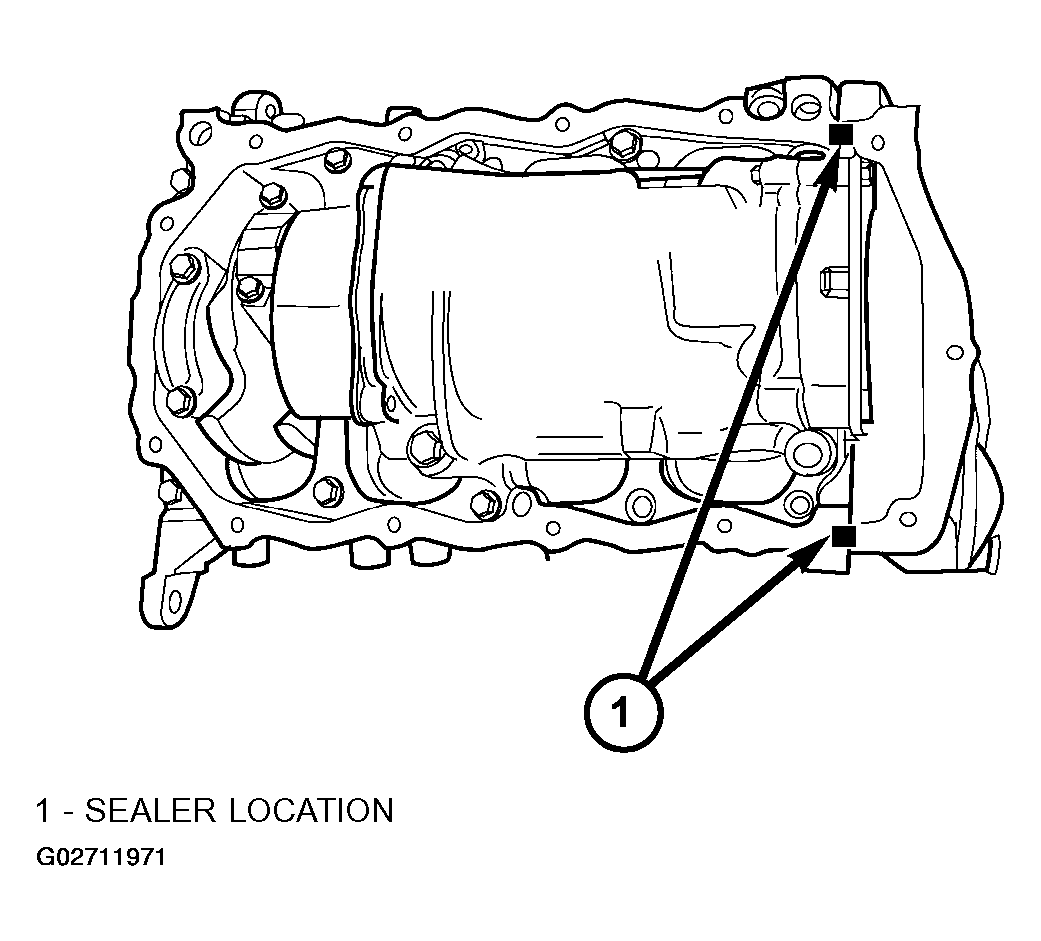

    Fig 1: Applying Mopar Engine RTV At Oil Pump To Engine Block Parting Line
    G02711971Courtesy of DAIMLERCHRYSLER CORP.
  3. Install pan and tighten the screws to 12 N.m (105 in. lbs.).
  4. Lower engine, and remove Special Tool 8534.
  5. Tighten engine mount thru bolts.
  6. Raise the front axle into position, and reinstall front axle mounting bolts. If equipped.
  7. Reconnect exhaust pipe to manifold.
  8. Install structural collar, if equipped.
  9. Lower vehicle.
  10. Fill engine crankcase with proper oil to correct level.
  11. Reinstall air cleaner assembly.
