Ambient Temperature Sensor Connector End View

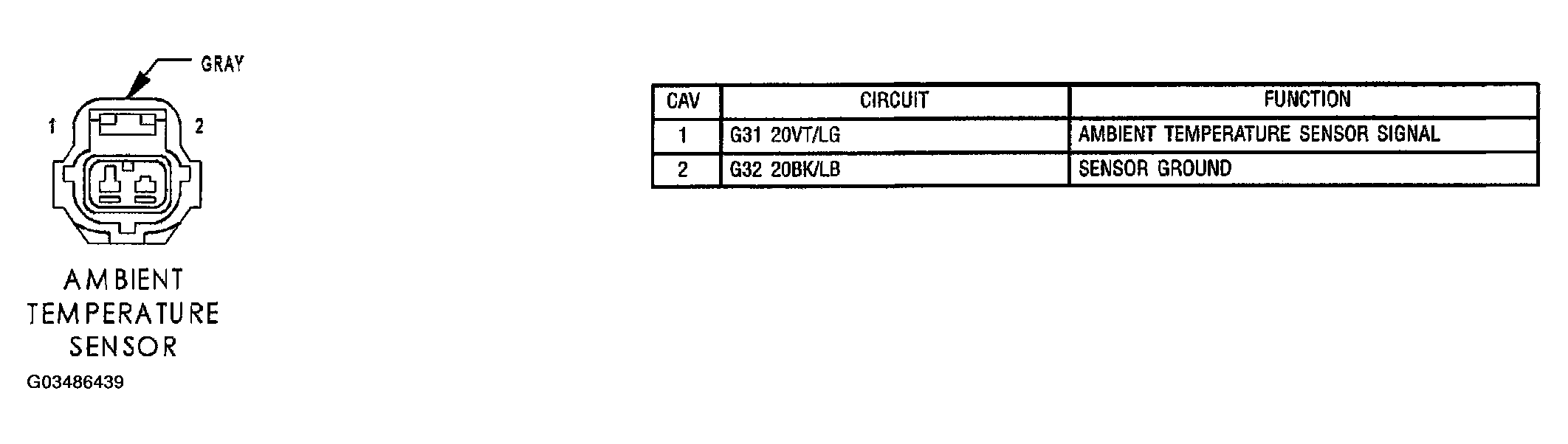

Fig 1: Ambient Temperature Sensor Connector End View

G03486439

Courtesy of DAIMLERCHRYSLER CORP.
