Interior Lighting

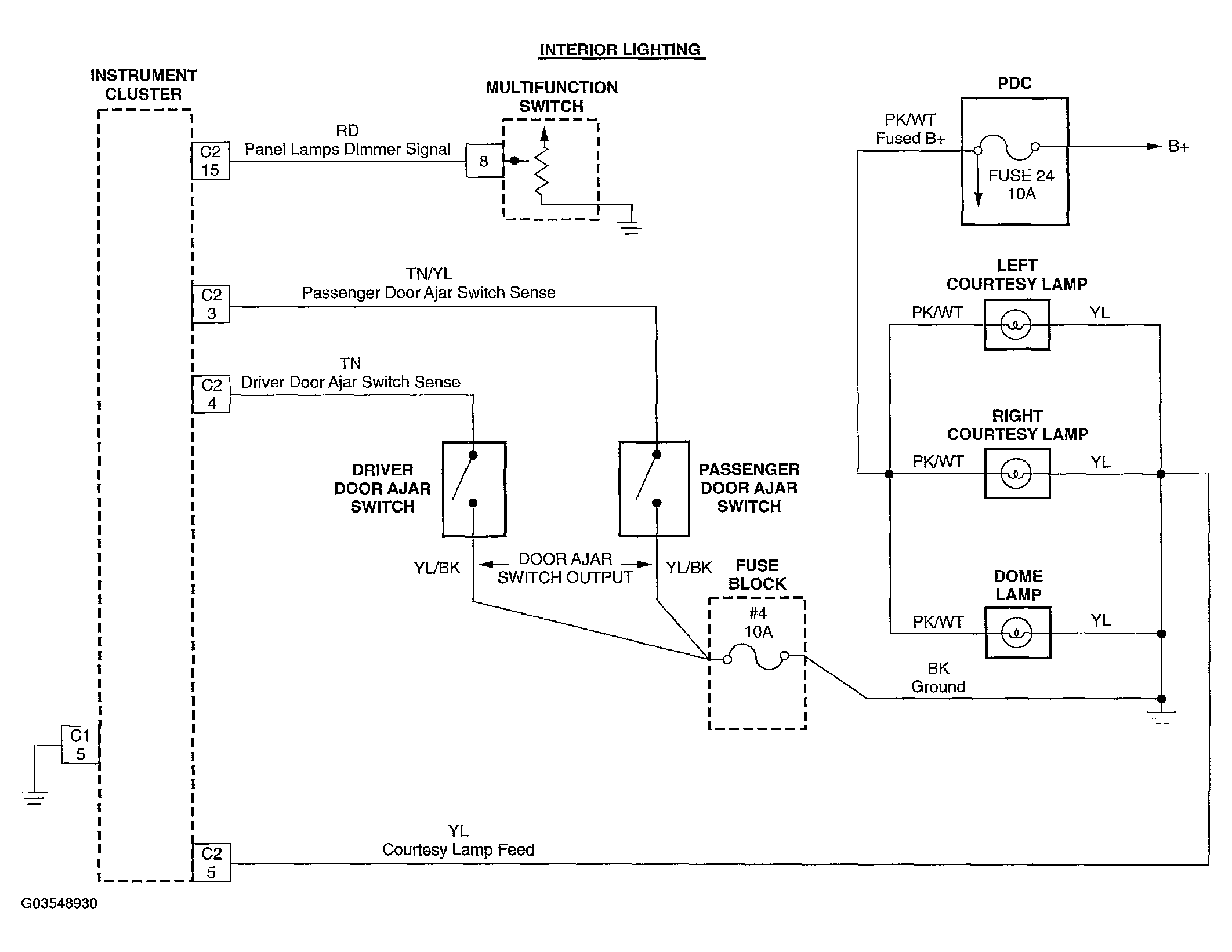

Fig 1: Interior Lighting Schematic Diagram

G03548930

Courtesy of DAIMLERCHRYSLER CORP.
