Power Steering System: Damper: Removal

  1. Place the front wheels in a straight ahead position.

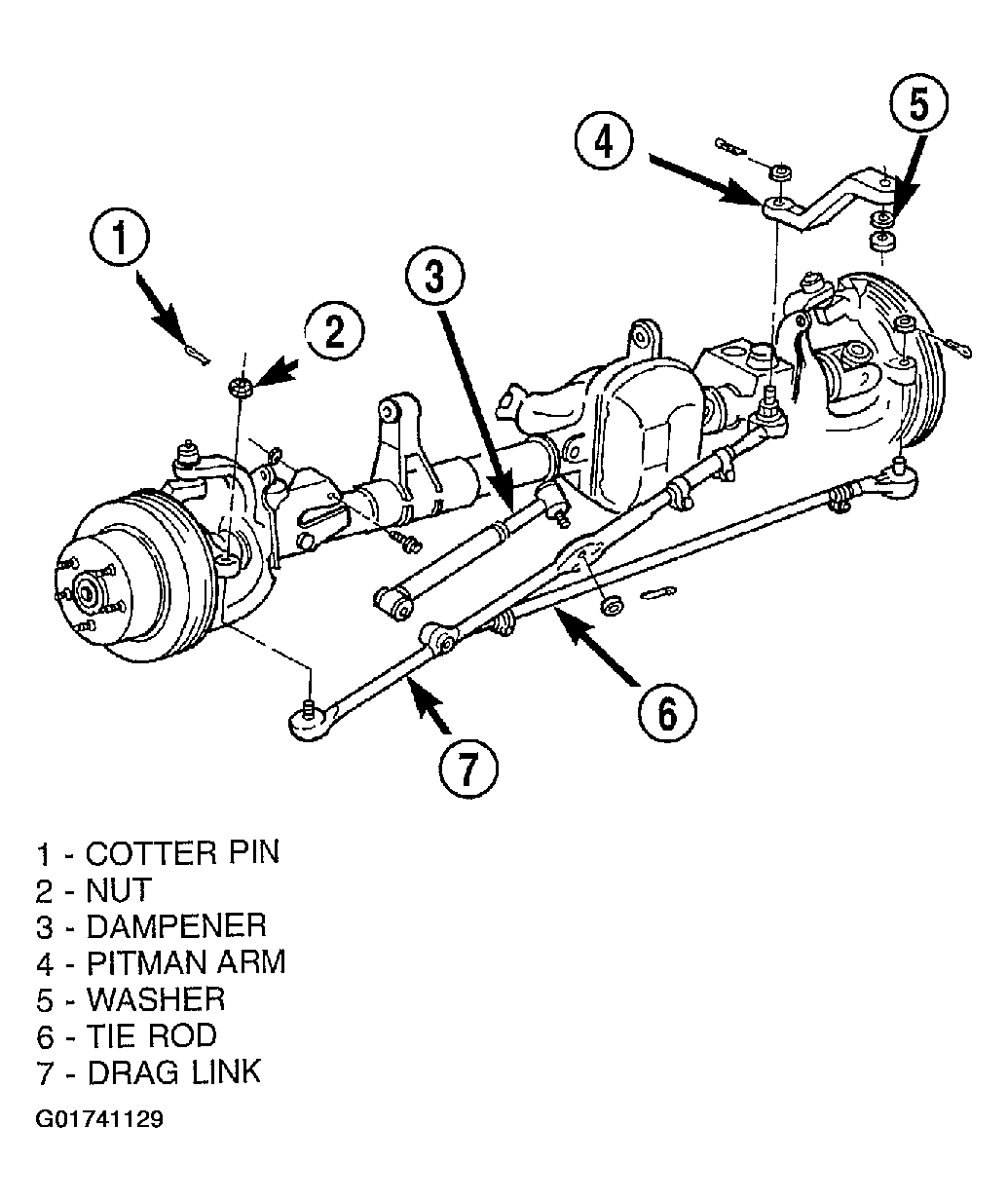

  2. Remove the steering dampener retaining nut and bolt from the axle bracket. See Figure.
  3. Remove the cotter pin and nut from the ball stud at the drag link.
  4. Remove the steering dampener ball stud from the drag link using C-3894-A puller.
