Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Starting >> *Fuel Pressure Leak Down >> Testing

*Fuel Pressure Leak Down: Testing

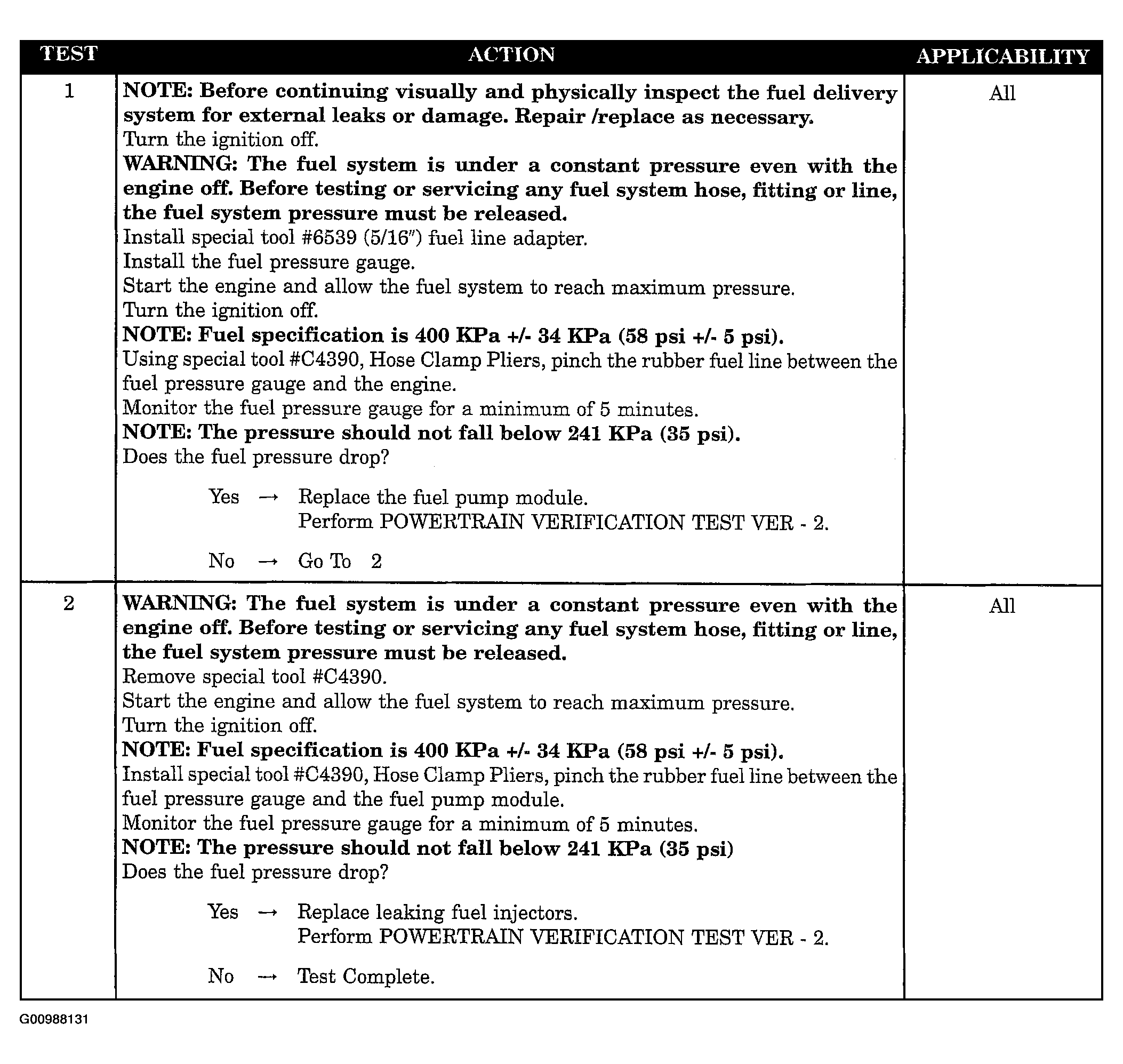

Fig 1: Testing: Fuel Pressure Leak Down

G00988131

Courtesy of DAIMLERCHRYSLER CORP.
