DTC P1899: P/N Switch Performance: Testing

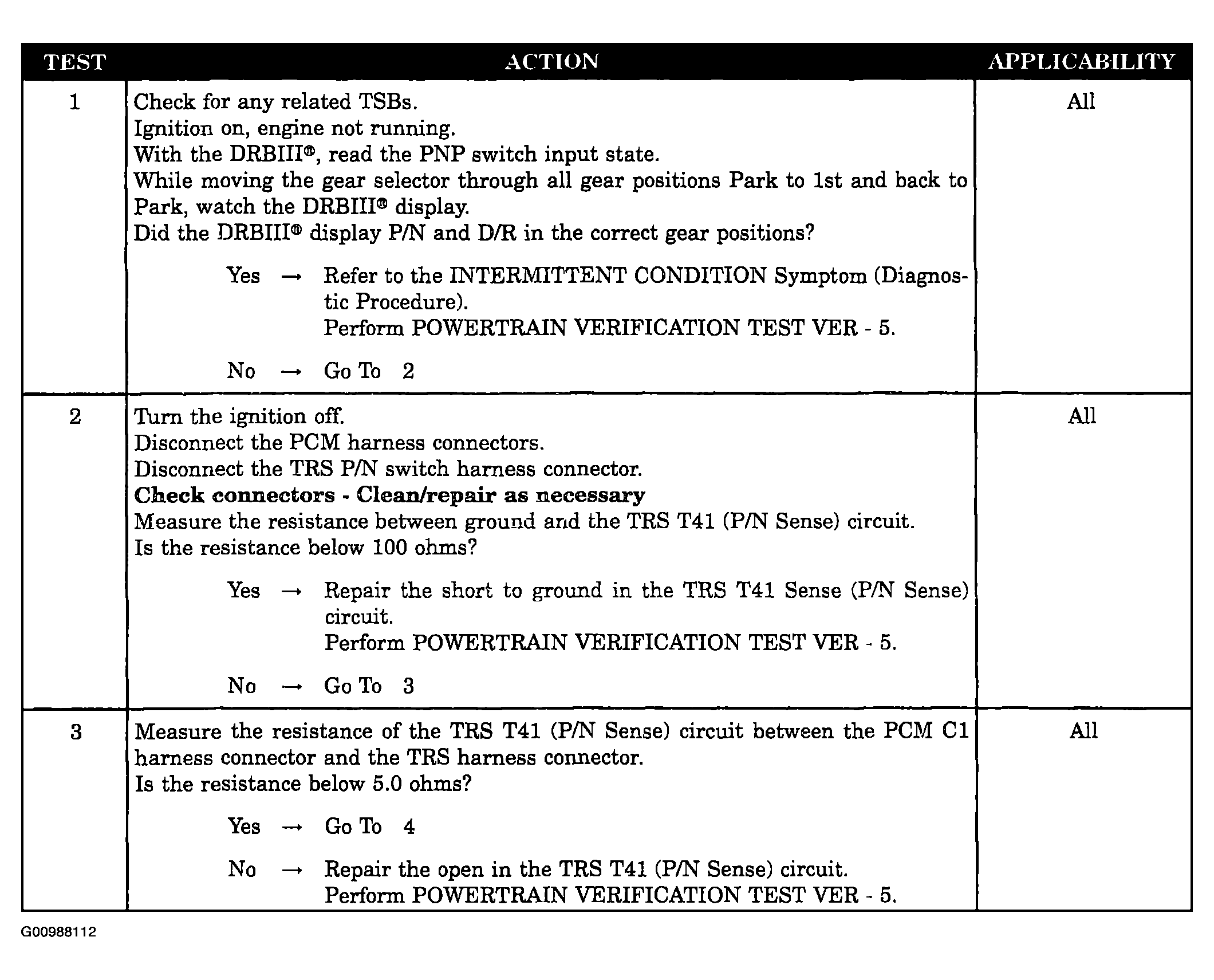

Fig 1: Testing: DTC P1899: P/N Switch Performance (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

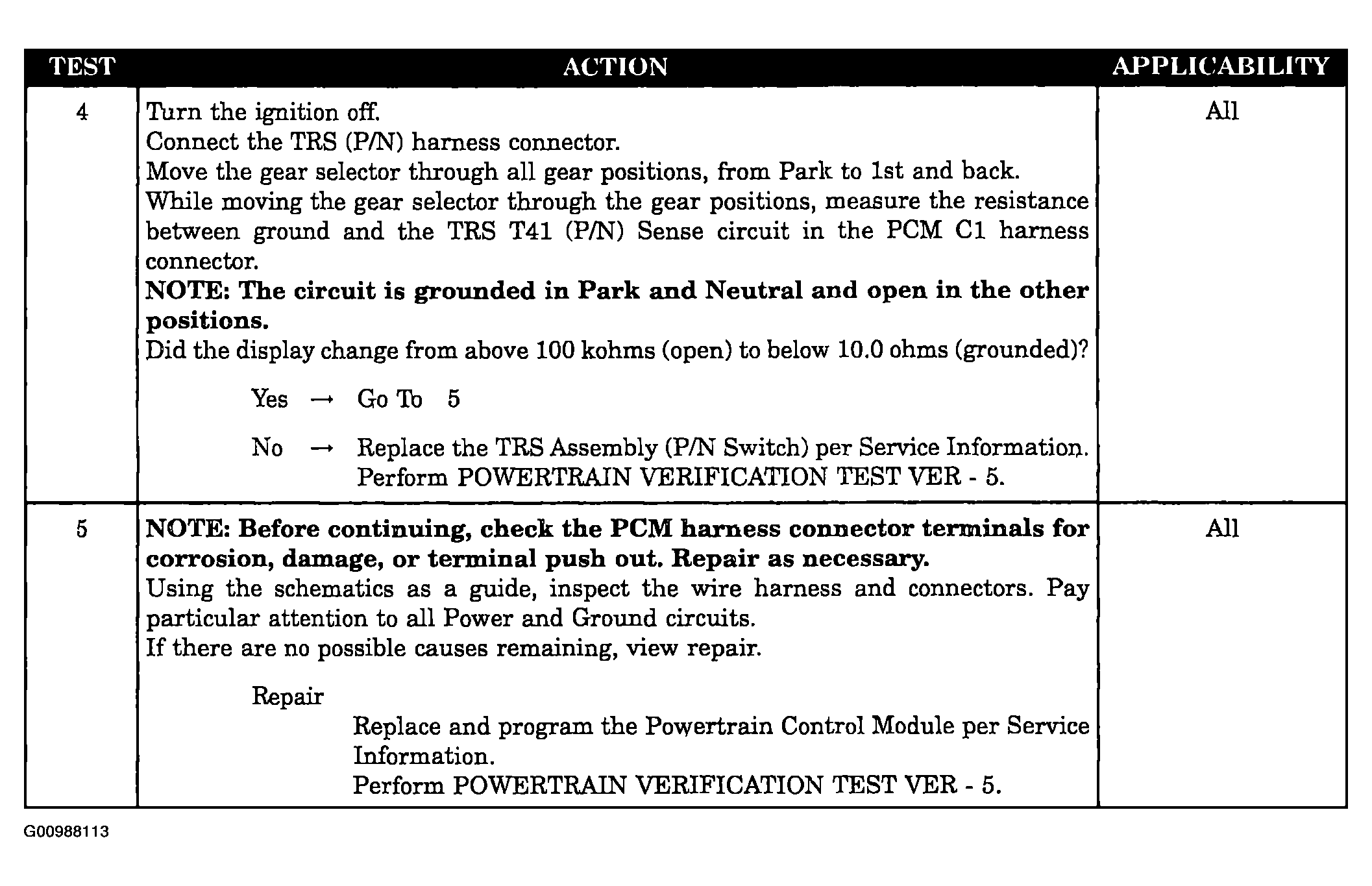

Fig 2: Testing: DTC P1899: P/N Switch Performance (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
