Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> DRIVEABILITY - Gas >> DTC P1692: Cluster Software Mismatch >> Testing

DTC P1692: Cluster Software Mismatch: Testing

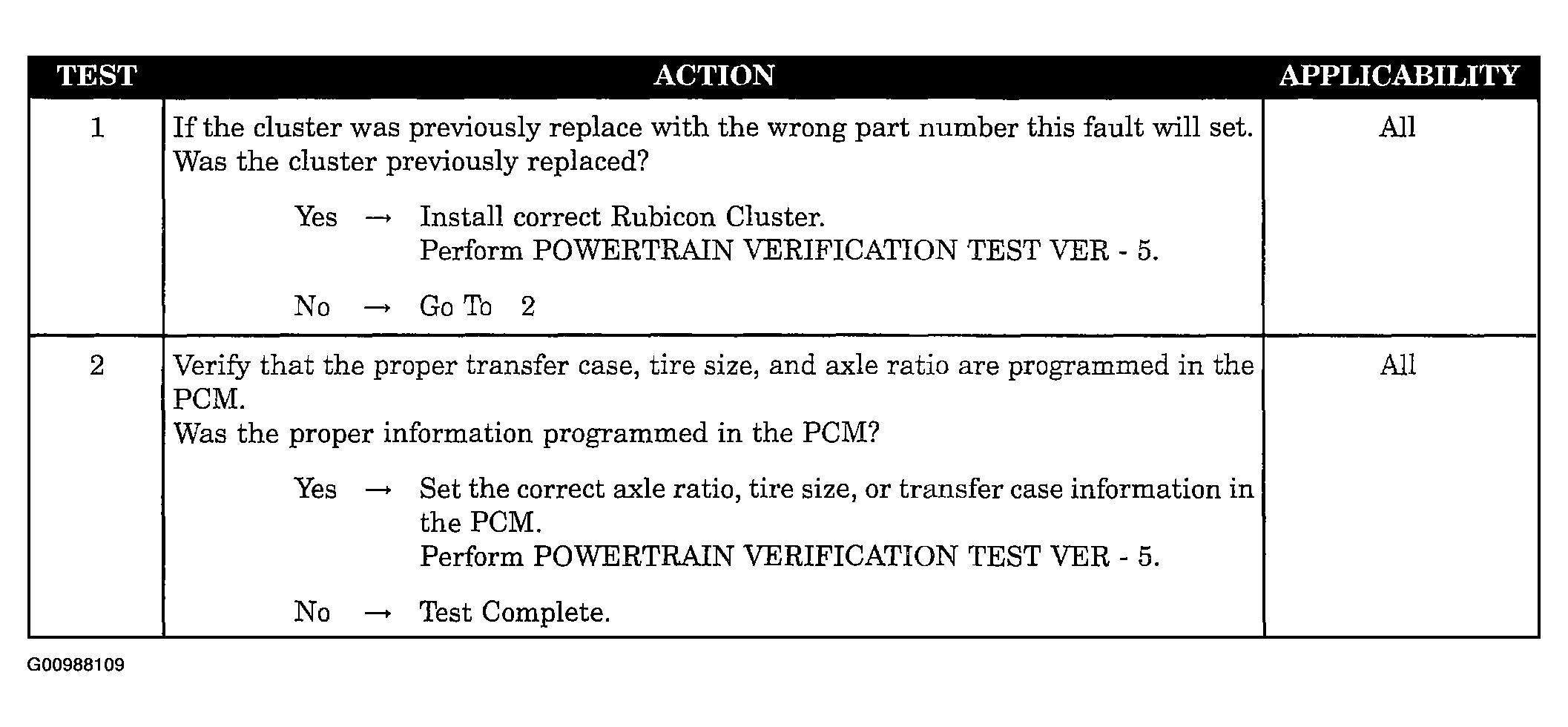

Fig 1: Testing: DTC P1692: Cluster Software Mismatch

G00988109

Courtesy of DAIMLERCHRYSLER CORP.
