DTC P1596: Speed Control Switch Always High: Testing

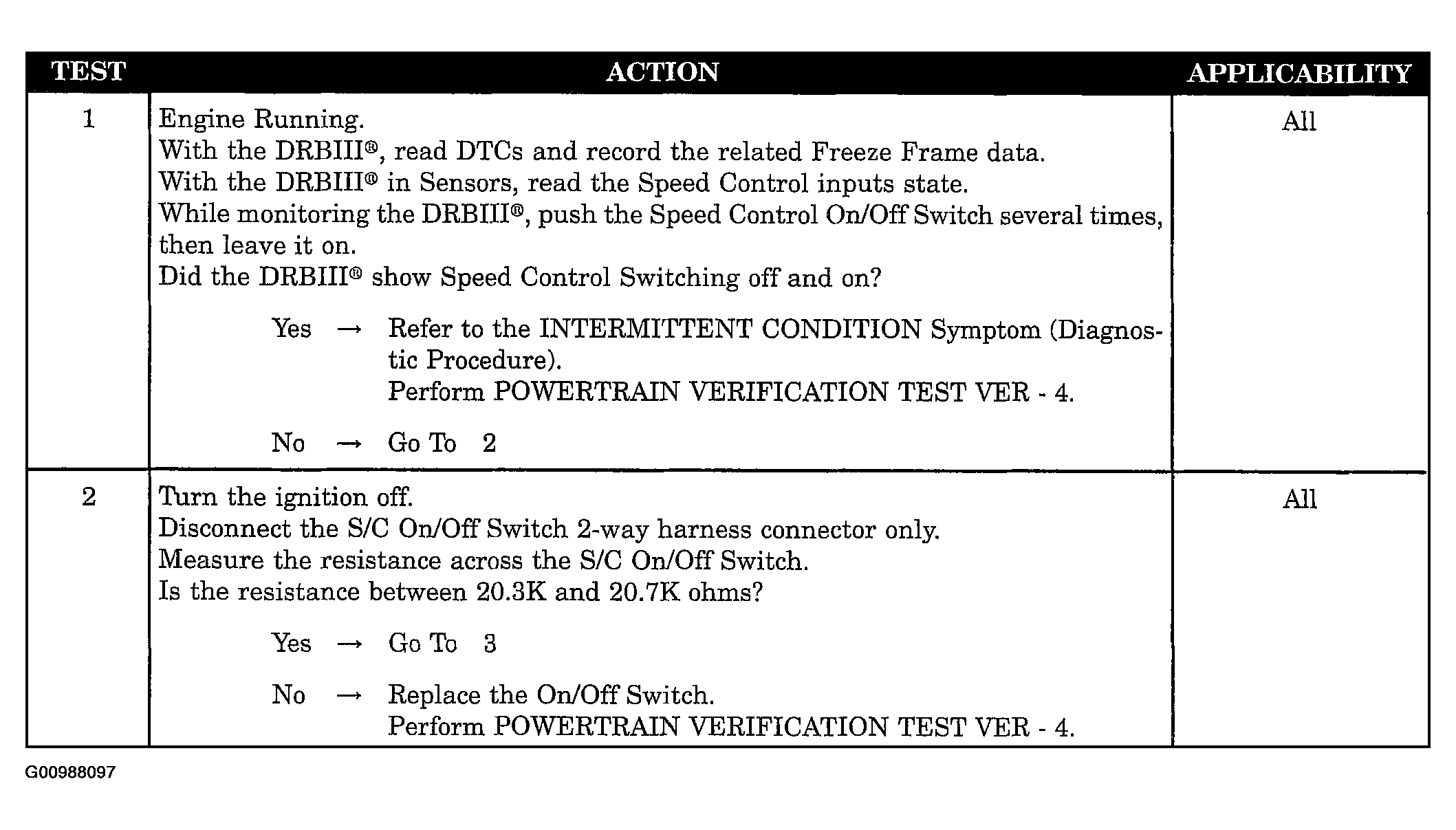

Fig 1: Testing: DTC P1596: Speed Control Switch Always High (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

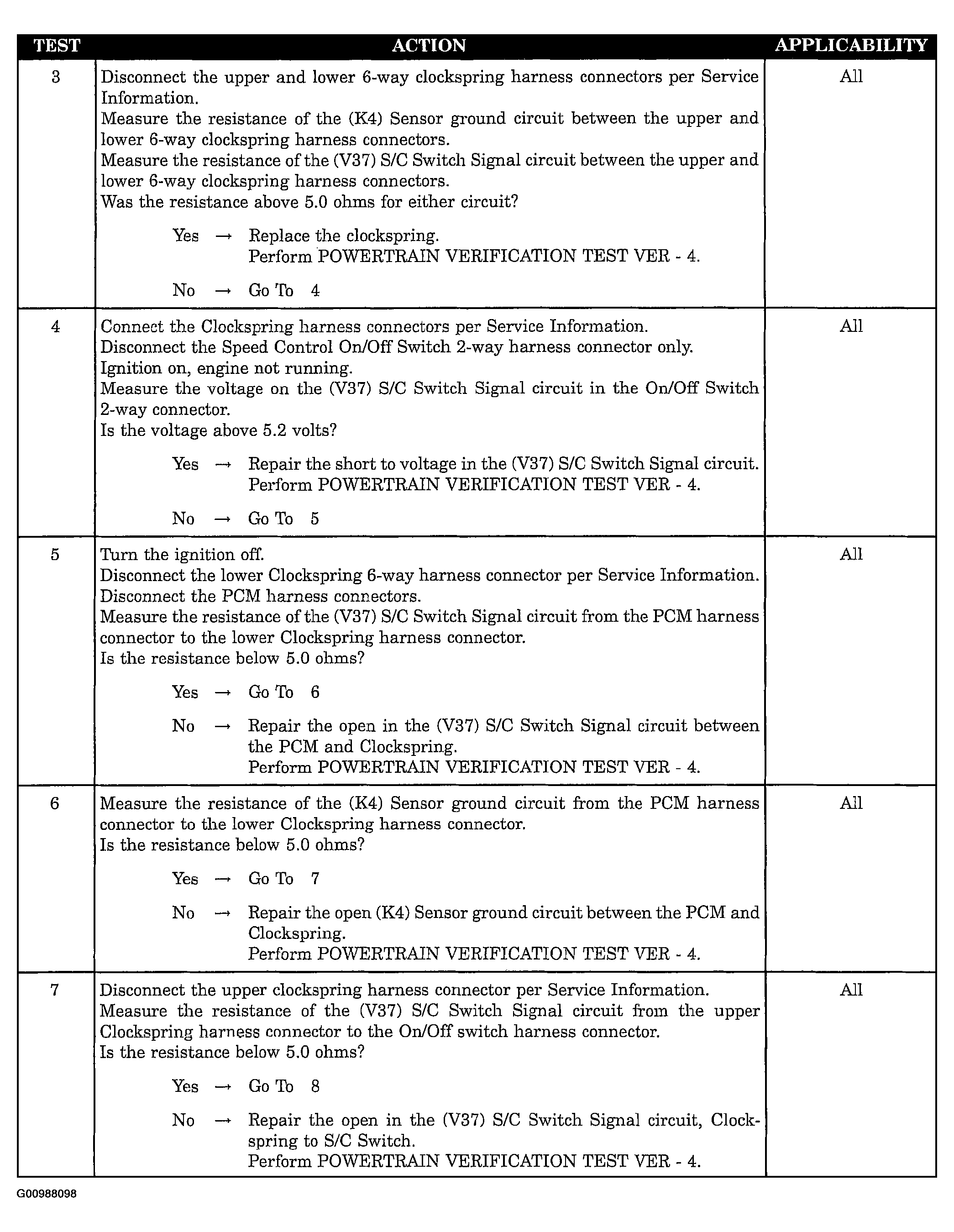

Fig 2: Testing: DTC P1596: Speed Control Switch Always High (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

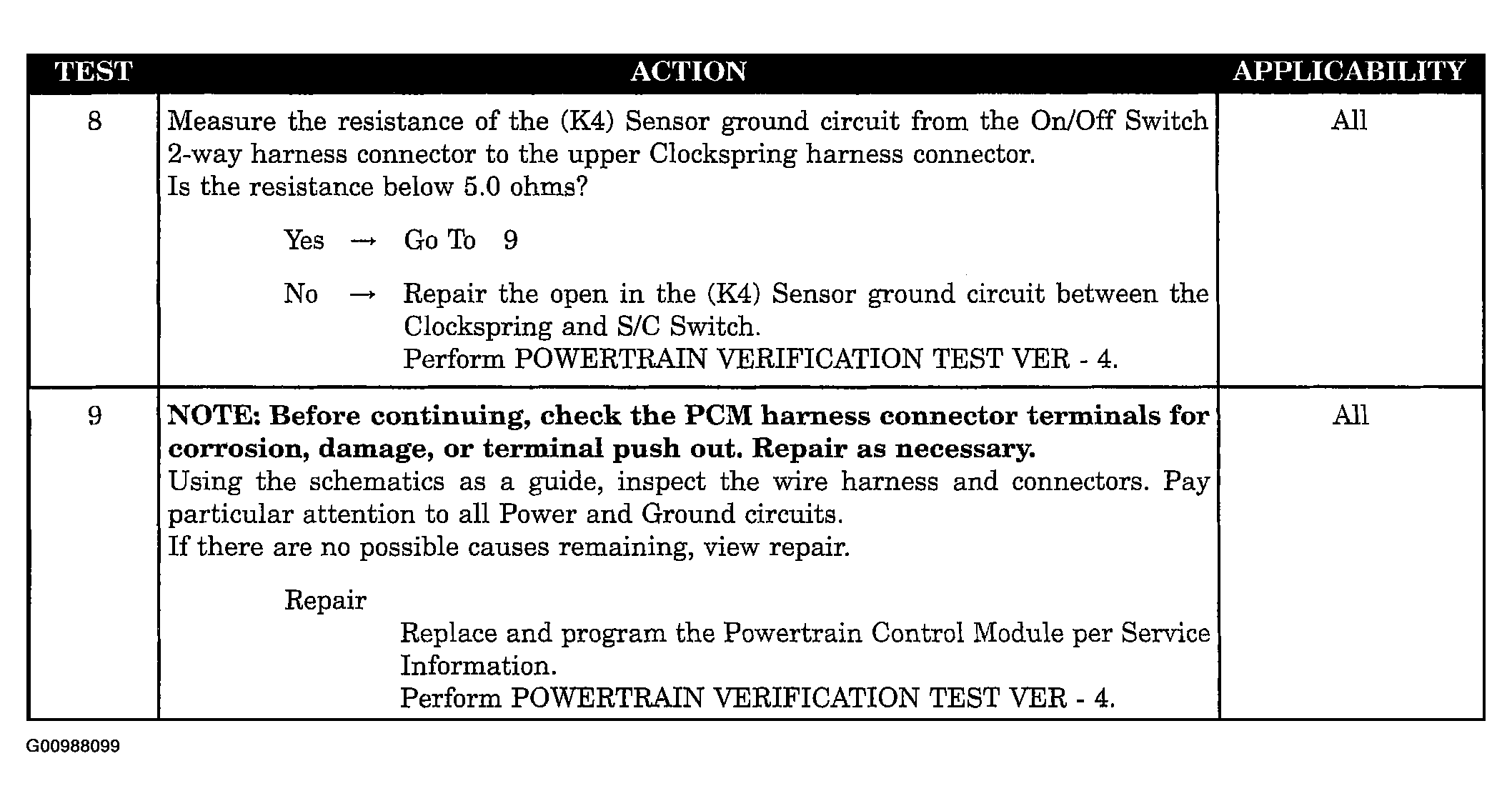

Fig 3: Testing: DTC P1596: Speed Control Switch Always High (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
