LEMON Manuals: Even more car manuals for everyone
Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> DRIVEABILITY - Gas >> DTC P0622: Generator Field Not Switching Properly >> Testing

DTC P0622: Generator Field Not Switching Properly: Testing

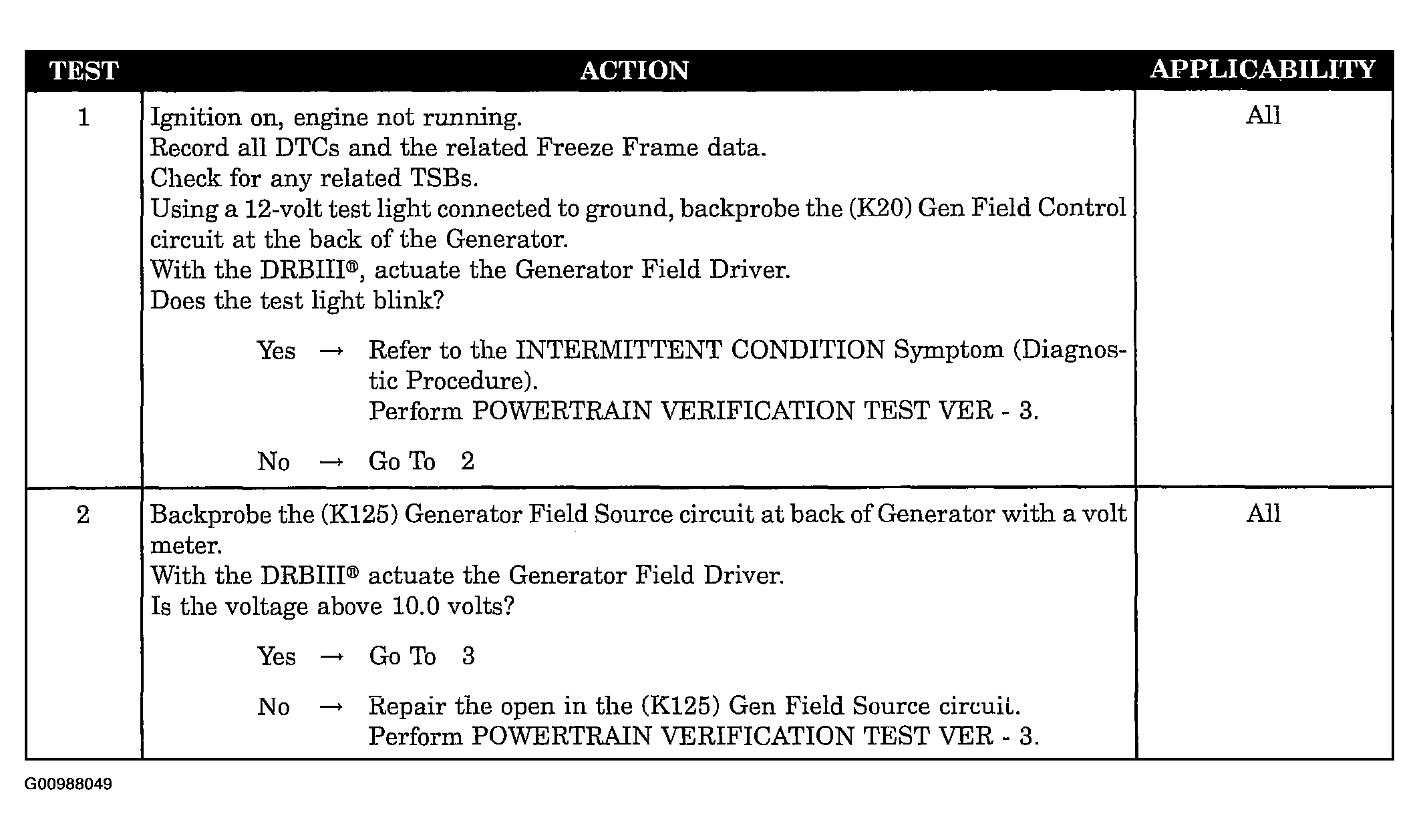

Fig 1: Testing: DTC P0622: Generator Field Not Switching Properly (1 Of 2)
G00988049Courtesy of DAIMLERCHRYSLER CORP.

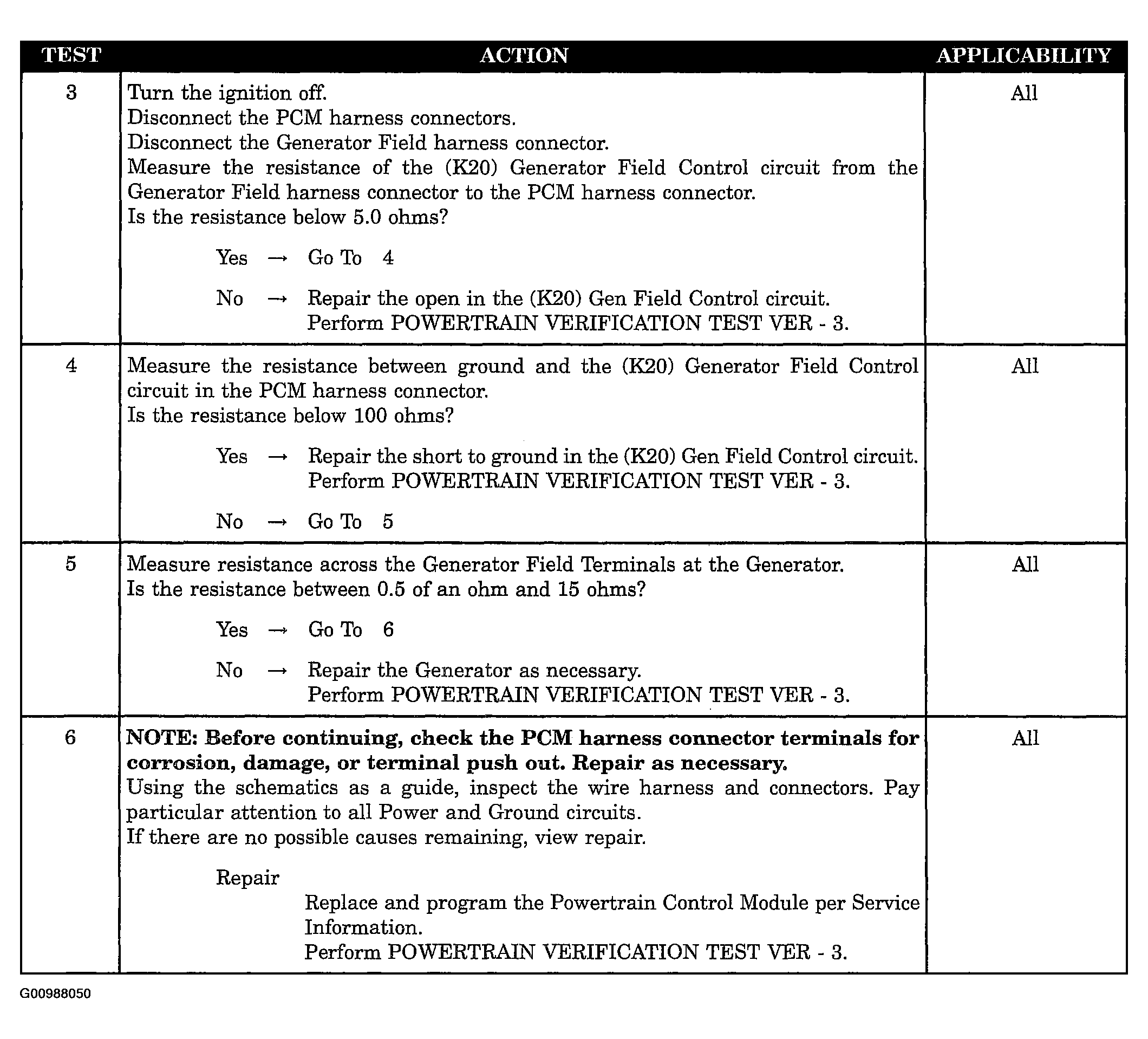

Fig 2: Testing: DTC P0622: Generator Field Not Switching Properly (2 Of 2)
G00988050Courtesy of DAIMLERCHRYSLER CORP.
