DTC P0125: Closed Loop Temp Not Reached: Testing

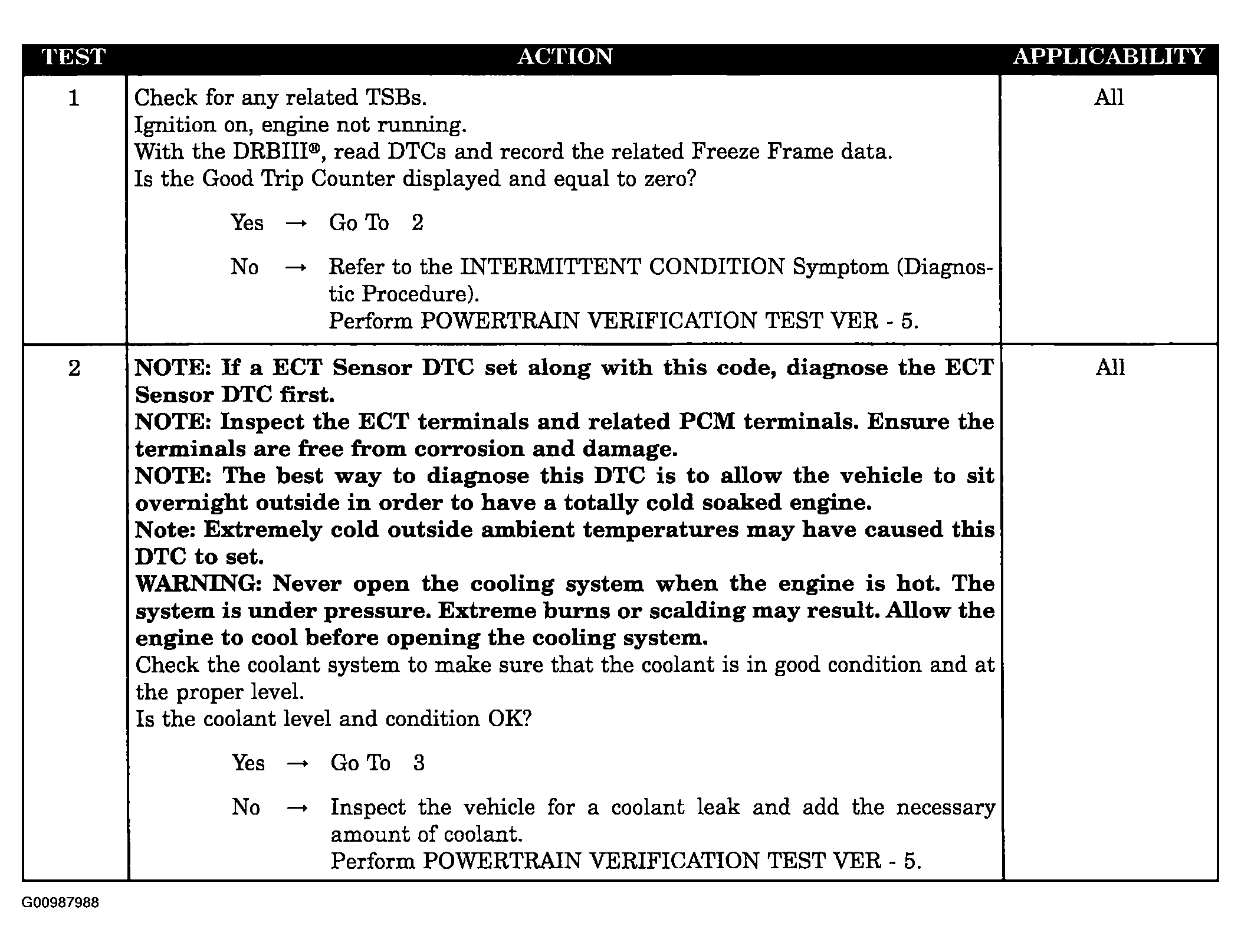

Fig 1: Testing: DTC P0125: Closed Loop Temp Not Reached (1 Of 2)
G00987988Courtesy of DAIMLERCHRYSLER CORP.

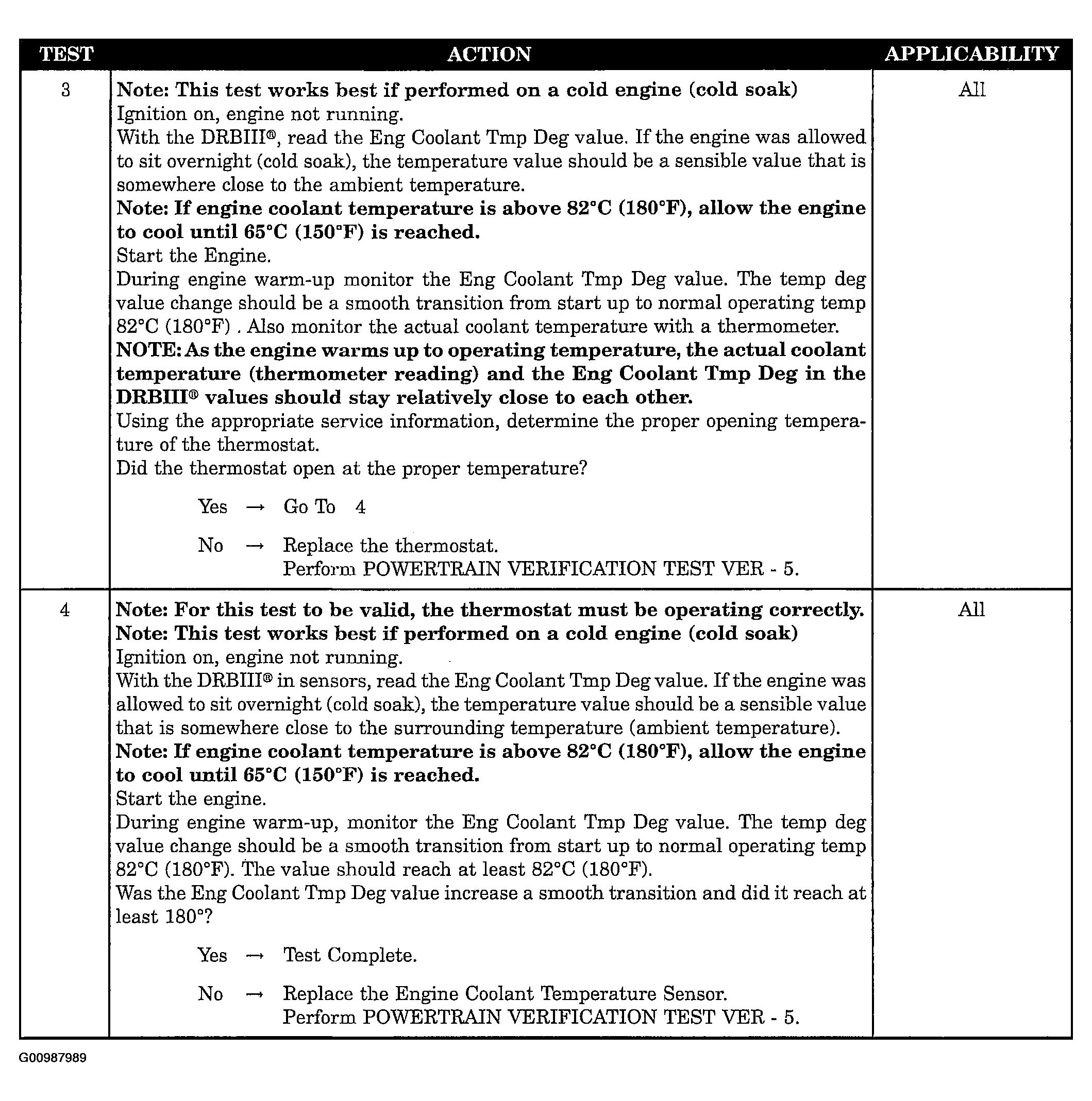

Fig 2: Testing: DTC P0125: Closed Loop Temp Not Reached (2 Of 2)
G00987989Courtesy of DAIMLERCHRYSLER CORP.
