DTC P0111: Intake Air Temp Performance: Testing

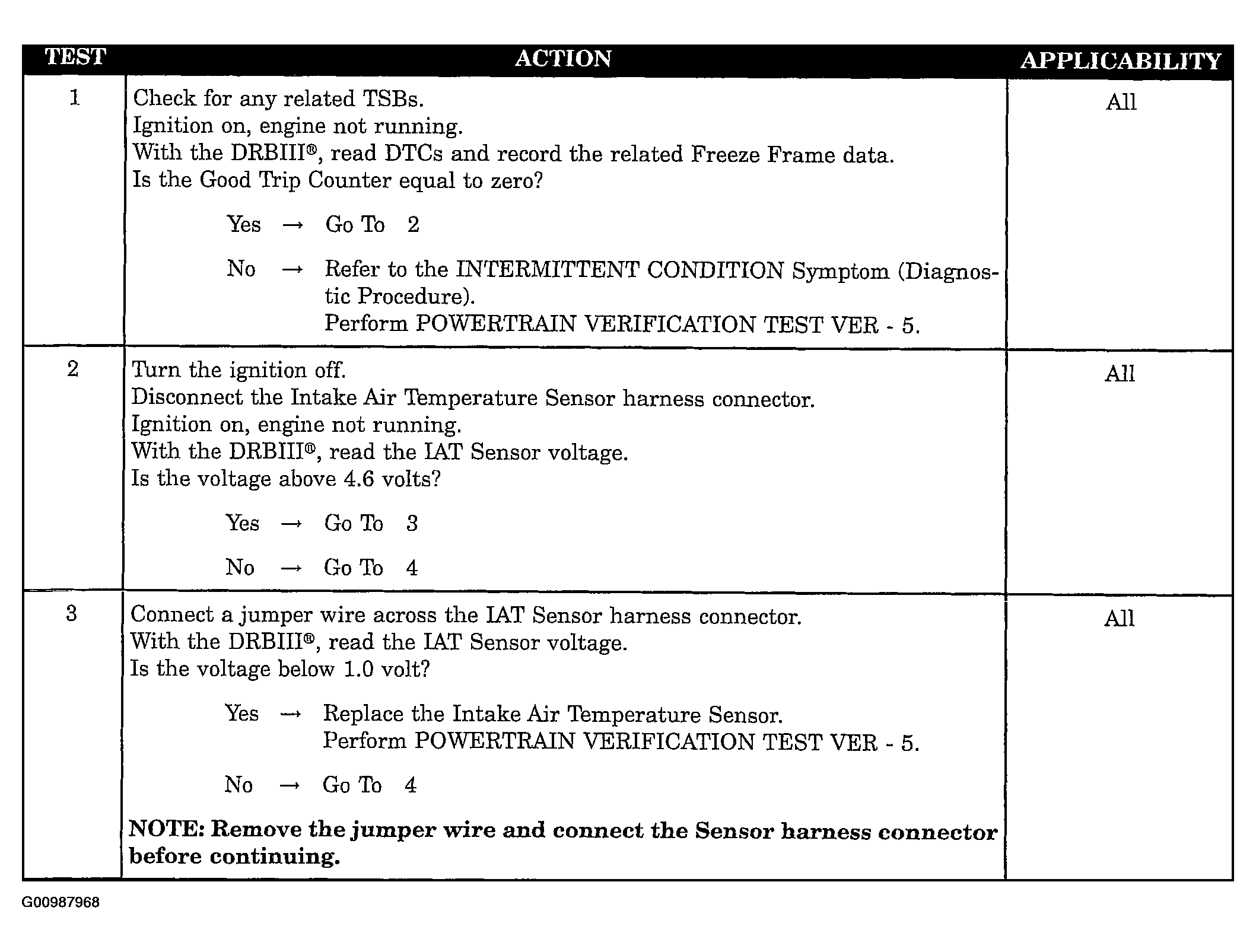

Fig 1: Testing: DTC P0111: Intake Air Temp Performance (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

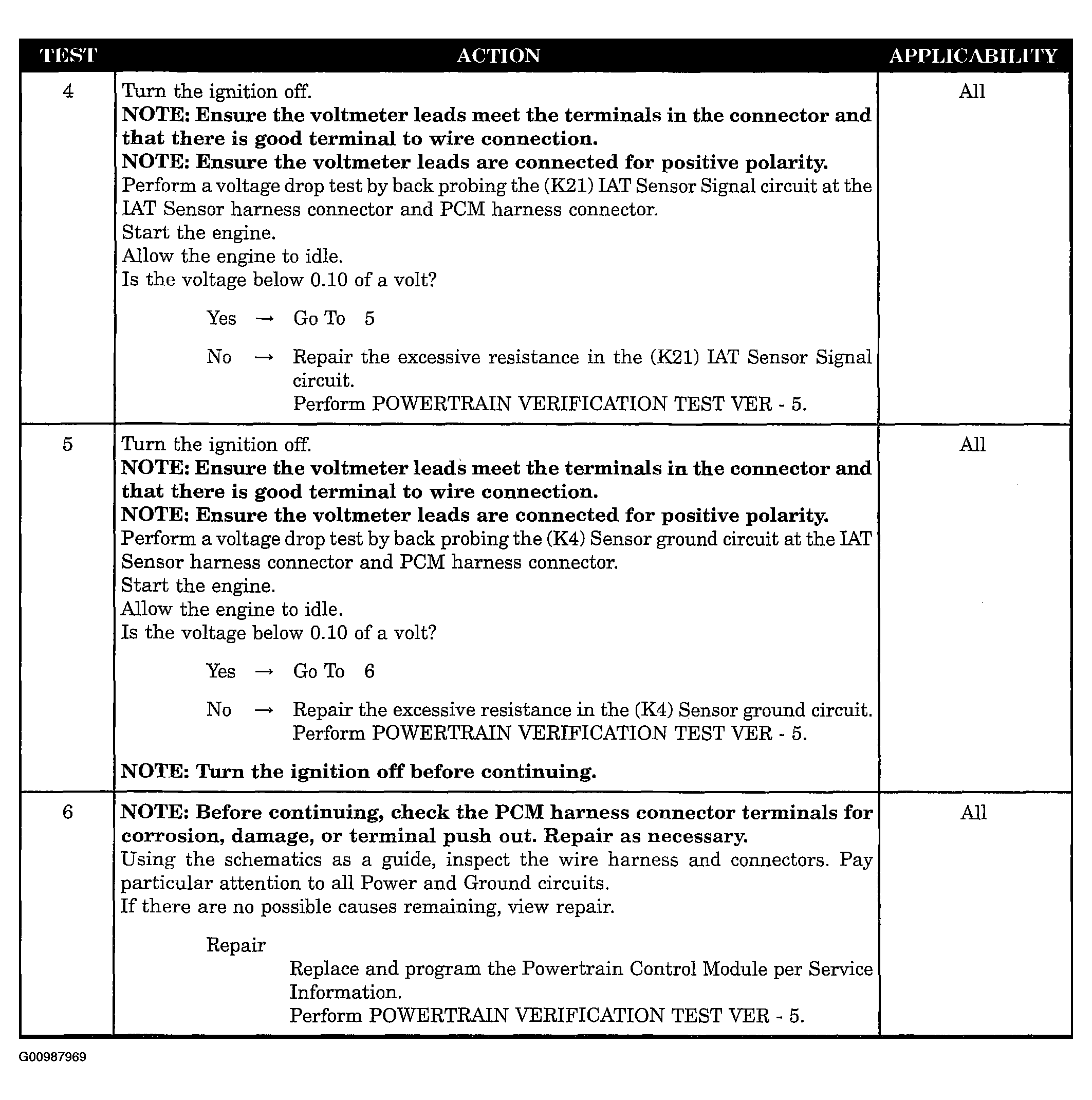

Fig 2: Testing: DTC P0111: Intake Air Temp Performance (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
