Sentry Key Immobilizer Module - Black 6 Way

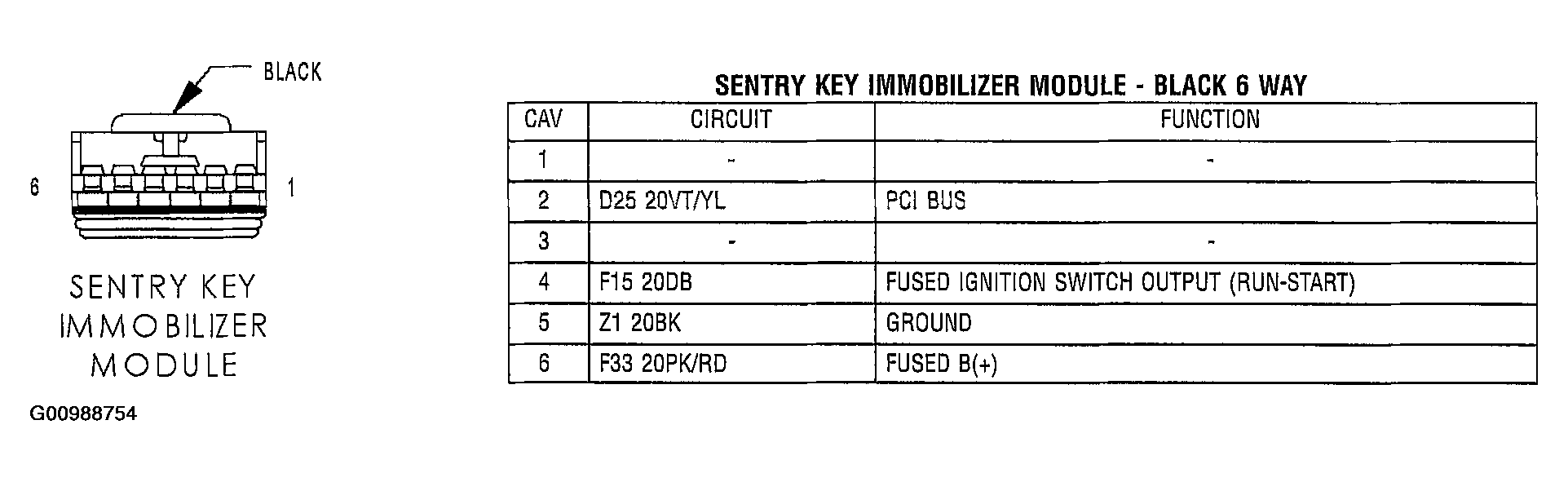

Fig 1: Identifying Sentry Key Immobilizer Module - Black 6 Way

G00988754

Courtesy of DAIMLERCHRYSLER CORP.
