Powertrain Control Module C1 - Black 32 Way

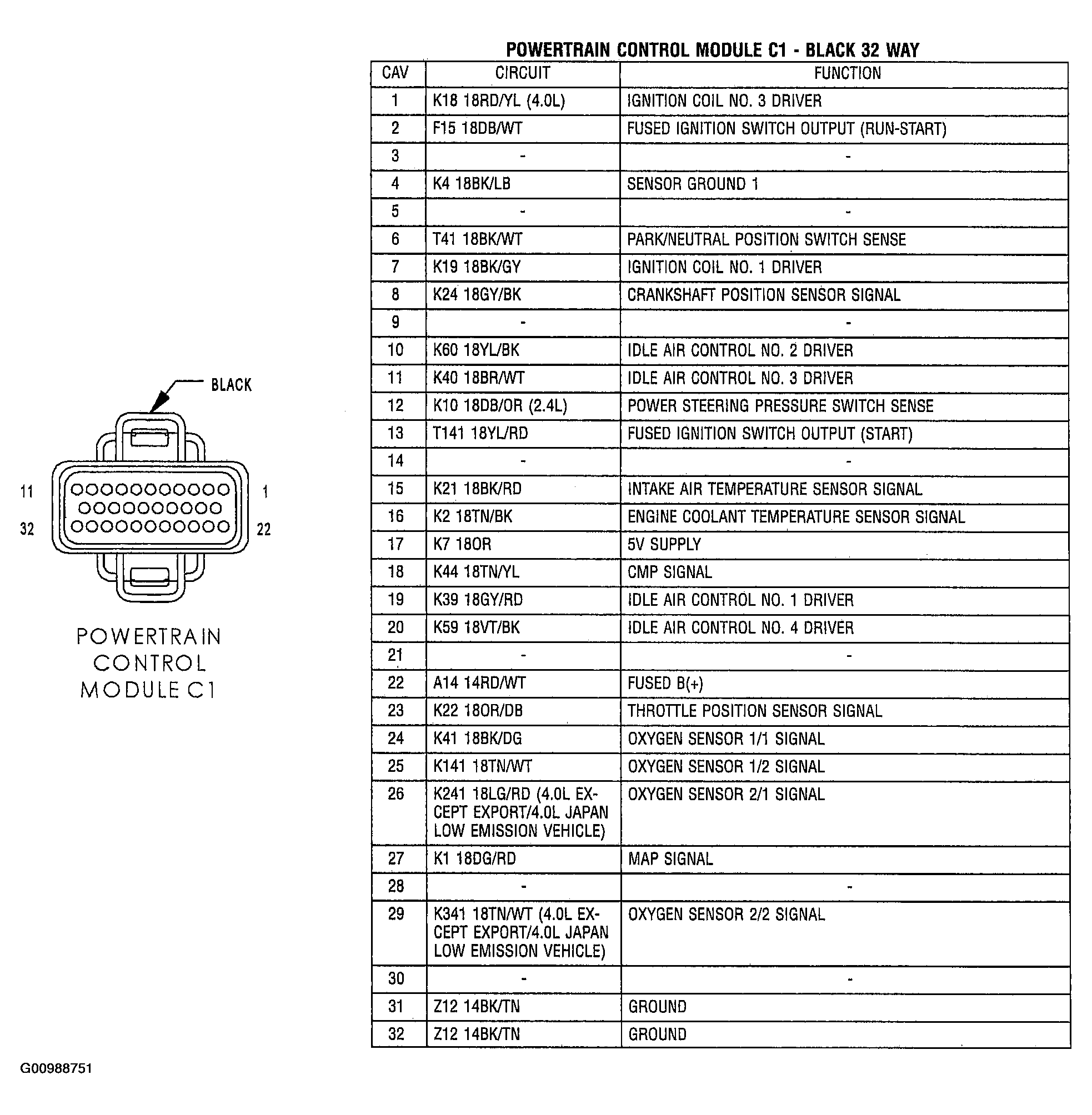

Fig 1: Identifying Powertrain Control Module C1 - Black 32 Way

G00988751

Courtesy of DAIMLERCHRYSLER CORP.
