CLOCKSPRING C1 - 4 Way

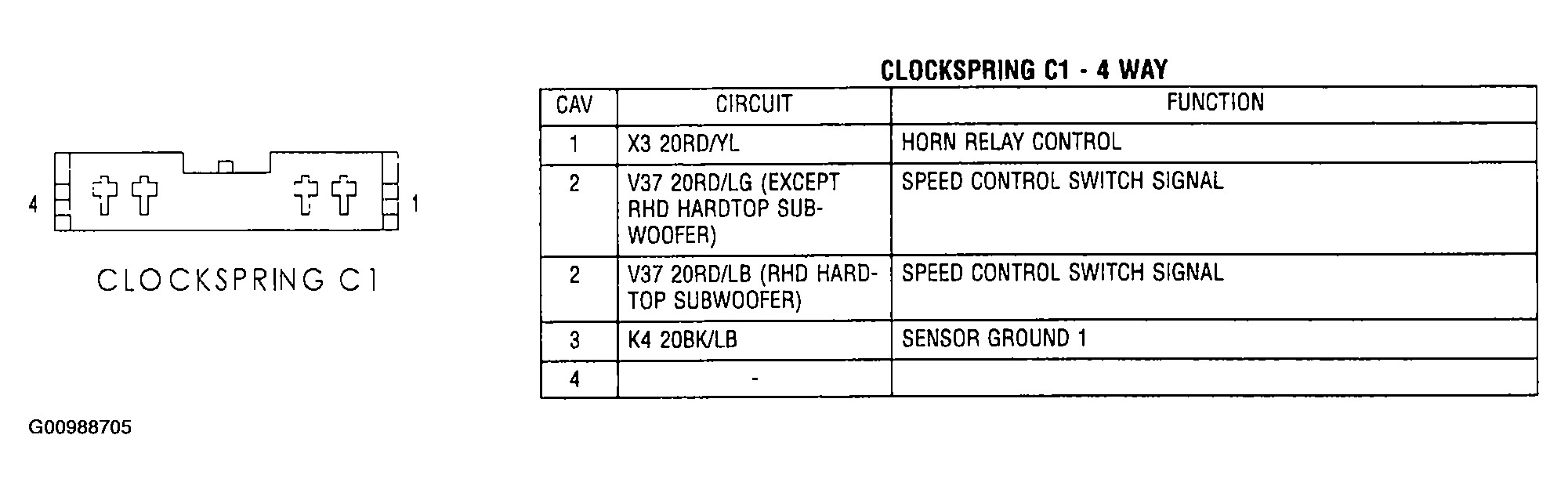

Fig 1: Identifying Clockspring C1 - 4 Way

G00988705

Courtesy of DAIMLERCHRYSLER CORP.
