Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Communication >> *No Response From Pcm (PCI Bus) >> Testing

*No Response From Pcm (PCI Bus): Testing

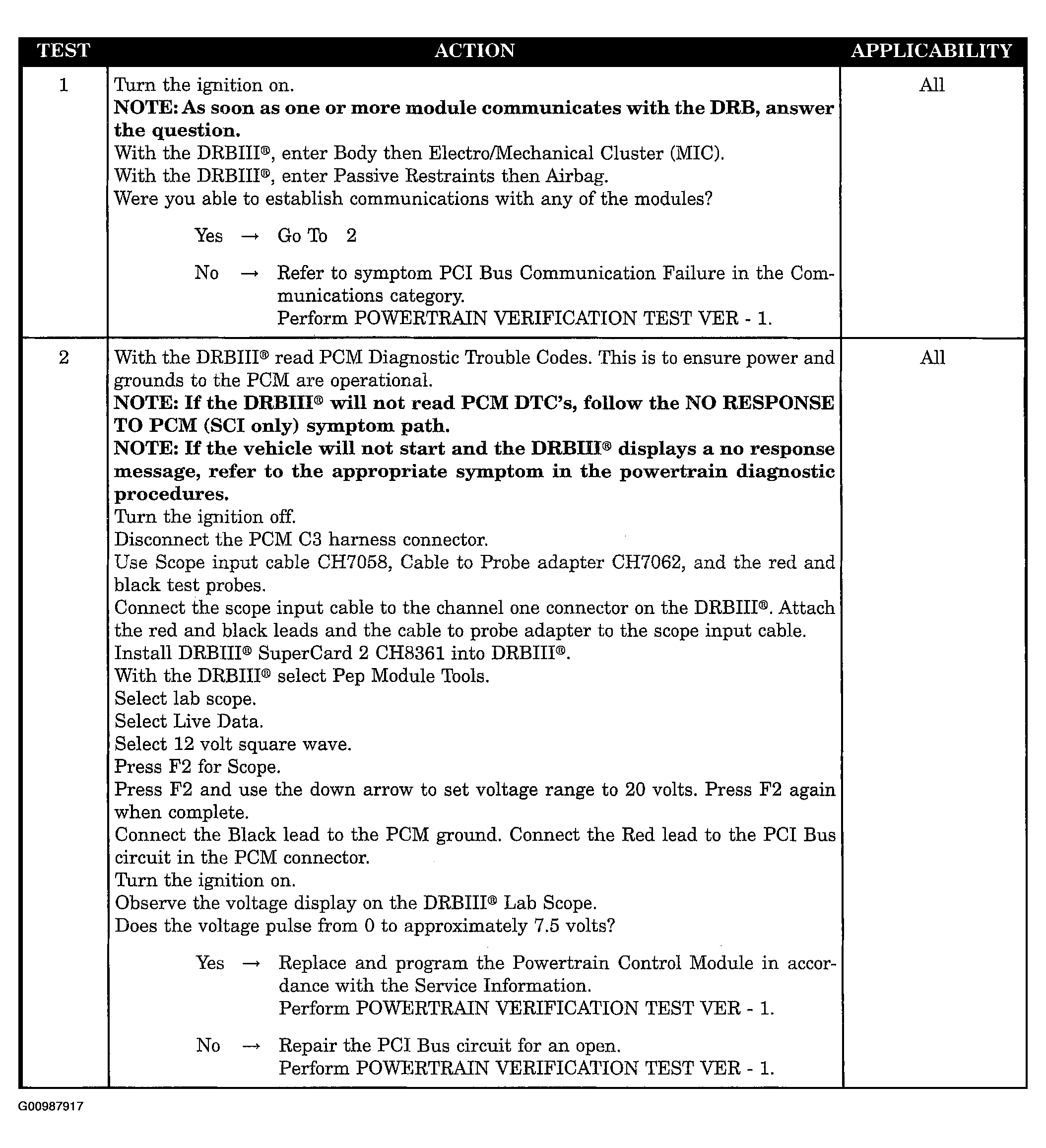

Fig 1: Testing: No Response From PCM (PCI BUS)

G00987917

Courtesy of DAIMLERCHRYSLER CORP.
