2.4L Engine

Identifying Engine General Specifications

DESCRIPTION	SPECIFICATION
Type	In-Line OHV, DOHC
Number of Cylinders	4
Firing Order	1-3-4-2
Compression Ratio	9.5:1
Max. Variation Between Cylinders	25%
	Metric	Standard
Displacement	2.4 Liters	148 cu. in.
Bore	87.5 mm	3.445 in.
Stroke	101.0 mm	3.976 in.
Compression Pressure	1172-1551 kPa	170-225 psi

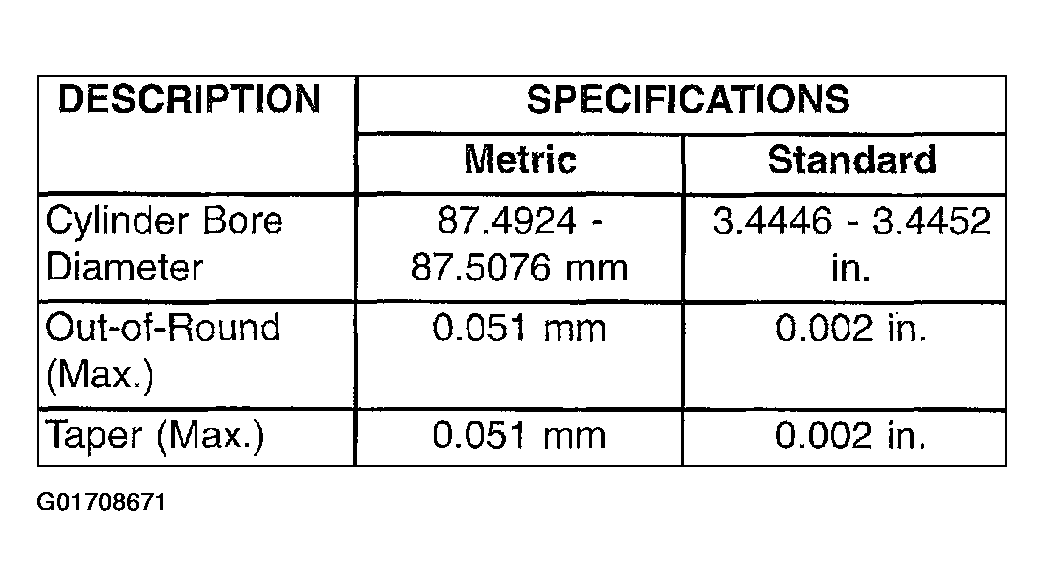

Fig 1: Identifying Cylinder Block Specifications

G01708671

Courtesy of DAIMLERCHRYSLER CORP.

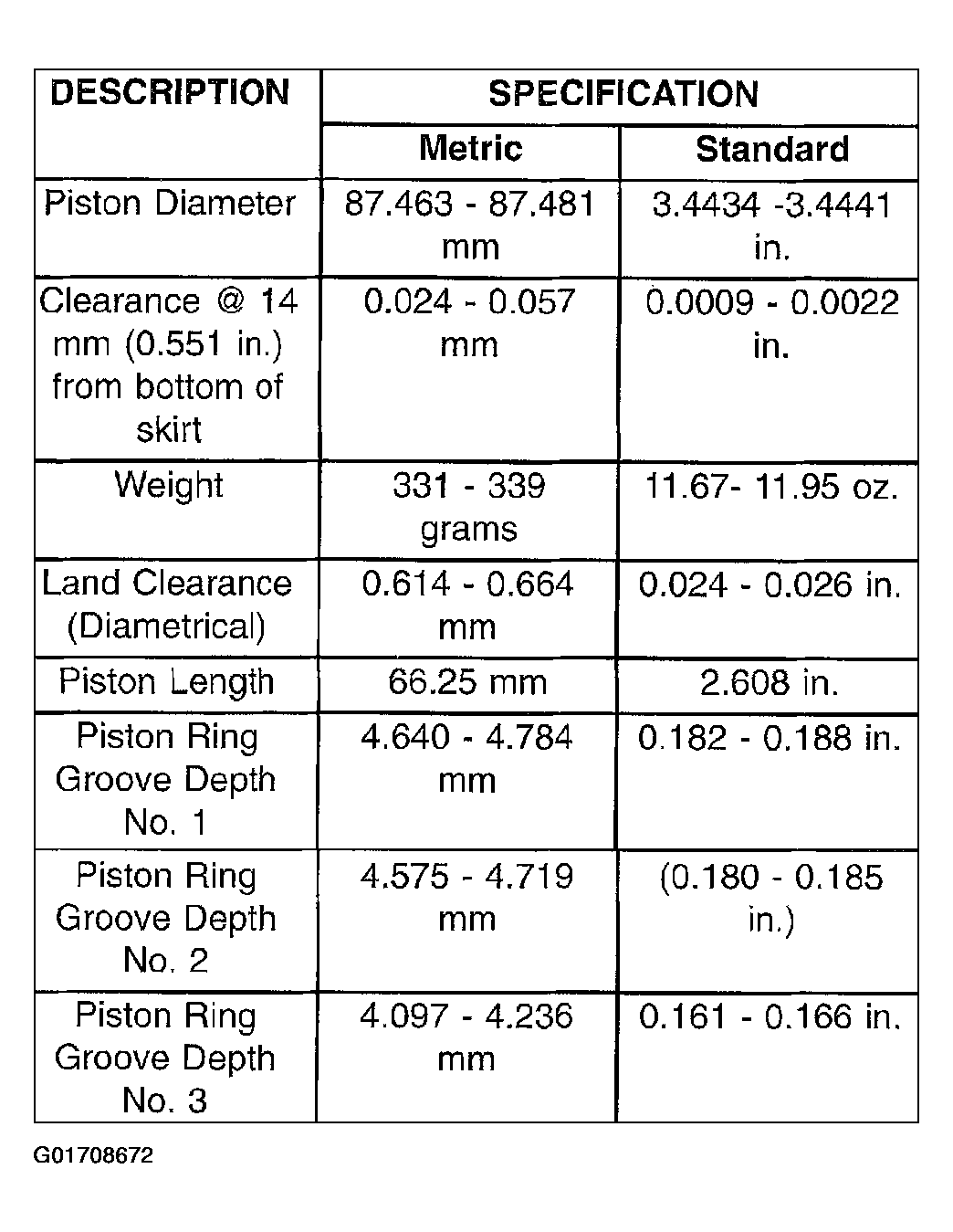

Fig 2: Identifying Piston Specifications

G01708672

Courtesy of DAIMLERCHRYSLER CORP.

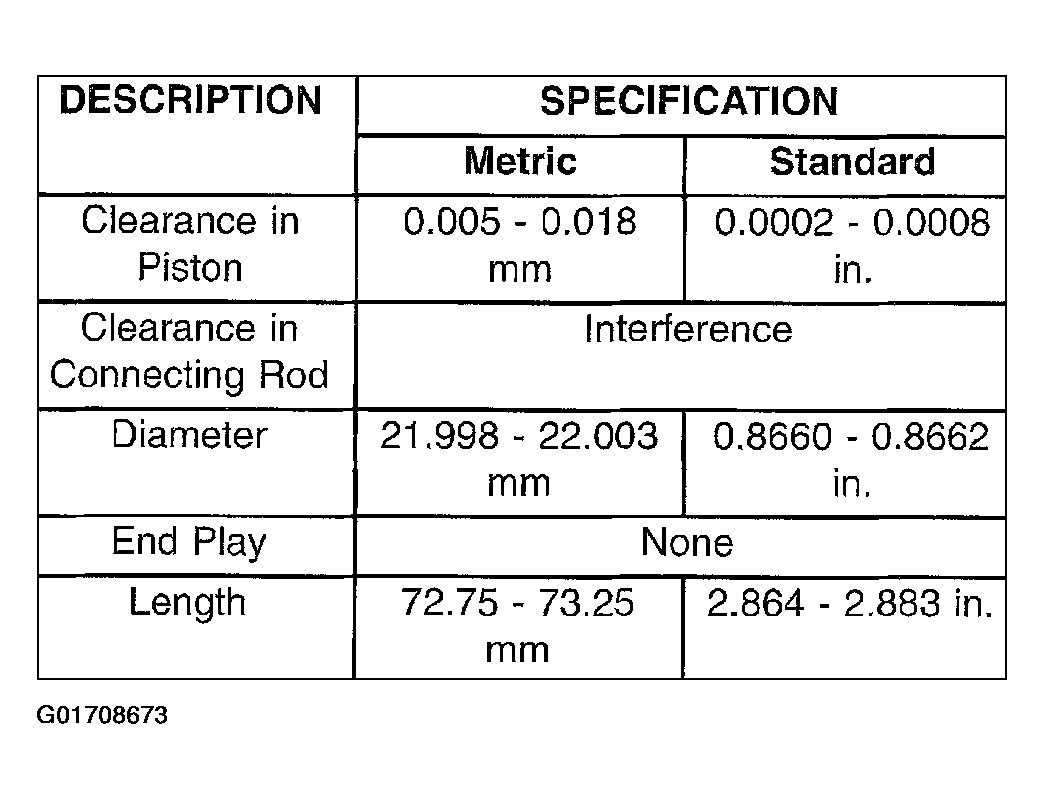

Fig 3: Identifying Piston Pin Specifications

G01708673

Courtesy of DAIMLERCHRYSLER CORP.

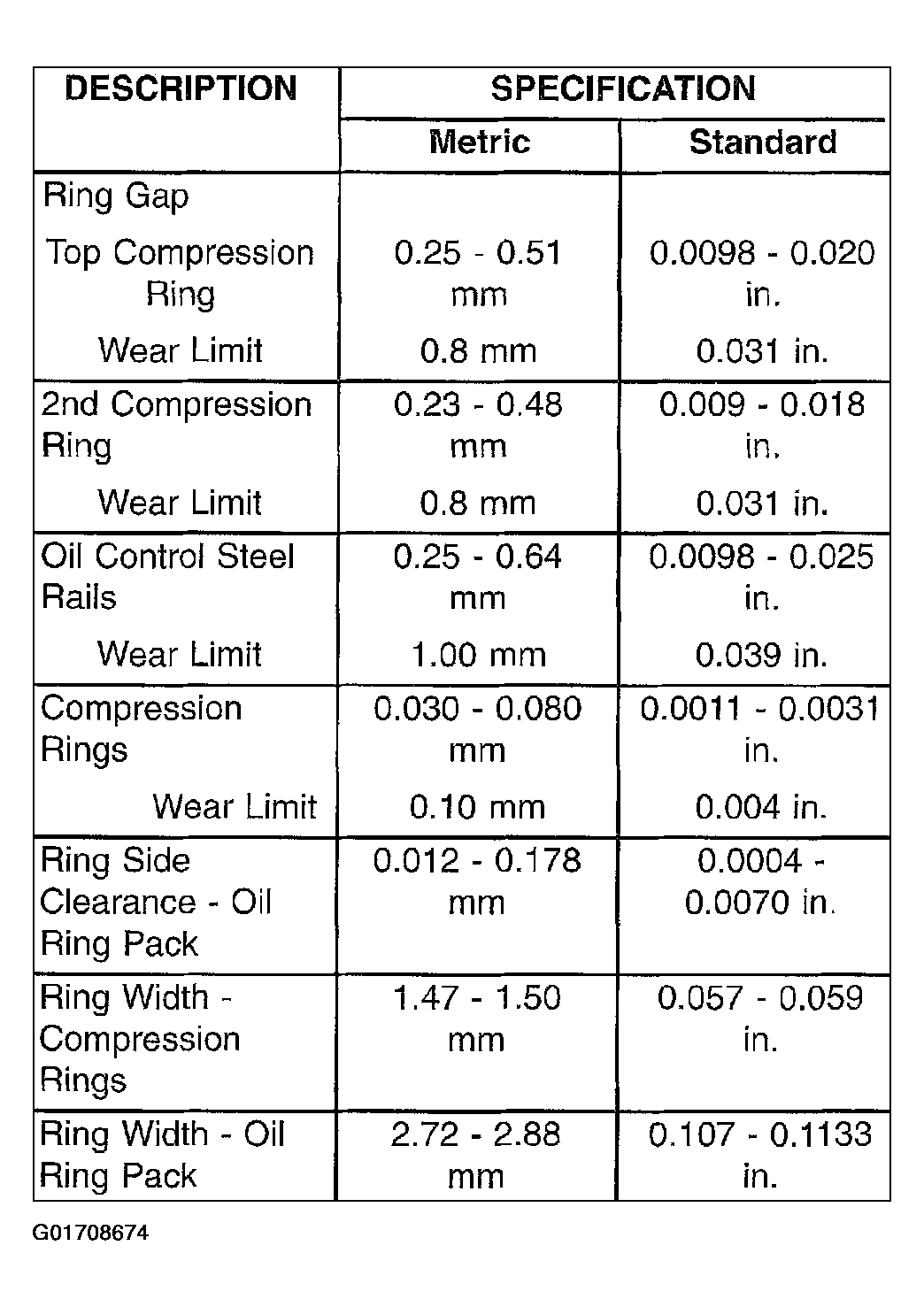

Fig 4: Identifying Piston Ring Specifications

G01708674

Courtesy of DAIMLERCHRYSLER CORP.

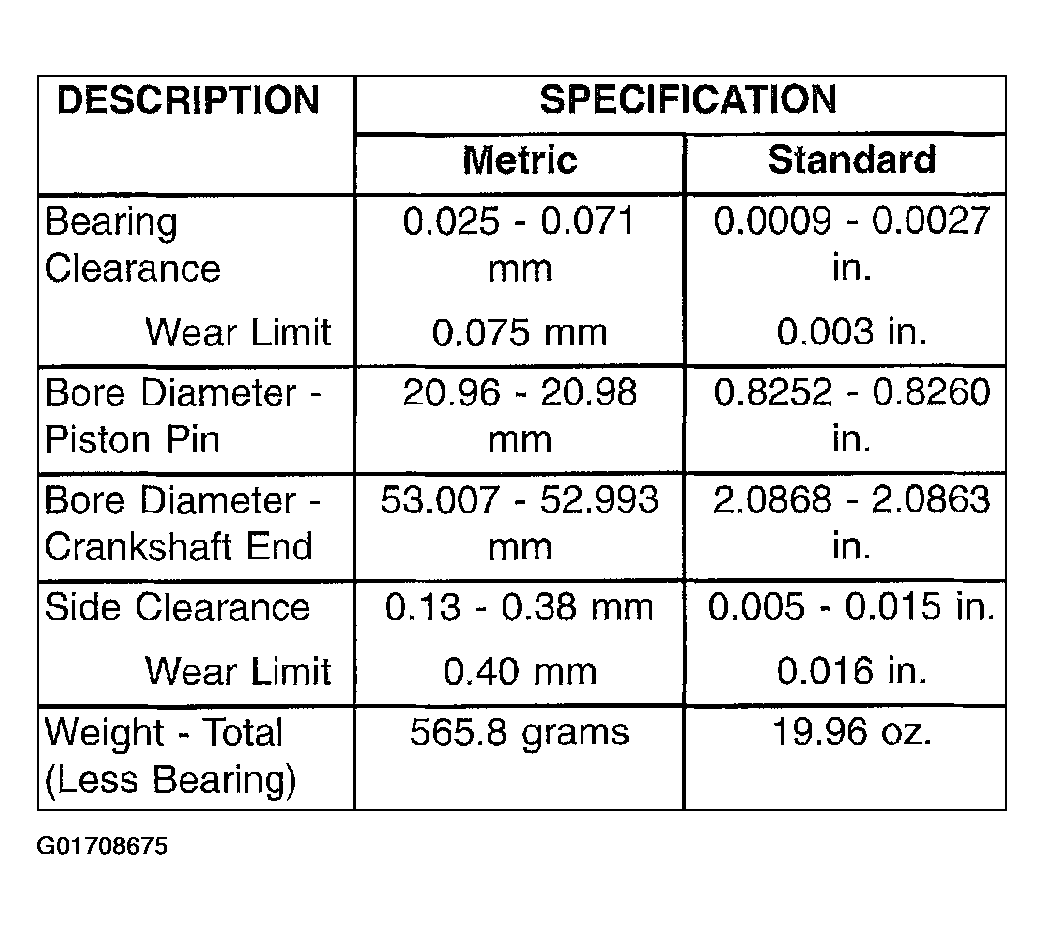

Fig 5: Identifying Connecting Rod Specifications

G01708675

Courtesy of DAIMLERCHRYSLER CORP.

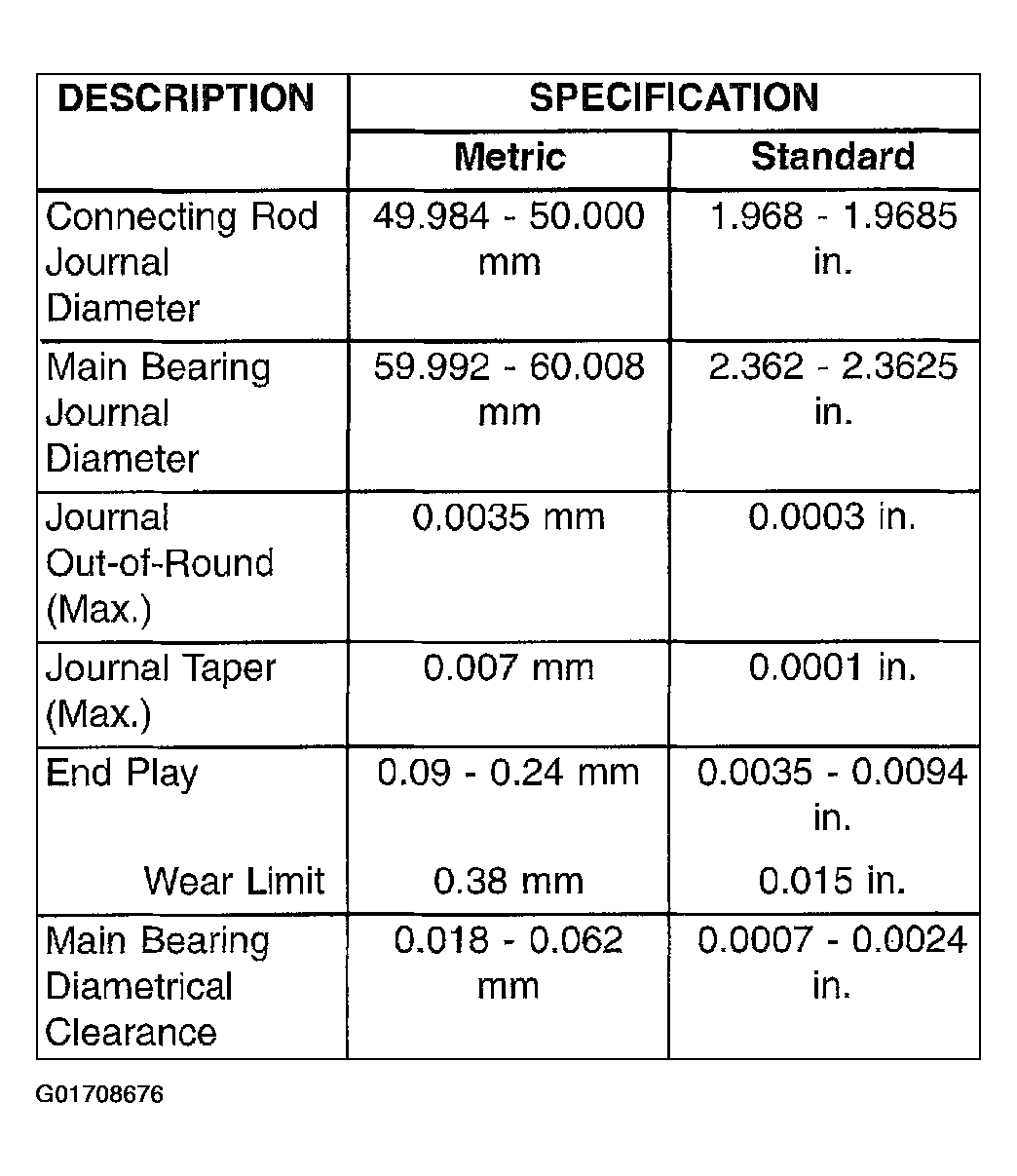

Fig 6: Identifying Crankshaft Specifications

G01708676

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Hydraulic Lash Adjuster Specifications

G01708677

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Cylinder Head Camshaft Bearing Bore Diameter

G01708678

Courtesy of DAIMLERCHRYSLER CORP.

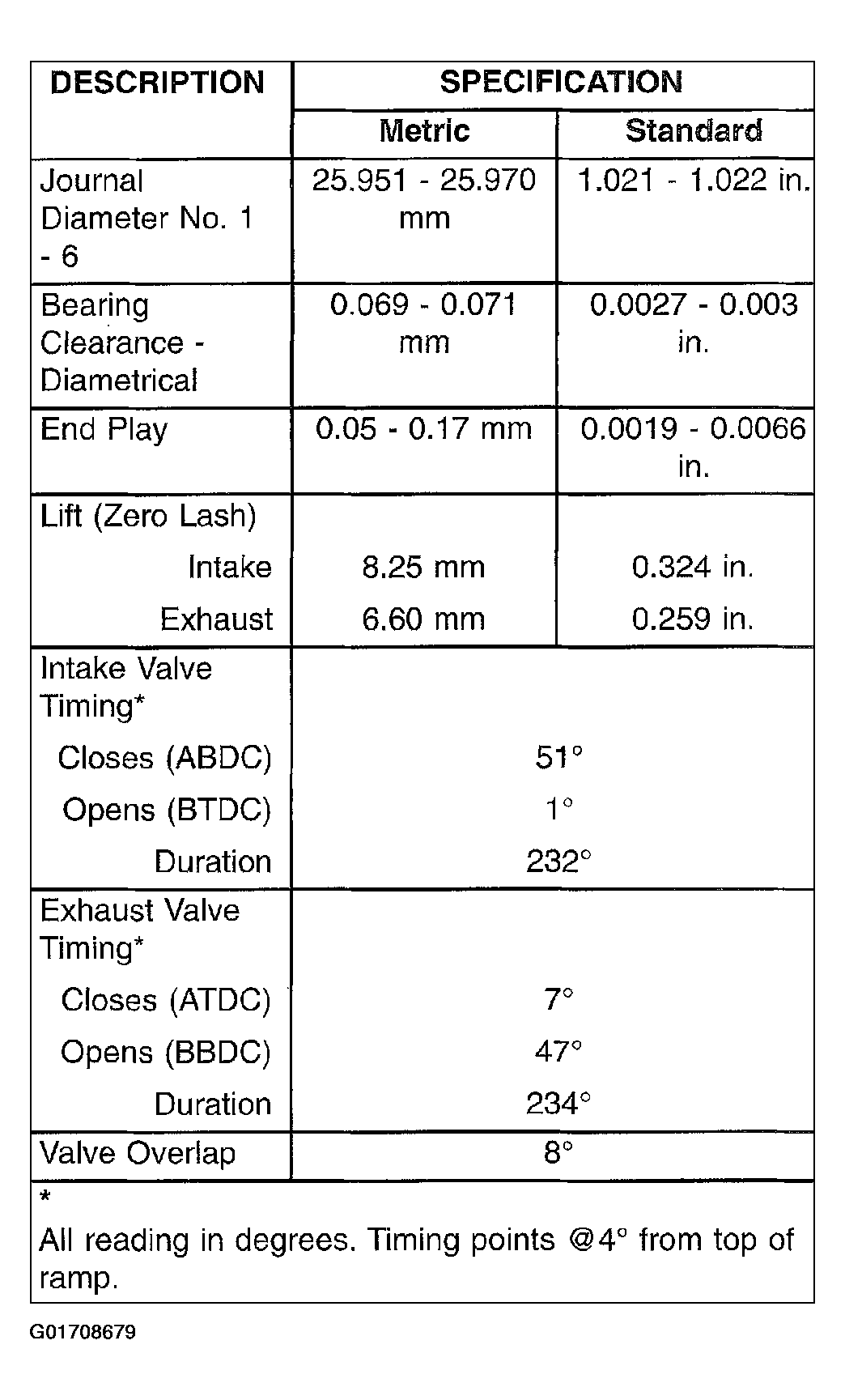

Fig 9: Identifying Camshaft Specifications

G01708679

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Cylinder Head Specifications

G01708680

Courtesy of DAIMLERCHRYSLER CORP.

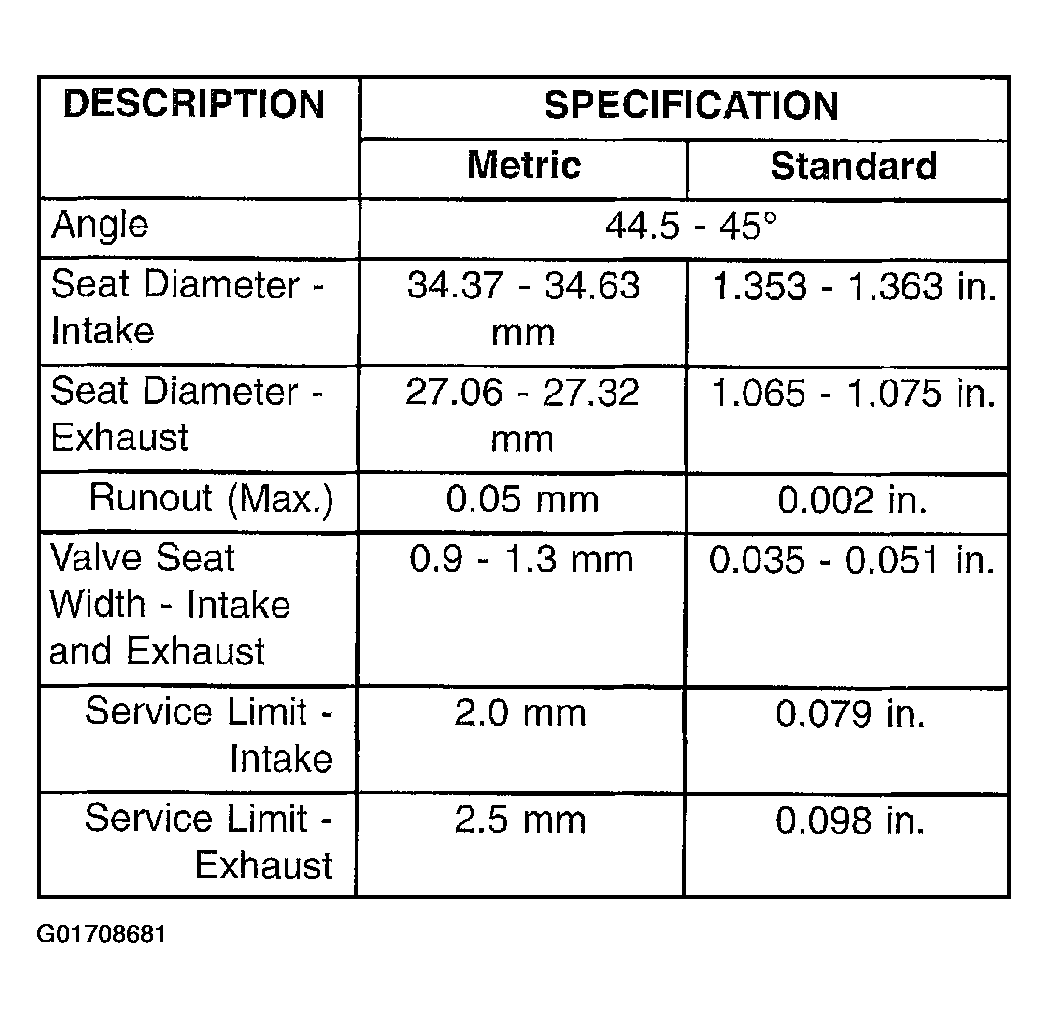

Fig 11: Identifying Valve Seat Specifications

G01708681

Courtesy of DAIMLERCHRYSLER CORP.

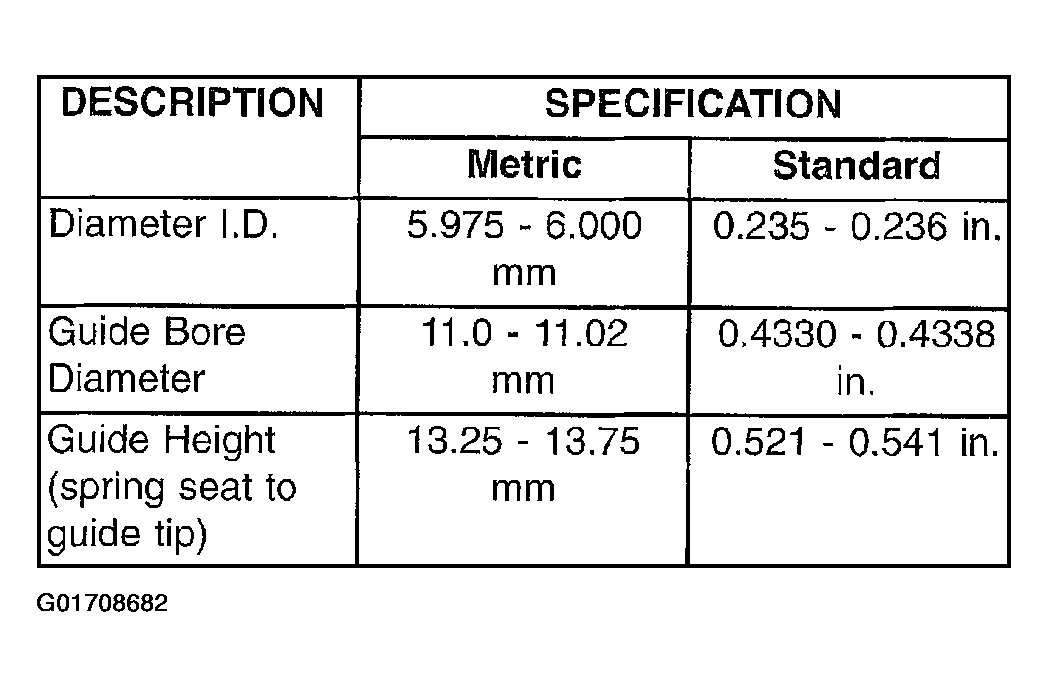

Fig 12: Identifying Valve Guide Specifications

G01708682

Courtesy of DAIMLERCHRYSLER CORP.

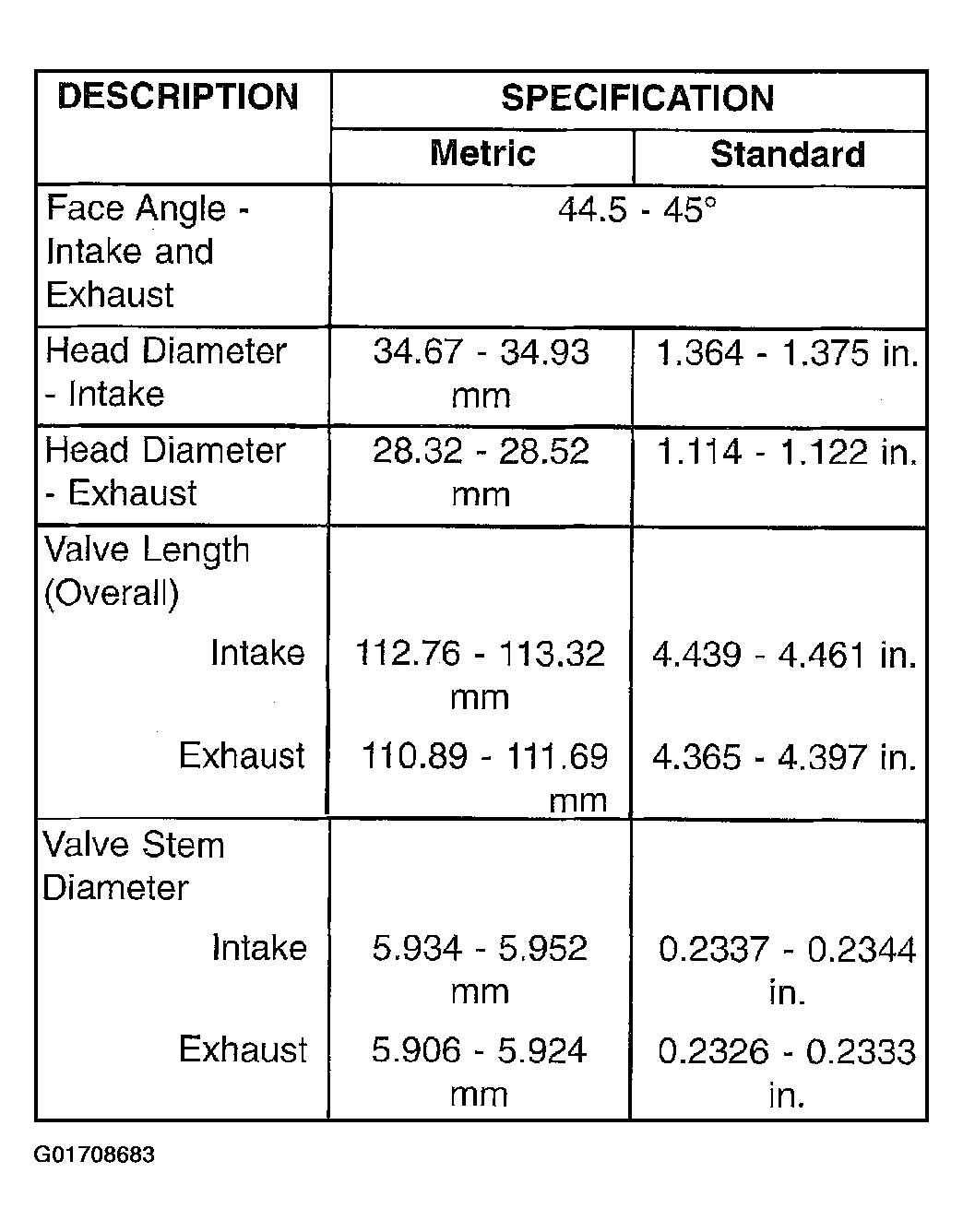

Fig 13: Identifying Valve Specifications

G01708683

Courtesy of DAIMLERCHRYSLER CORP.

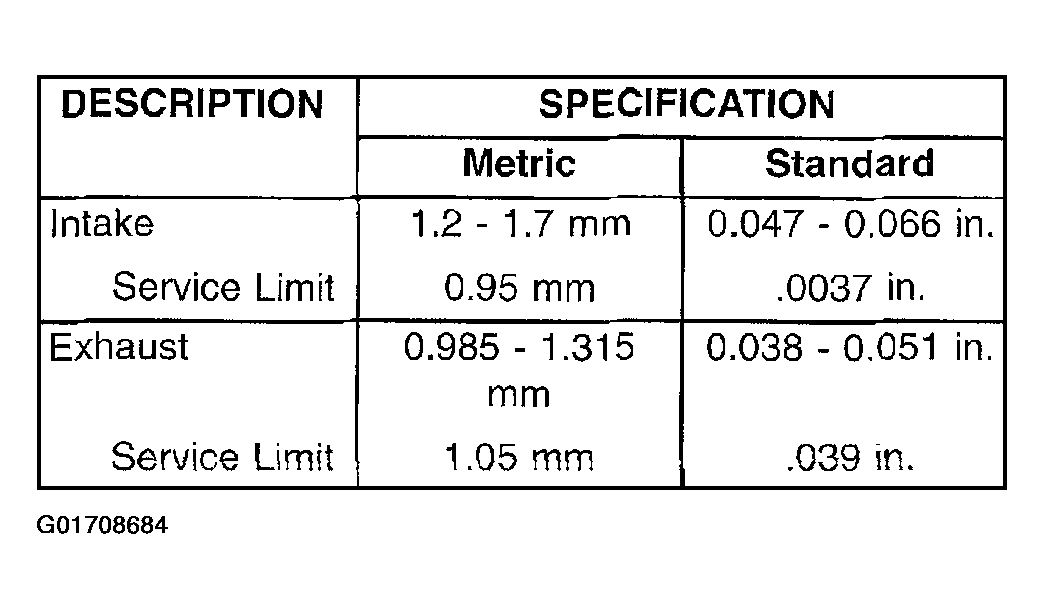

Fig 14: Identifying Valve Margin Specifications

G01708684

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Valve Stem Tip Specifications

G01708685

Courtesy of DAIMLERCHRYSLER CORP.

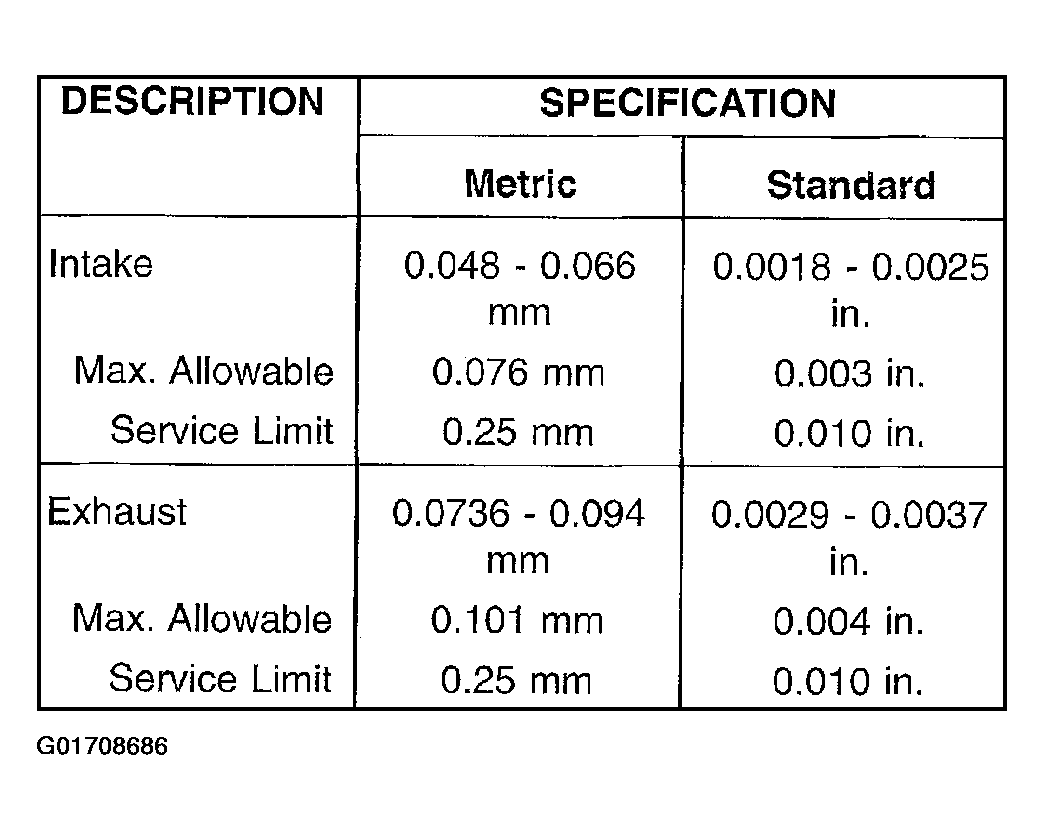

Fig 16: Identifying Valve Stem To Guide Clearance Specifications

G01708686

Courtesy of DAIMLERCHRYSLER CORP.

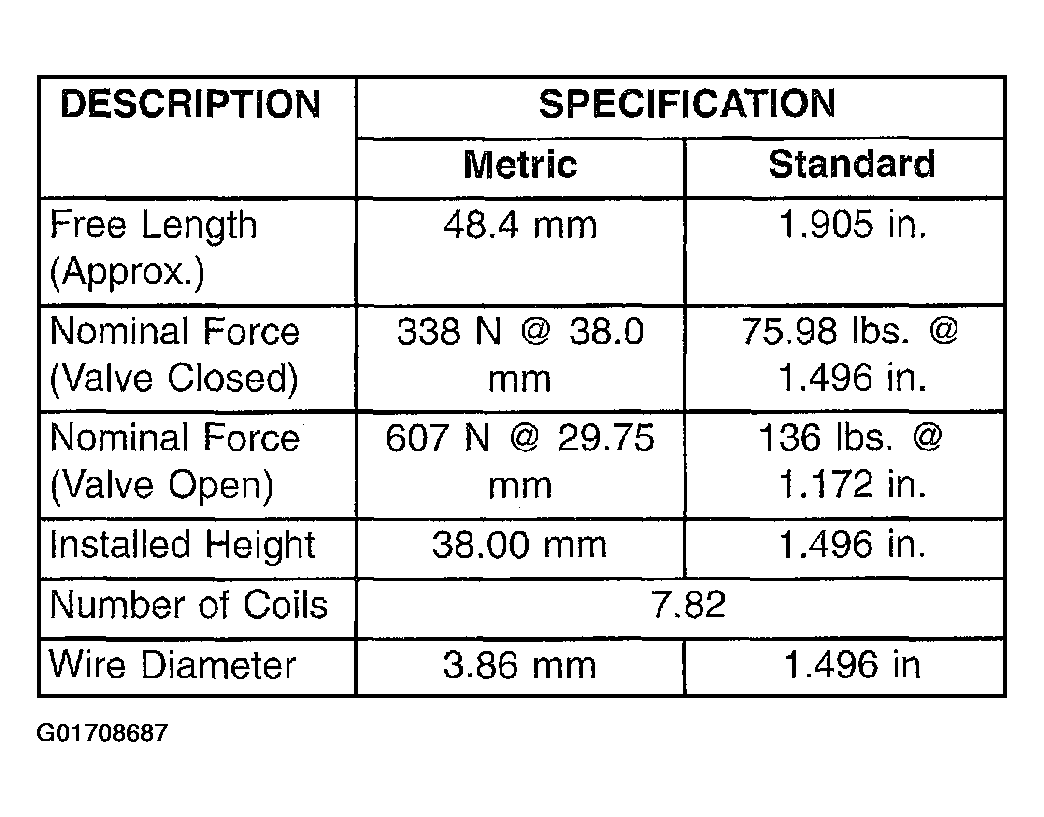

Fig 17: Identifying Valve Springs Specifications

G01708687

Courtesy of DAIMLERCHRYSLER CORP.

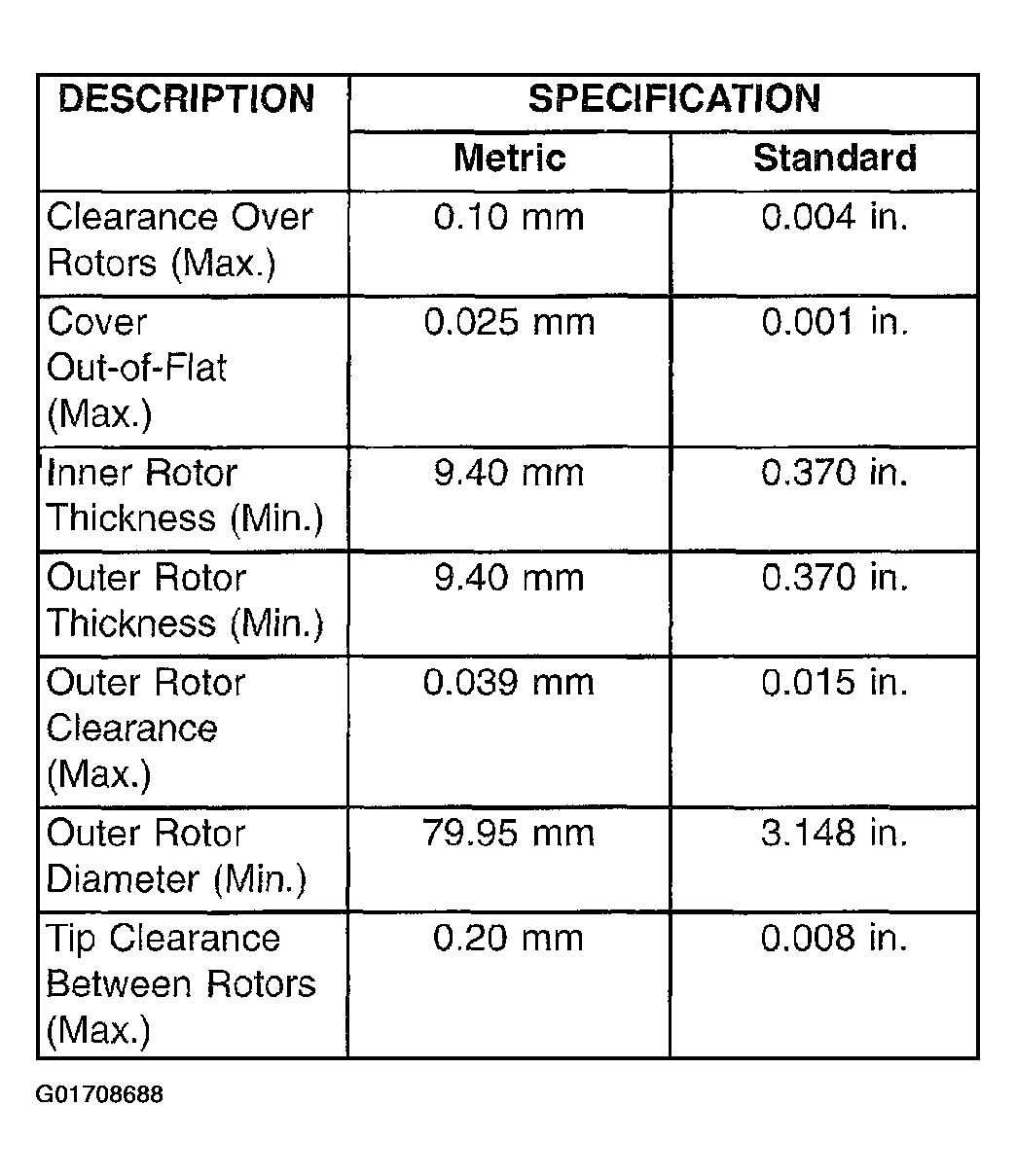

Fig 18: Identifying Oil Pump Specifications

G01708688

Courtesy of DAIMLERCHRYSLER CORP.

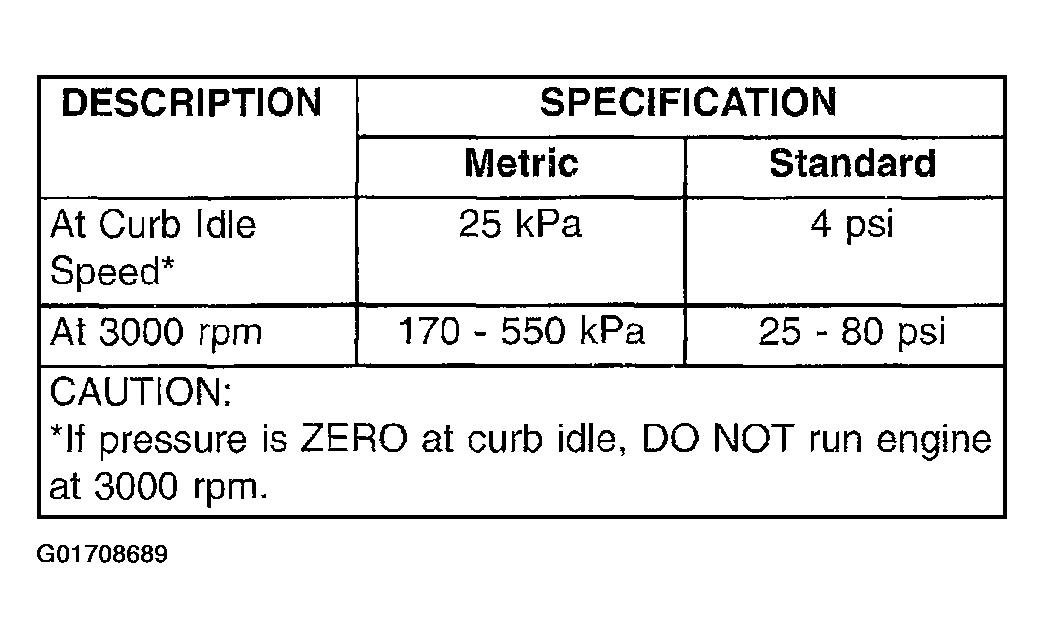

Fig 19: Identifying Oil Pressure Specifications

G01708689

Courtesy of DAIMLERCHRYSLER CORP.
