Intake Air Temperature Sensor Connector End View

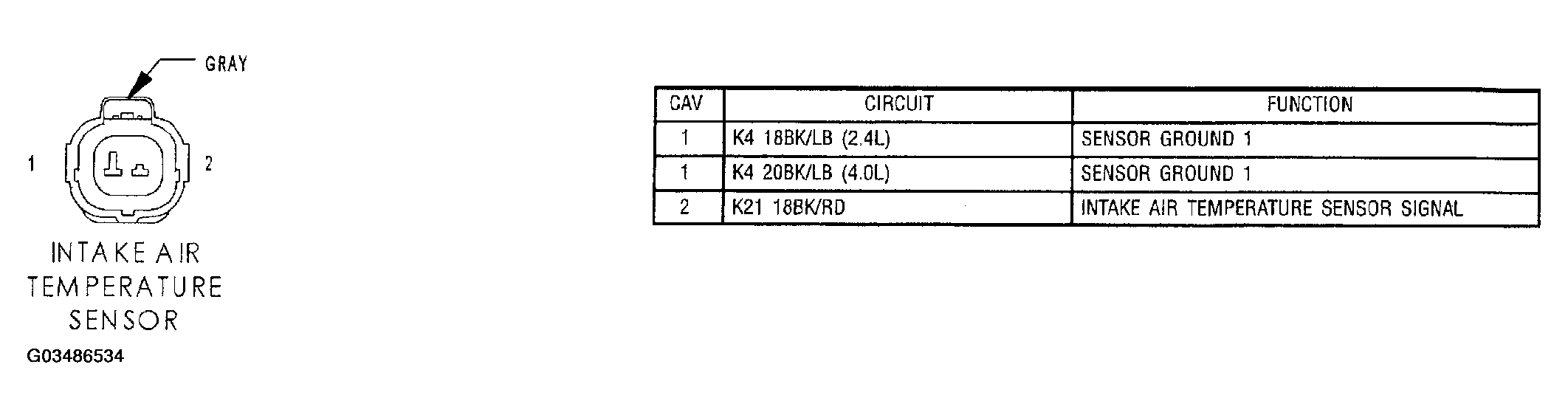

Fig 1: Intake Air Temperature Sensor Connector End View

G03486534

Courtesy of DAIMLERCHRYSLER CORP.
