Multi-Function Switch C1 Connector End View

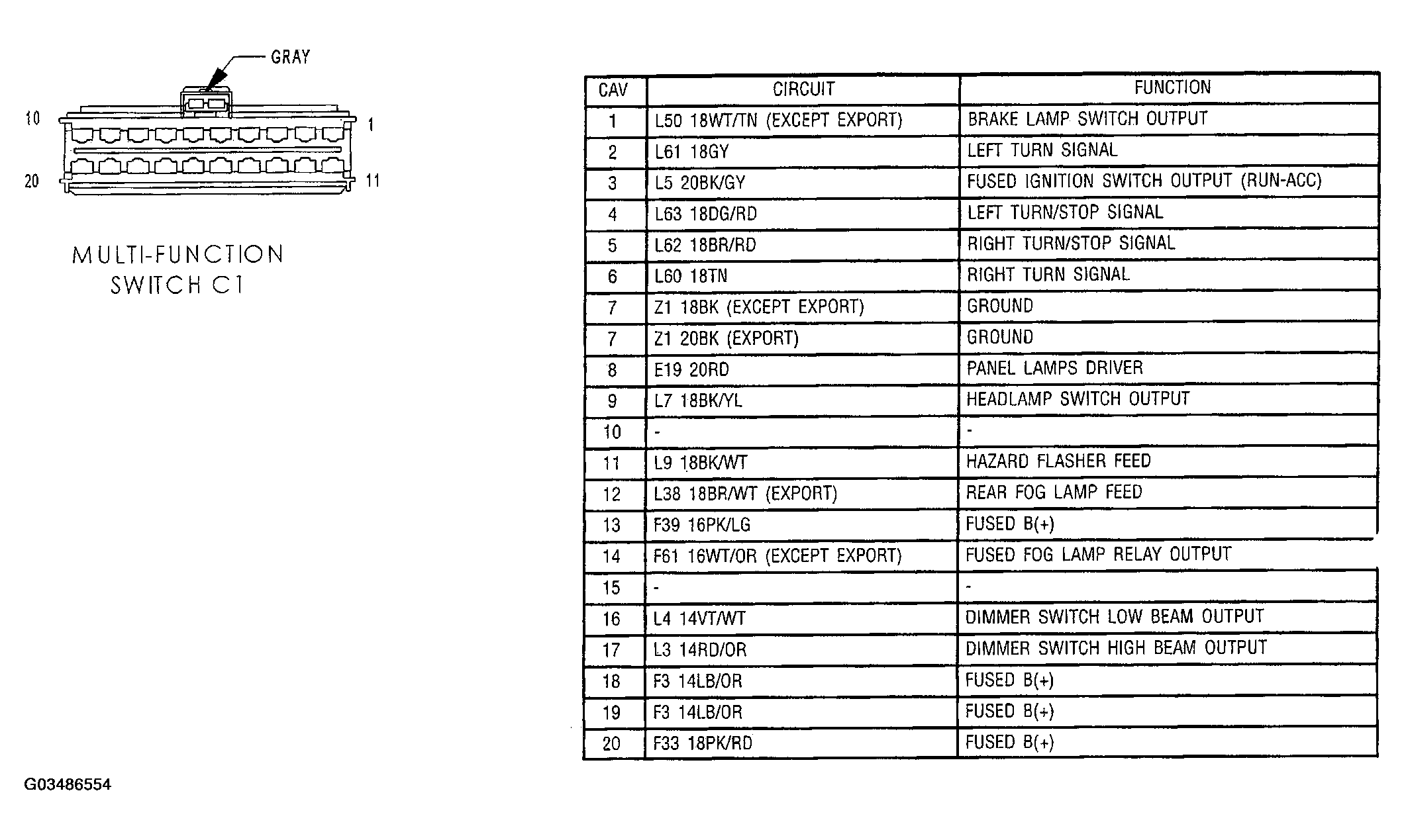

Fig 1: Multifunction Switch Connector End View (C1)

G03486554

Courtesy of DAIMLERCHRYSLER CORP.
