Powertrain Control Module C1 - 38 Way Connector End View

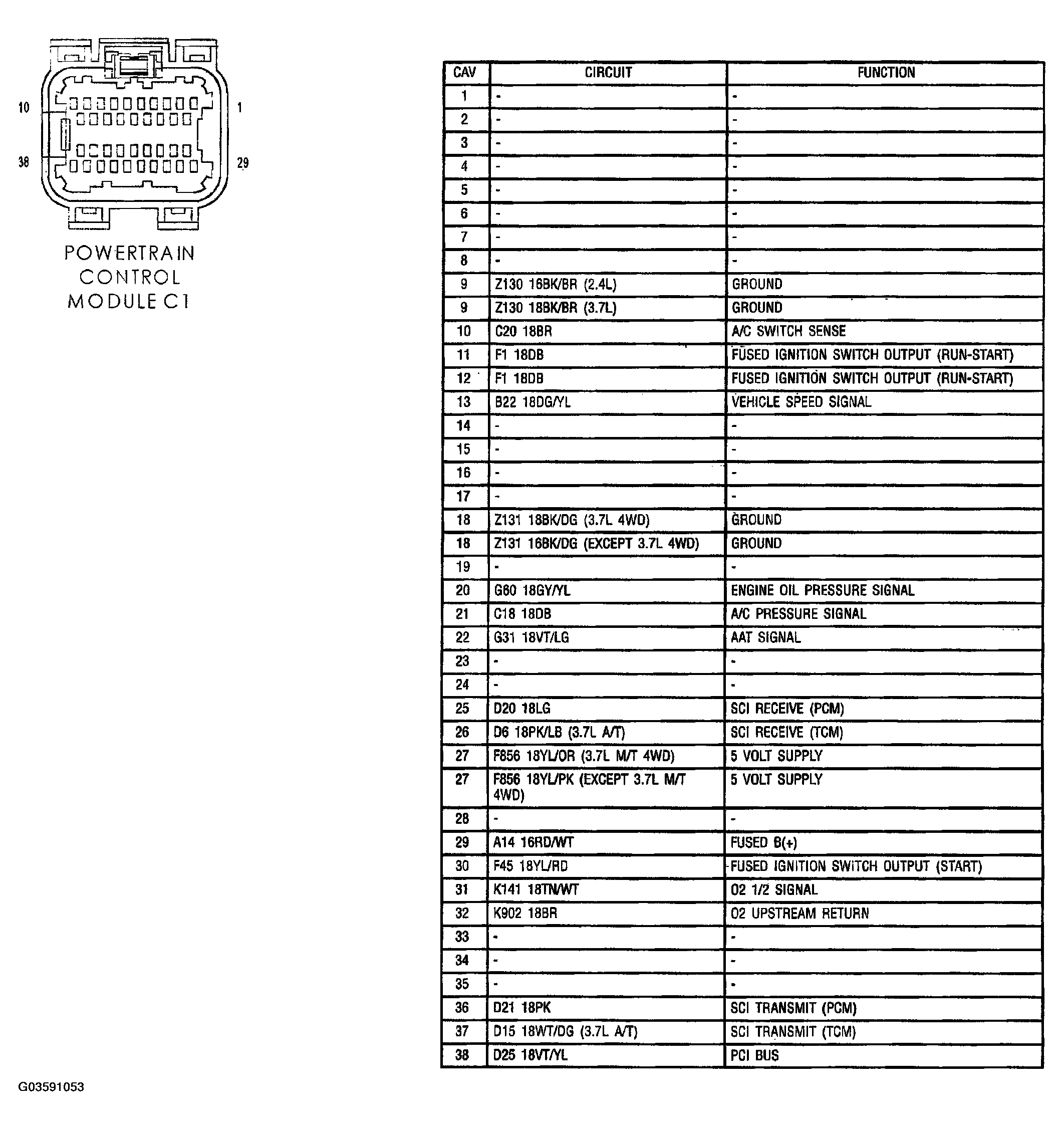

Fig 1: Powertrain Control Module Connector End View (C1)

G03591053

Courtesy of DAIMLERCHRYSLER CORP.
