Jacking & Hoisting: Hoist

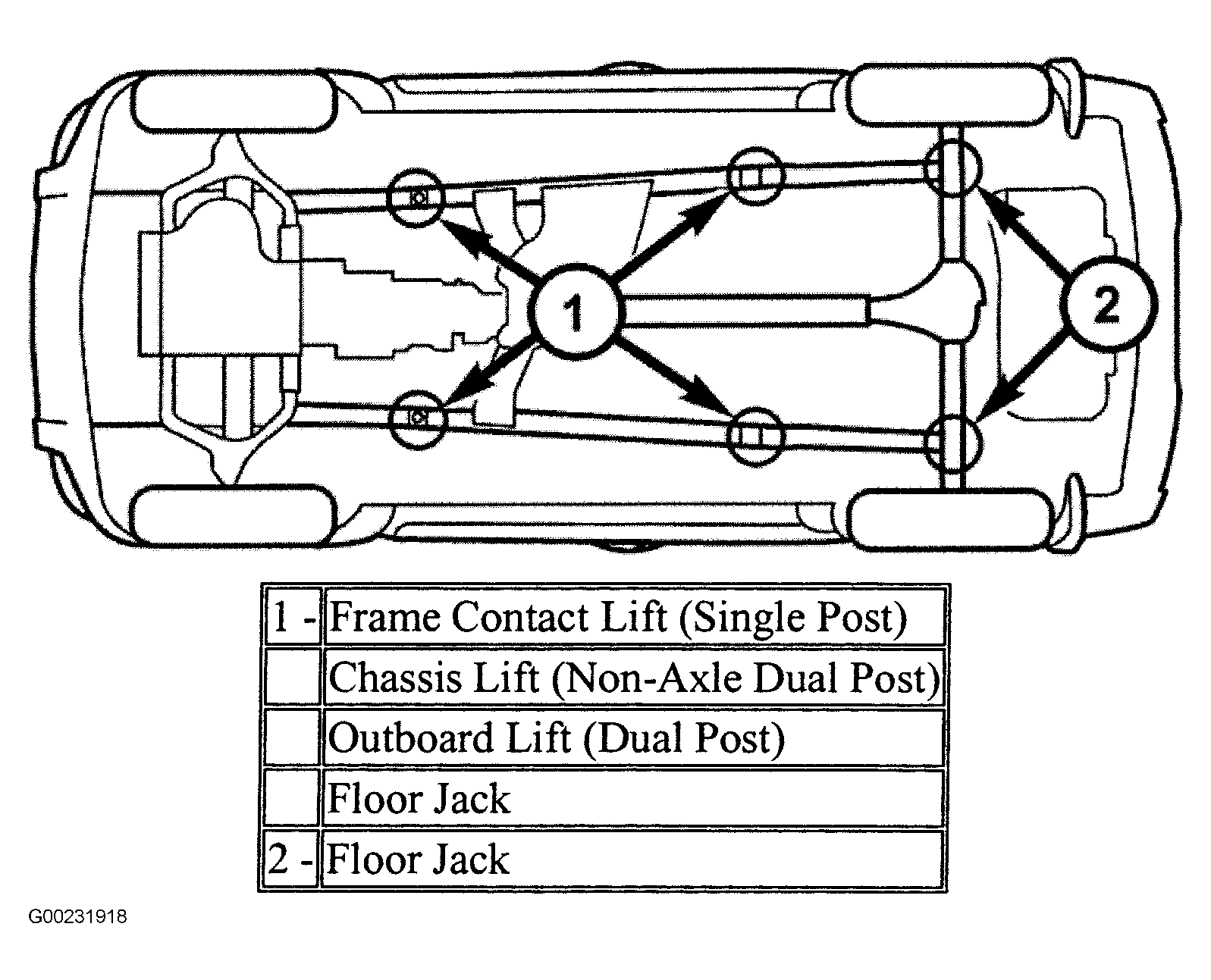

Vehicle may be raised on single or twin post swiveling arm, or ramp-type drive hoists. If using swiveling arm hoist, ensure lifting pads are positioned evenly at subframe lift points. See Fig 1 . All hoists should be equipped with proper adapters to support vehicle at frame rails only.
