Sentry Key Immobilizer Module (Except Base) - Black 6 Way Connector End View

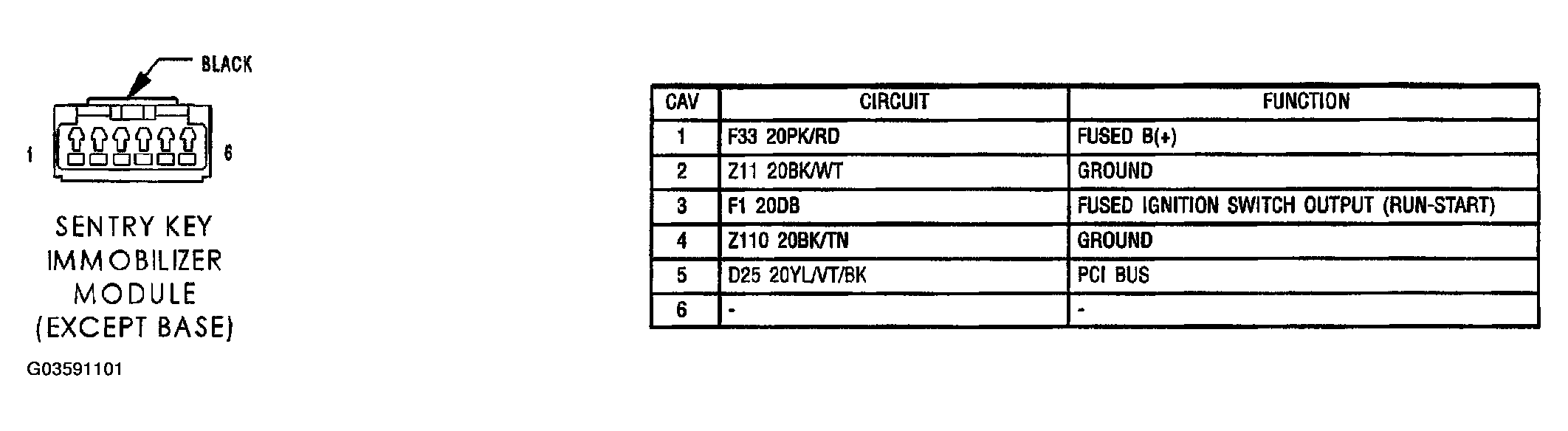

Fig 1: Sentry Key Immobilizer Module (Except Base) Connector End View
G03591101Courtesy of DAIMLERCHRYSLER CORP.
