Occupant Classification Module - 18 Way Connector End View

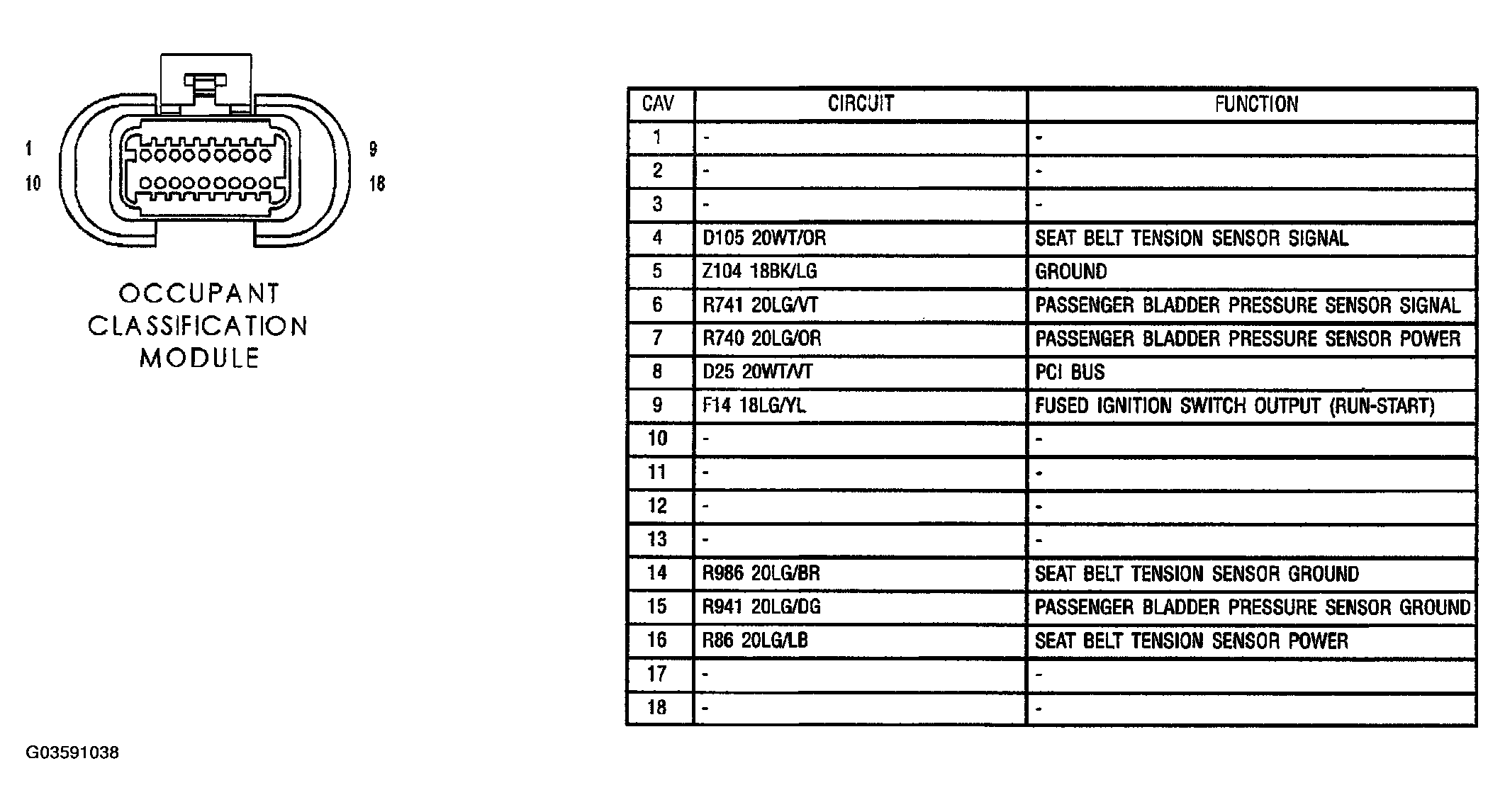

Fig 1: Occupant Classification Module Connector End View

G03591038

Courtesy of DAIMLERCHRYSLER CORP.
