Section 87 (Audio System): Radio: Removal

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel center trim panel.
  3. Remove the radio mounting screws (Fig 1 ).

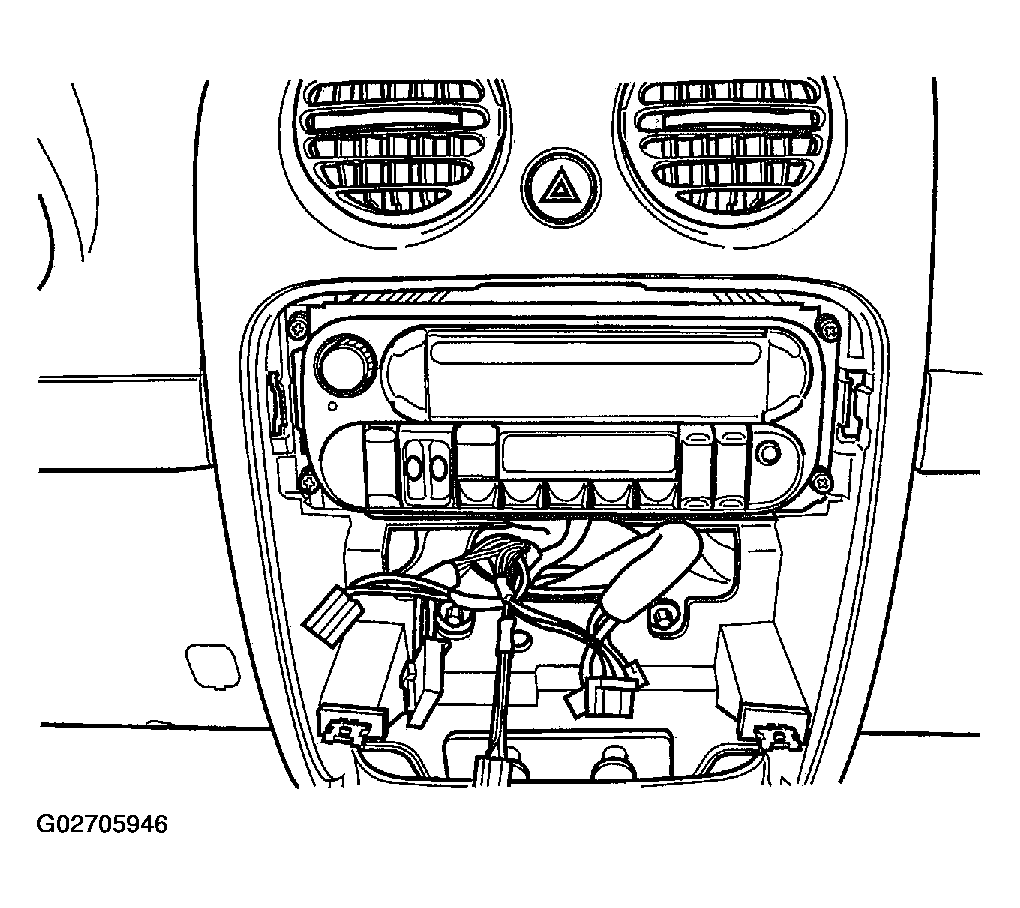

    Fig 1: Identifying Radio
    G02705946Courtesy of DAIMLERCHRYSLER CORP.
    CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
  4. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig 2 ).

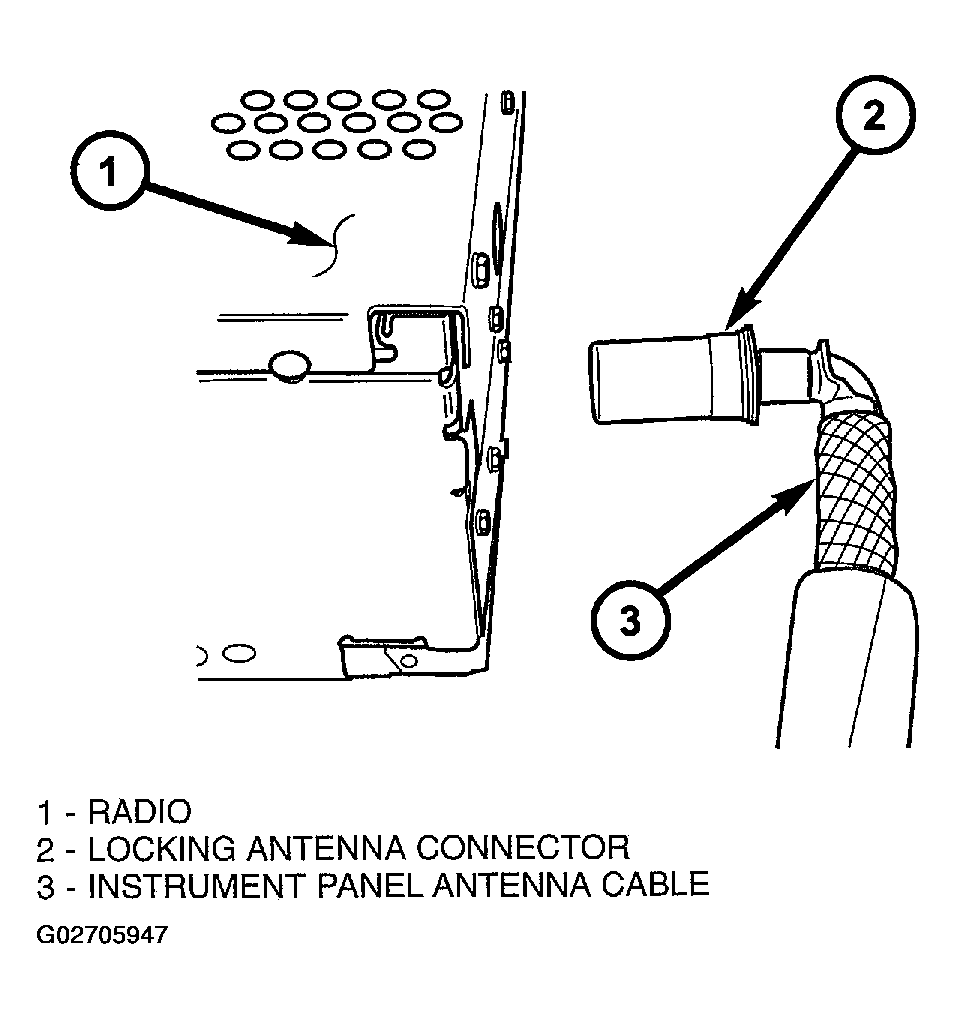

    Fig 2: Identifying Radio And Locking Antenna Connector
    G02705947Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the electrical harness connector(s).
  6. Remove radio from instrument panel.
