Section 120 (Audio System): Radio: Removal

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the center upper bezel from the instrument panel. (Refer to INSTRUMENT PANEL SYSTEM ).
  3. Remove the four screws that secure the radio receiver to the instrument panel (Fig 1).

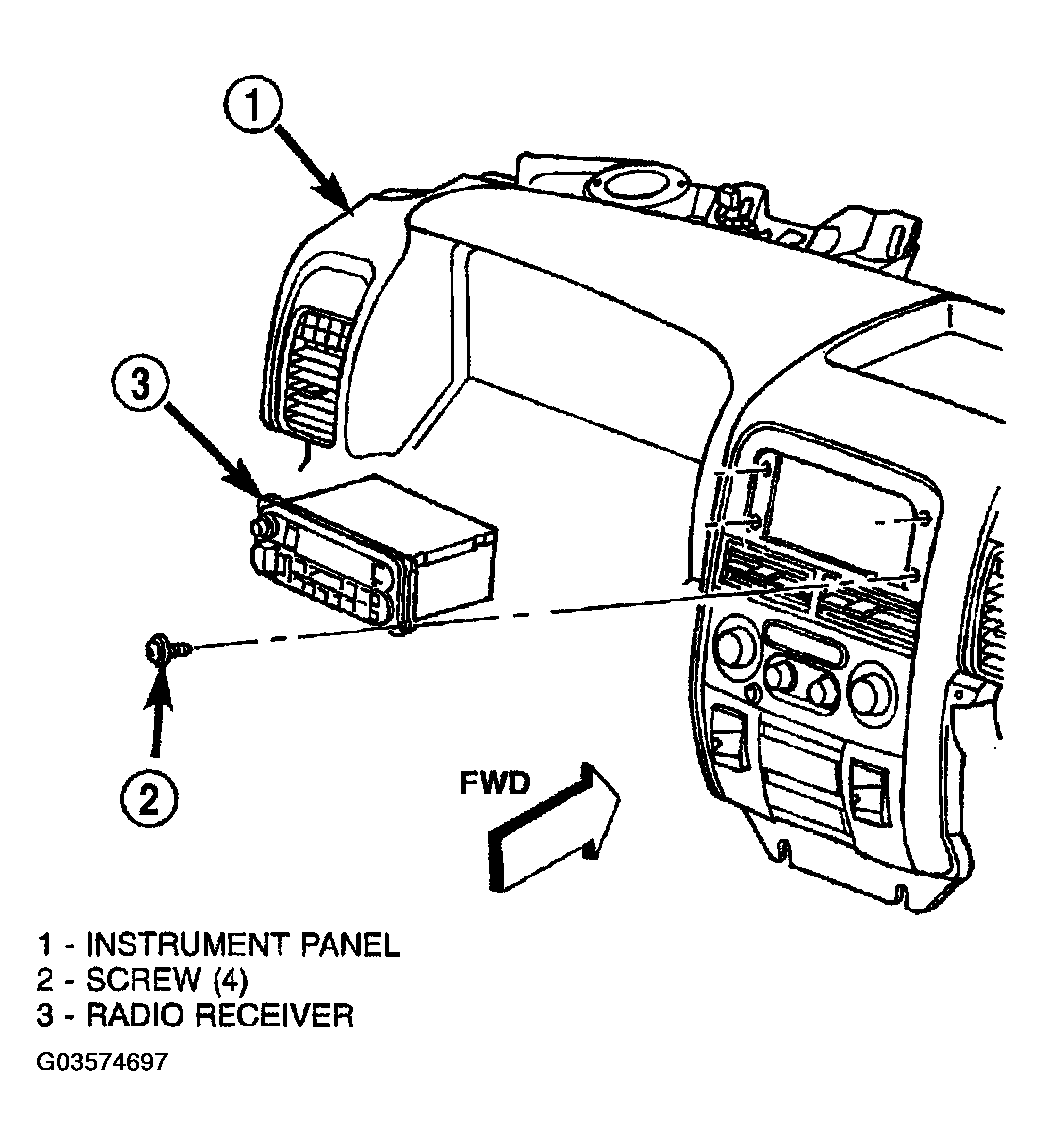

    Fig 1: Radio Remove/Install
    G03574697Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the instrument panel wire harness connector from the radio receiver.
    CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
  5. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig 2)

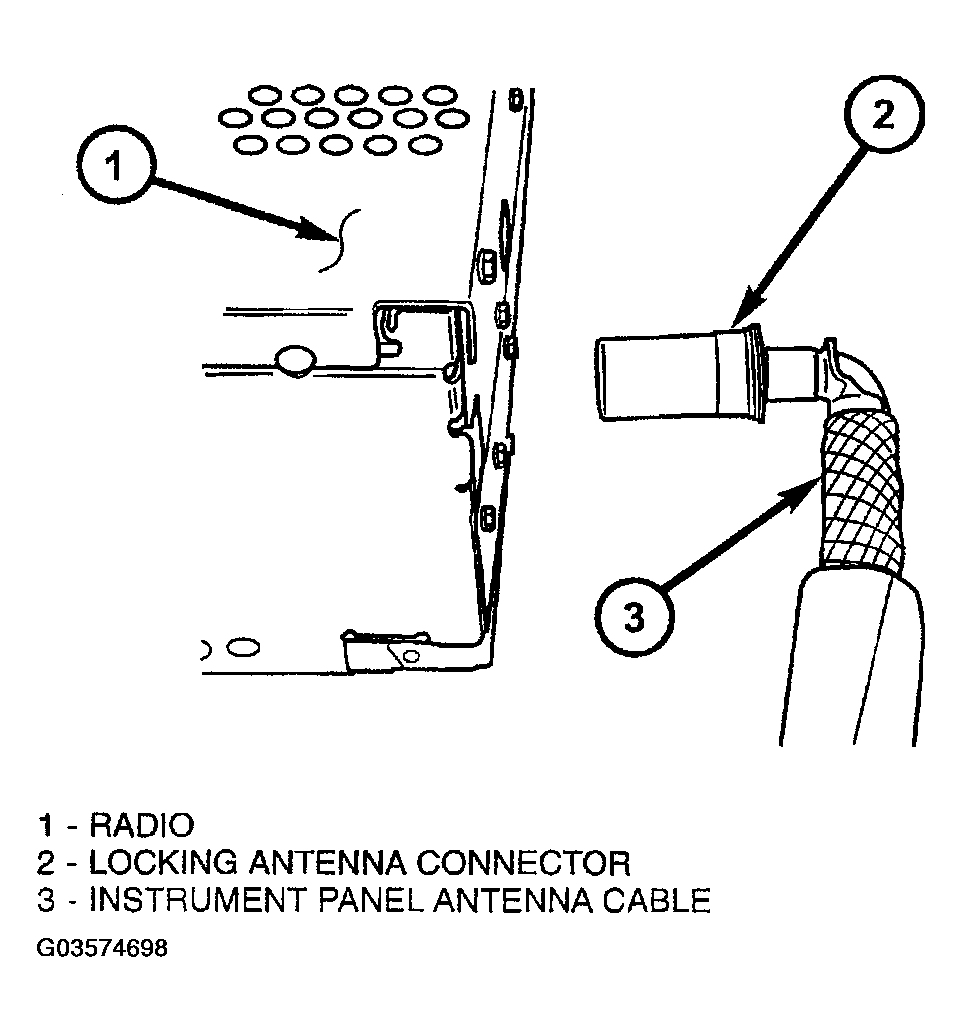

    Fig 2: Disconnecting Antenna Cable
    G03574698Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the radio receiver from the instrument panel.
